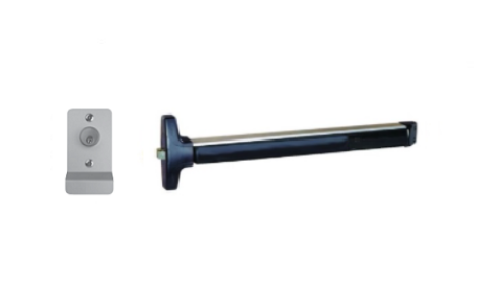

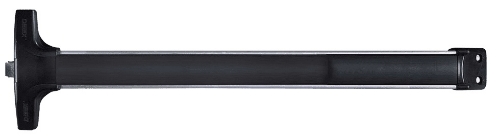

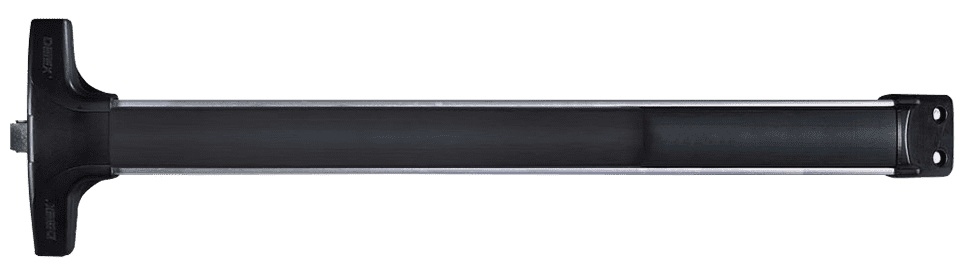

Detex V4003P HD, Rim Panic Exit Device Hex Dogging - with Night Latch Trim - 36" - No Alarm

Detex V4003P HD, Rim Panic Exit Device Hex Dogging - with Night Latch Trim - 36" - No Alarm

Product Details

Detex V4003P HD, Rim Panic Exit Device Hex Dogging - with Night Latch Trim - 36" - No Alarm**

Trim:03P - Key retracts latch*. * Rim cylinder not included (order separately).

36- Fits 36" Door Width.

Door Thickness: 1-3/4" - 2-1/4".

Finishes: 628 - Aluminum.

Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike.

Standard V40 Rim Device accommodates wide stile doors, 3" or greater stile, and flush doors. For Narrow Stile doors, 2" to 2 1/2" stiles add "NSK" Kit.

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners:Machine and Self-Drilling Screws

HD - Hex Dogging

Stainless steel, 3/4" deadlocking Pullman-type latch bolt 10 Year Mechanical - Limited Manufacturer's Warranty

Model:Detex, V4003PLD, V4003PLD628, V4003PLD711, V4003PLD6289836, V4003PLD6289848, V4003PLD6289936, V4003P LD 6289948, V40013LD711, V40013LD7119836, V40013LD7119936, V40LD7119948

Detex V4003P HD, Rim Panic Exit Device Hex Dogging - with Night Latch Trim - 36" - No Alarm

SKU: V4003PHD

In Stock

$401.28

About this item

The V40 Series Rim Exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Resources

https://www.detex.com/products/life-safety-security-door-hardware/value-series/

Detex V4003P HD, Rim Panic Exit Device Hex Dogging - with Night Latch Trim - 36" - No Alarm**

Trim:03P - Key retracts latch*. * Rim cylinder not included (order separately).

36- Fits 36" Door Width.

Door Thickness: 1-3/4" - 2-1/4".

Finishes: 628 - Aluminum.

Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike.

Standard V40 Rim Device accommodates wide stile doors, 3" or greater stile, and flush doors. For Narrow Stile doors, 2" to 2 1/2" stiles add "NSK" Kit.

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners:Machine and Self-Drilling Screws

HD - Hex Dogging

Stainless steel, 3/4" deadlocking Pullman-type latch bolt 10 Year Mechanical - Limited Manufacturer's Warranty

Model:Detex, V4003PLD, V4003PLD628, V4003PLD711, V4003PLD6289836, V4003PLD6289848, V4003PLD6289936, V4003P LD 6289948, V40013LD711, V40013LD7119836, V40013LD7119936, V40LD7119948

V4003P-1

Detex V4003P HD, Rim Panic Exit Device Hex Dogging - with Night Latch Trim - 36" - No Alarm

Product code: V4003PHD

In Stock

$401.28

$401.28

UL Listed Panic Hardware: UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of 4'x8' with F90KR keyed removable Mullion

Meets ADA requirements UBC 97, Standard 7-2 and UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101 for Life Safety

Miami-Dade County, Florida NOA 10-0303.02

State of Florida Approval FL9052 EXP. 04/07/15

California State Fire Marshall -4140-0127:105 and 3725-0127:108
