Detex V4009BN HD 628 99 Value Series Wide Stile Rim Exit Device, with Storeroom Lever Trim, Hex Dogging, 99 Surface Strike, Satin Aluminum Clear Anodized

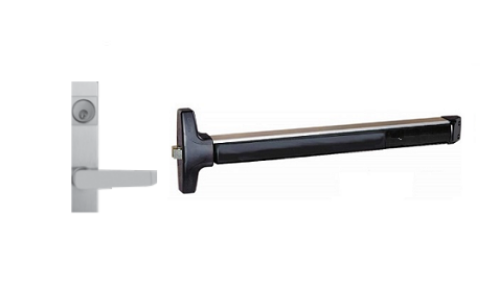

Picture of Detex V4009BN HD 628 99 Value Series Wide Stile Rim Exit Device, with Storeroom Lever Trim, Hex Dogging, 99 Surface Strike, Satin Aluminum Clear Anodized
Picture of Detex V4009BN HD 628 99 Value Series Wide Stile Rim Exit Device, with Storeroom Lever Trim, Hex Dogging, 99 Surface Strike, Satin Aluminum Clear Anodized
naxt
prev

Product Details

Detex V4009BN HD 628 99 Value Series Wide Stile Rim Exit Device, with Storeroom Lever Trim, Hex Dogging, 99 Surface Strike, Satin Aluminum Clear Anodized

09BN - Lever trim active by key, locked when key removed; narrow trim (handed) (storeroom) Mortise cylinder not included

HD - Hex Dogging

36 - Fits 36" Door Width 48 - Fits 48" Door Width

Door Thickness: 1-3/4" - 2-1/4".

Finishes: 628 - Aluminum 711 - Black

Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike.

Standard V40 Rim Device accommodates wide stile doors, 3" or greater stile, and flush doors.  For Narrow Stile doors, 2" to 2 1/2" stiles add "NSK" Kit.

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners:Machine and Self-Drilling Screws

Stainless steel, 3/4" deadlocking Pullman-type latch bolt 10 Year Mechanical - Limited Manufacturer's Warranty

Model: Detex, V4003BN HD, V4003BN HD628, V4003BN HD711, V4003BN HD6289836, V4003BN HD6289848, V4003BN HD6289936, V4003BN HD 6289948, V40013CD711, V40013CD7119836, V40013CD7119936, V40CD7119948

Detex V4009BN HD 628 99 Value Series Wide Stile Rim Exit Device, with Storeroom Lever Trim, Hex Dogging, 99 Surface Strike, Satin Aluminum Clear Anodized

SKU: V4009BN HD 628 99

In Stock

$607.05

Size *

Strike *

99 - Surface Strike (Std.)
99 - Surface Strike (Std.)

About this item

The V40 Series Rim Exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Detex V4009BN HD 628 99 Value Series Wide Stile Rim Exit Device, with Storeroom Lever Trim, Hex Dogging, 99 Surface Strike, Satin Aluminum Clear Anodized

09BN - Lever trim active by key, locked when key removed; narrow trim (handed) (storeroom) Mortise cylinder not included

HD - Hex Dogging

36 - Fits 36" Door Width 48 - Fits 48" Door Width

Door Thickness: 1-3/4" - 2-1/4".

Finishes: 628 - Aluminum 711 - Black

Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike.

Standard V40 Rim Device accommodates wide stile doors, 3" or greater stile, and flush doors.  For Narrow Stile doors, 2" to 2 1/2" stiles add "NSK" Kit.

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners:Machine and Self-Drilling Screws

Stainless steel, 3/4" deadlocking Pullman-type latch bolt 10 Year Mechanical - Limited Manufacturer's Warranty

Model: Detex, V4003BN HD, V4003BN HD628, V4003BN HD711, V4003BN HD6289836, V4003BN HD6289848, V4003BN HD6289936, V4003BN HD 6289948, V40013CD711, V40013CD7119836, V40013CD7119936, V40CD7119948

Picture of Detex V4009BN HD 628 99 Value Series Wide Stile Rim Exit Device, with Storeroom Lever Trim, Hex Dogging, 99 Surface Strike, Satin Aluminum Clear Anodized
Detex V4009BN HD 628 99 Value Series Wide Stile Rim Exit Device, with Storeroom Lever Trim, Hex Dogging, 99 Surface Strike, Satin Aluminum Clear Anodized

Product code: V4009BN HD 628 99

In Stock

$607.05

$607.05

UL Listed Panic Hardware: UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of 4'x8' with F90KR keyed removable Mullion

Meets ADA requirements UBC 97, Standard 7-2 and UL10C for positive pressure

ANSI/BHMA certified A156.3

Meets NFPA 80 & 101 for Life Safety

Miami-Dade County, Florida NOA 10-0303.02

State of Florida Approval FL9052 EXP. 04/07/15

California State Fire Marshall -4140-0127:105 and 3725-0127:108
