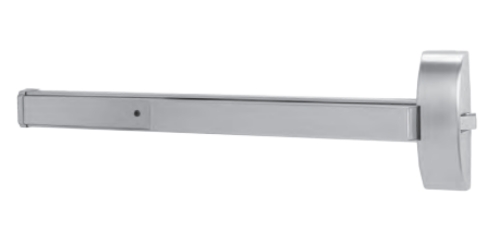

Dormakaba 9300A Rim Panic Exit Device - 48" Length - Exit Only

About this item

The dormakaba 9300A is a Grade 1 wide stile rim panic exit device with a 48-inch touchbar, built for Exit Only applications on single doors. It's part of dormakaba's 9000 Series, the brand's heavy-duty exit device line designed for high-impact environments including schools, universities, hospitals, government buildings, and high-traffic commercial facilities. This product was previously sold under the Dorma brand name before the Dorma and Kaba merger created dormakaba, so it also appears in specifications as Dorma 9300A and Dorma 9000 Series exit device.

The 9300A fits the 48-inch bar category, designed for doors 37 to 48 inches wide. The companion 9300B handles 36-inch applications for doors 24 to 36 inches wide.

What Makes the 9300 Series a Heavy-Duty Exit Device

The 9000 Series uses a heavy-duty cast chassis construction, not a stamped steel body. That distinction matters in high-abuse environments where standard exit devices fail within a few years. The smooth reduced projection touchbar assembly keeps the touchbar profile low, which cuts down on catch hazards in busy corridors and hallways where carts, equipment, and people are moving through regularly.

The partial-length touchpad design allows field installation of options like cylinder dogging or an exit alarm after the device is already mounted. You don't need to pull the unit to upgrade it. That's a real-world advantage on institutional projects where requirements change or budgets get added in phases.

Certifications and Code Compliance

The dormakaba 9300A meets ANSI/BHMA A156.3 Grade 1. It's UL and CUL listed, conforming to UL10C for fire doors, and complies with NFPA 101 Life Safety Code egress requirements. These are the certifications required on commercial exit device hardware schedules for building permit submissions across most jurisdictions. Panic hardware (as opposed to fire exit hardware) is the correct rating when the opening is not a fire-rated door. If your opening requires a fire-rated device, the F9300A is the fire-rated equivalent of this model.

Physical Specifications

Bar length: 48 inches, for doors 37 to 48 inches wide. Door thickness: standard 1-3/4" to 2-1/4". Minimum stile width: 4-1/2". Latch type: deadlocking. The device installs on wood and steel doors. Rail material is compatible with both. Touchbar, rail, latch bolt covers, and end cap are all fabricated and finished in true base metal, meaning the finish is consistent throughout the material and not a coating over a different substrate.

The device is non-handed. Rim devices and all associated trim can be installed on left-hand and right-hand doors without modification, which simplifies ordering on projects with mixed door hands.

Hex key dogging is included on non-listed units. This allows the latch to be retracted and held open during business hours, converting the door to free swing without removing hardware.

Standard Strike No. 463 ships with the unit.

9300A vs F9300A: Panic vs Fire Exit Hardware

The 9300A is a panic-rated exit device for non-fire-rated openings. The F9300A is UL-cUL fire rated for fire-door openings and carries the fire exit hardware listing. Specifying the wrong rating is a code violation on fire-rated openings, so confirm the door's fire rating before ordering.

Finishes Available

630 Satin Stainless Steel, 689 Aluminum, 693 Black Painted, 695 Sprayed Bronze.

Warranty and Sourcing

The dormakaba 9300A carries a 10-year limited mechanical warranty. American Locksets is an authorized dormakaba dealer and has supplied commercial exit hardware since 2001.
