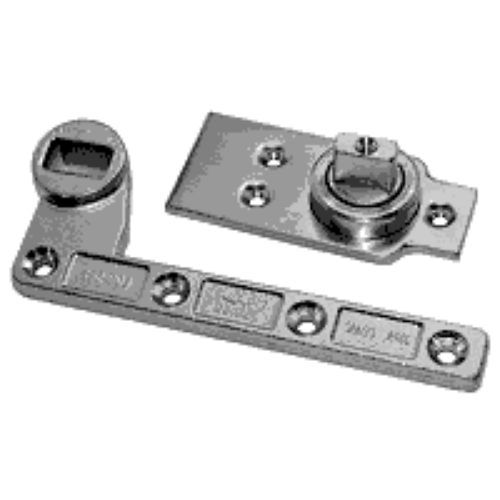

Dormakaba OP440 3/4" Offset Pivot Set - Satin Chrome (626)

Dormakaba* OP440 3/4"Offset Pivot Set -Satin Chrome (626)*

Technical Details

.3/4" offset pivot set.

. For wood, steel or aluminum door and frame weight to 440 lbs. door width up to 4'-0".

. Pivots standard design includes needle bearings with hardened pins for durability and long life.

. Pivots and pivot sets furnished standard with all machine screws. Half or all wood screw options available.

Certification

. The DORMA LM Series is listed by UL and CUL under their continuing reinspection programs. . The LM Series is certified to the requirements of ANSI/BHMA A156.4.

Model:DormaOP440, OP440626

Specifications

DORMA’s LM Series pivots are produced from brass or steel for interior and exterior non-rated and fire-rated doors. Top pivots and bottom arms will be center hung, 3/4" or 1-1/2" offset. Intermediate pivots will be 3/4" or 1-1/2" offset. Side jamb bottom pivot will be 3/4" offset. Top and intermediate pivots will be full mortise configurations. Bottom arms and side jamb pivot will be mortised. Pivots can be substituted within a pivot set, assuming the offset is the same. Offset 3/4" and 1-1/2" top pivots are available for doors that are inset 1/8" from the frame face while standard intermediate and bottom arms are templated accordingly. Center hung pivots will accommodate double-acting and single-acting doors. Center hung single-acting doors will use an applied stop. Pocket pivots will accommodate doors opening90? that must be flush with an adjacent wall. All pivots and pivot sets will incorporate needle bearings and lubricated hardened steel pivot pins treated to prevent corrosion. All pivots and pivot sets will be available in a variety of finishes.
