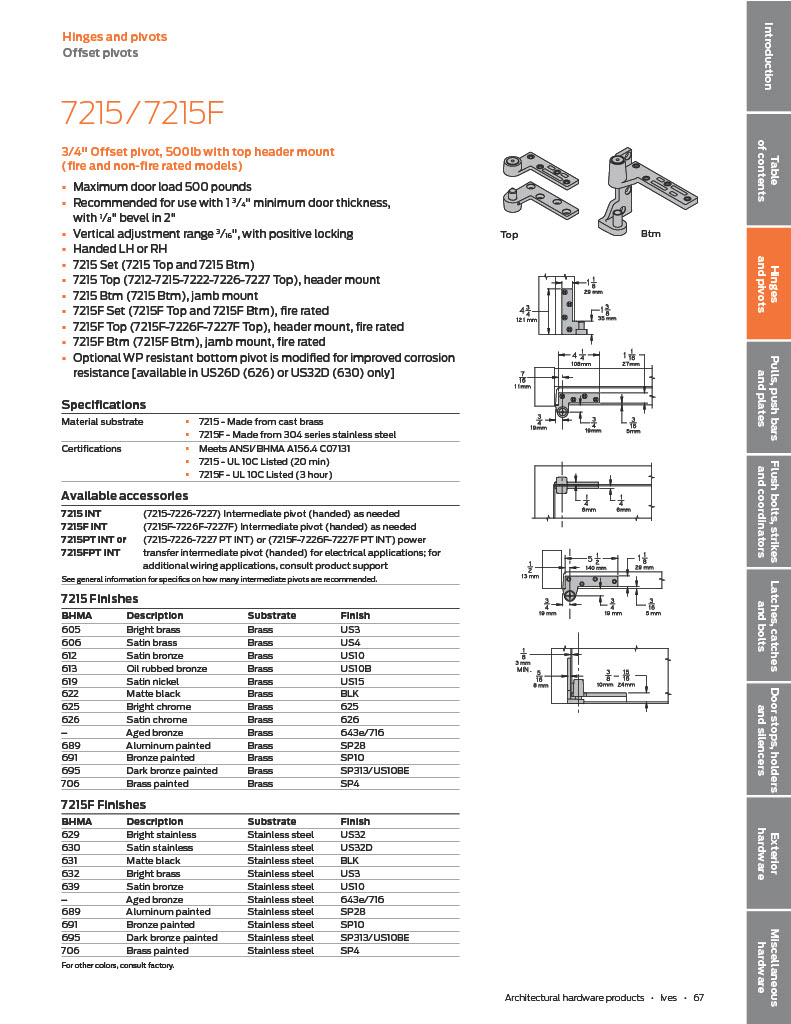

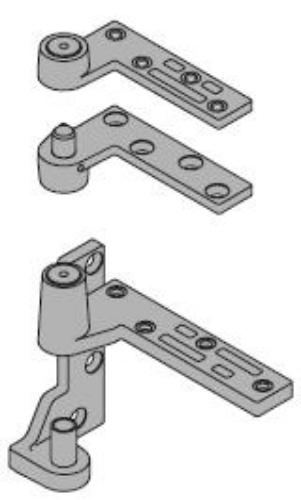

Ives 7215F-SET, 3/4" Offset Fire Rated Pivot Set

**Ives 7215F SET, 3/4" Offset Fire Rated Pivot Set

7215F - UL Listed 3 hour fire doors

**Handed

Top, header mount

Bottom, jamb mount

Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"

Maximum door load 500 pounds

Vertical adjustment range 3/16", with positive locking

Model:Ives 7215F-SET, 7215FSET, 7215FSETSP28, 7215FSETSP313, 7215FSETSP10, 7215FSETSPBLK, 7215FSETSP28RH, 7215FSETSP313RH, 7215FSETSP28LH, 7215FSETSP313LH, 7215FSETUS10, 7215FSETUS32, 7215FSETUS32D, 7215FSETUS3, RH, LH. 7215F SET SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, SPBLK - Black Painted, SP10 - Light Bronze Painted, US10 - Satin Bronze, US32 - Bright Stainless Steel, US32D - Satin Stainless Steel, US3 - Bright Brass RH, LH. Right or Left hand
