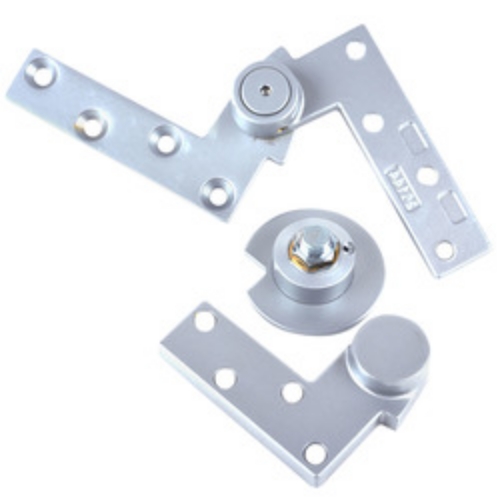

Ives 7222-SET 3/4" Offset Pivot Set

7222SETRHUS26D

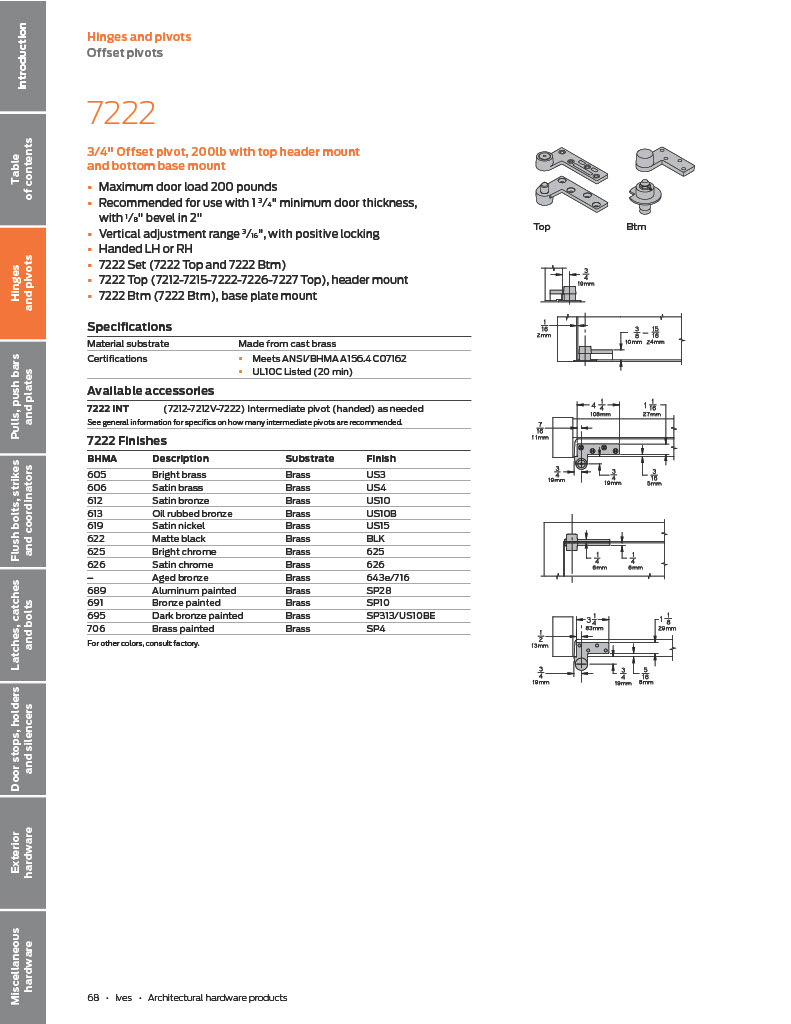

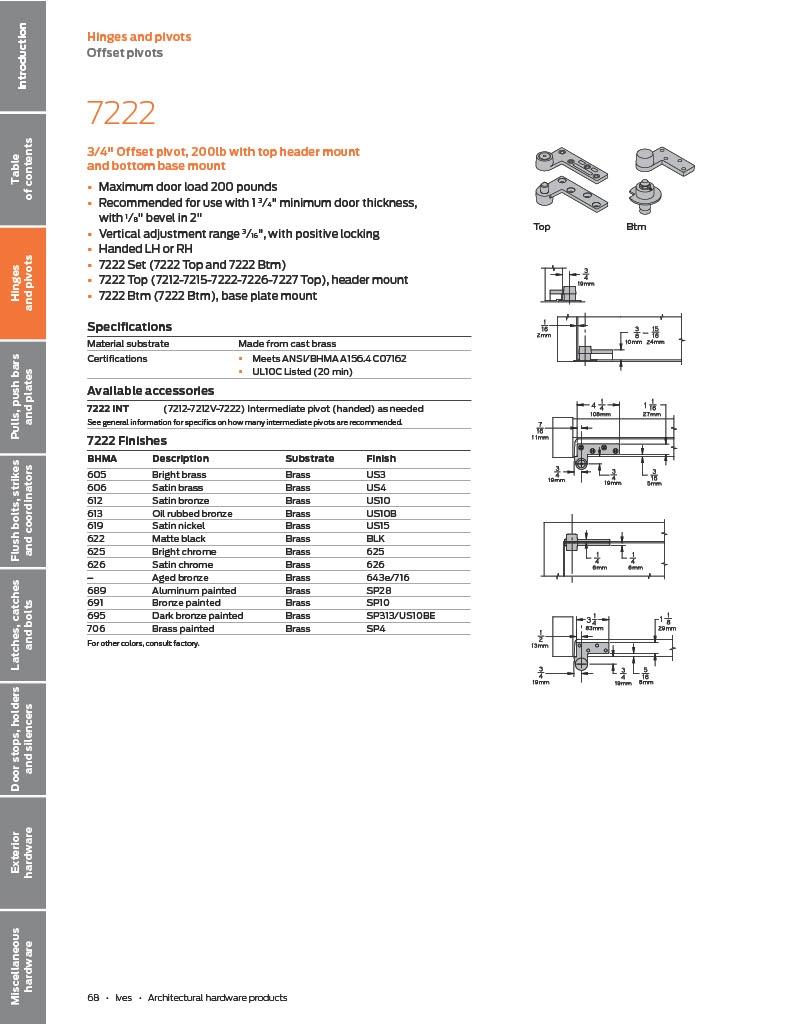

1-Page68-IVES-ARC
1-Page1-FINISHESCHART
7222SETRHUS26D
1-Page68-IVES-ARC
1-Page1-FINISHESCHART
naxt
prev

Product Details

Ives 7222 SET, 3/4" Offset Pivot Set

Handed

Top, header mount

Bottom, base plate mount

Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"

Maximum door load 200 pounds

Vertical adjustment range 3/16", with positive locking

Model:Ives 7222-SET, 7222SET, 7222SETSP28, 7222SETSP313, 7222SETSP28RH, 7222SETSP313RH, 7222SETSP28LH, 7222SETSP313LH, 7222SETUS10, 7222SETUS26D, 7222SETUS3, RH, LH. 7222 SET SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, US10 - Satin Bronze, US26D - Satin Chrome, US3 - Bright Brass, RH, LH. Right or Left hand

Ives 7222-SET 3/4" Offset Pivot Set

SKU: 7222

In Stock
icon Chat
Picture for manufacturer Ives

Finish *

Handing *

$220.53

About this item

Meets ANSI/BHMA A156.4 C07162

Resources

Ives 7222 SET, 3/4" Offset Pivot Set

Handed

Top, header mount

Bottom, base plate mount

Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"

Maximum door load 200 pounds

Vertical adjustment range 3/16", with positive locking

Model:Ives 7222-SET, 7222SET, 7222SETSP28, 7222SETSP313, 7222SETSP28RH, 7222SETSP313RH, 7222SETSP28LH, 7222SETSP313LH, 7222SETUS10, 7222SETUS26D, 7222SETUS3, RH, LH. 7222 SET SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, US10 - Satin Bronze, US26D - Satin Chrome, US3 - Bright Brass, RH, LH. Right or Left hand

7222SETRHUS26D
Ives 7222-SET 3/4" Offset Pivot Set

Product code: 7222

In Stock

$386.90

$220.53

7222SETRHUS26D
Ives 7222-SET 3/4" Offset Pivot Set

Product code: 7222

In Stock

$386.90

$220.53
