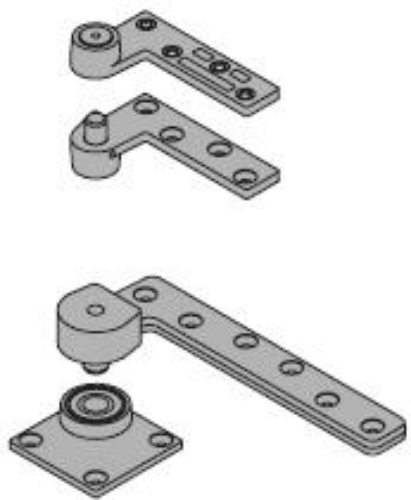

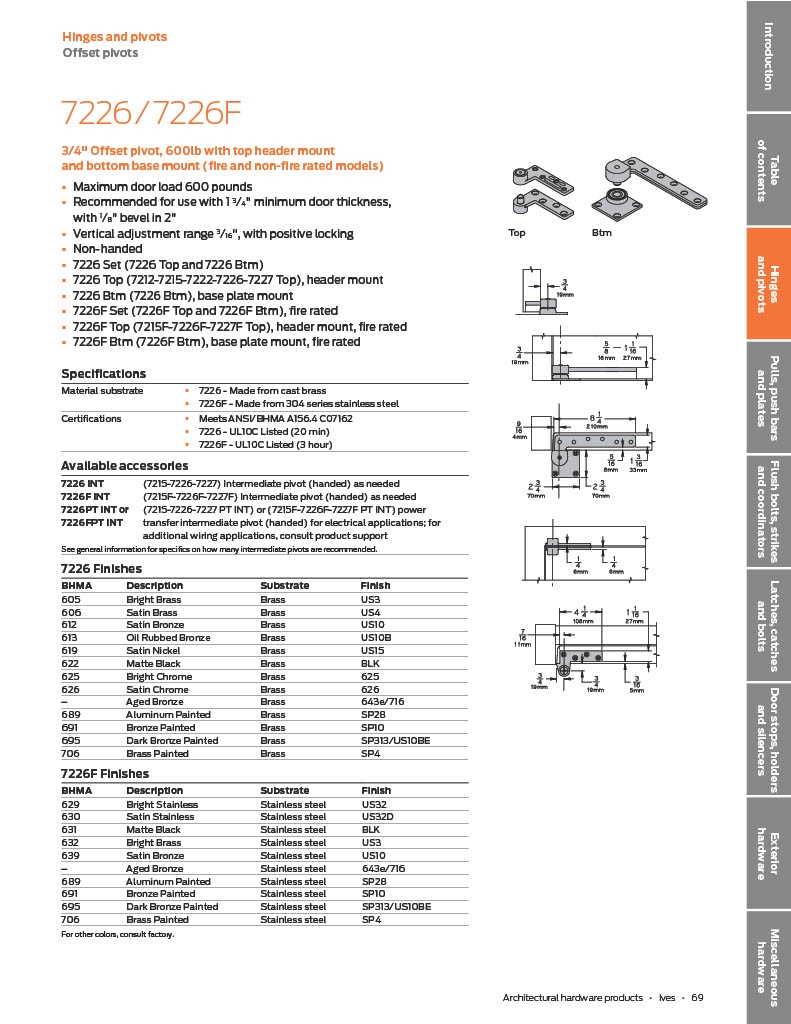

Ives 7226F-SET, 3/4" Offset Fire Rated Pivot Set

Ives 7226F SET, 3/4" Offset Fire Rated Pivot Set

**7226F - UL Listed 3 hour fire doors

**Non-handed

Top, header mount

Bottom, base plate mount

Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"

Maximum door load 600 pounds

Vertical adjustment range 3/16", with positive locking

Model:Ives 7226F-SET, 7226FSET, 7226FSP28, 7226FSP313, 7226FSPBLK, 7226FSP28RH, 7226FSP313RH, 7226FSP28LH, 7226FSP313LH, RH, LH. 7226F SET SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, SPBLK - Black Painted, Right or Left hand
