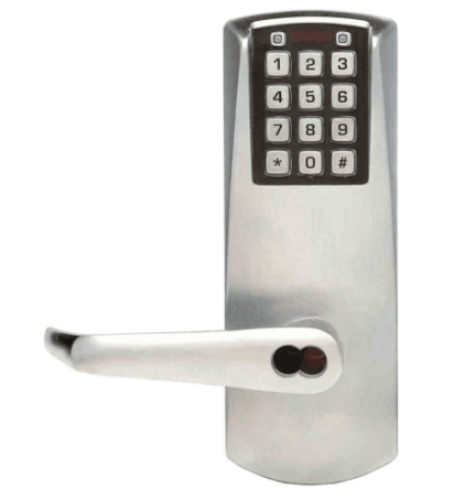

DormaKaba P201UBLL-626-41 PowerPlex Exit Trim, Rim, Mortise, SVR Devices, 6/7-Pin SFIC Prep, Less Core, Satin Chrome

DormaKaba * Eplex P201U-B-LL-626-41 PowerStar Electronic Panic Device Trim Satin Chrome - Exit Trim*For: Rim, Mortise, Surface Vertical Rod

Used only for: Detex Rim # F1001, Detex Surface Vertical Rod #s 20/F20 Dorma Rim # F9300 Von Duprin Rim #s 89/99, Von Duprin Surface Vertical Rod #s 9827/9927 Precision Rim #s 21/FL21, Precision Surface Vertical Rod #s 22/FL22 Arrow Rim # 3800* Sargent Rim # 8800* *requires 062-514-148 Kit; see page 131 in accessories section

( Exit Device Is Not Included )

PowerStar Self Powered, Lock Generates its own power with every turn of the lever, no batteries.

**Key Override: Small Format-Best or equivalent (6 or 7 Pin) Interchangeable Core, Core not included.

**Heavy Duty Commercial Grade 1 Lockset with ADA Lever

Users- Multiple User-100 Codes

3 Operation Modes - PIN access, Passage, Lockout.

Lock is easily programmed via keypad or with optional Eplex Software

Audit Trail - Most recent 1000 lock events are recorded, software is required to view events.

Non-handed, works for Right Hand and Left Hand Doors

5" Minimum Stile

1¾" (44 mm) to 2¼" (57 mm); pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm)

Indoor/Outdoor Approved

Two Year Warranty from date of installation

**Model: DormaKaba P201U, P201UBLL, P201UBLL626, P201UBLL26D, P201UBLL62641, Eplex 2000PowerStar
