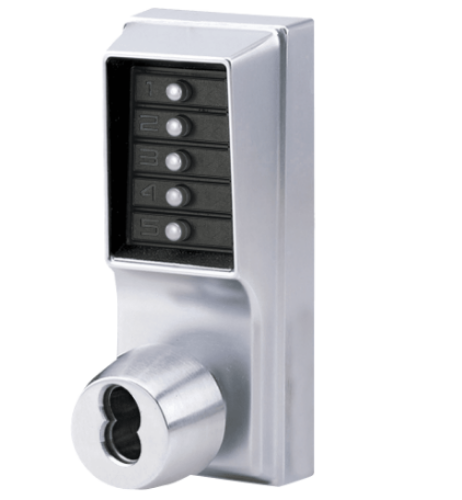

Dormakaba Simplex 1021S-26D-LO Pushbutton Lock - Satin Chrome W/ Lockout

Dormakaba *Simplex 1021S-26D-LO Pushbutton Lock, with Key Override,preparedfor*"Schlage" Core with Lockout Feature

**Cylindrical keyless Lock with Knob, Combination Entry and Key Override. Accepts Schlage Large Format IC Core, Core not included.

Lockout:Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override only.

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs

Vandal resistant, solid metal pushbuttons

Factory-handed for left hand doors; easily field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

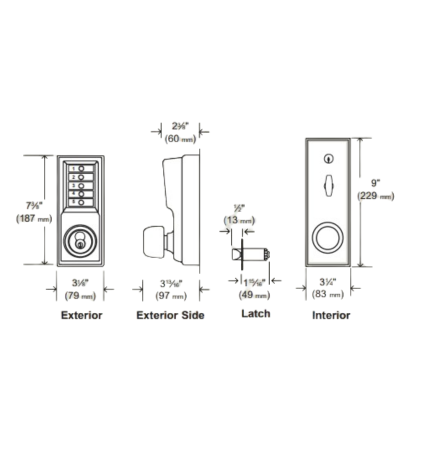

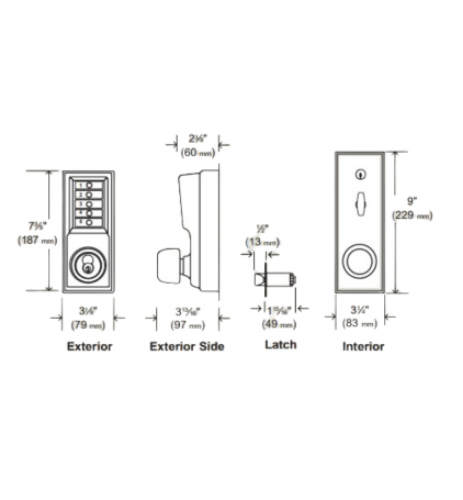

Backset: 2 3⁄4"(70 mm), 2 3⁄8"(60 mm)

Latch: 1⁄2"(13 mm) throw latch; 3⁄4"(19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model 1011)

Combination Entry and Passage (model 1031)

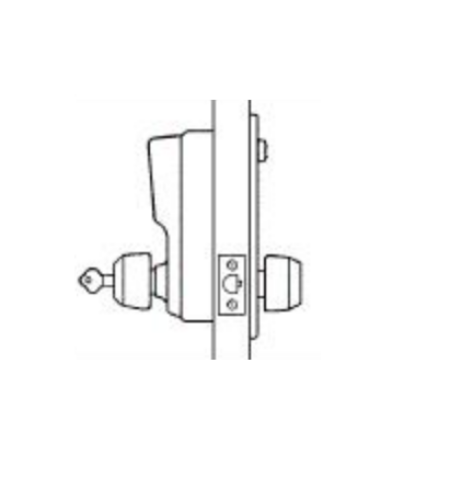

Combination Entry and Key Override (model 1021)

Combination Entry, Key Override and Passage (model 1041)

Model: Dormakaba Ilco, Simplex, 1021S26DLO, 1021SUS26DLO, 1021S-26D-LO-41, 26D, 626, Satin Chrome
