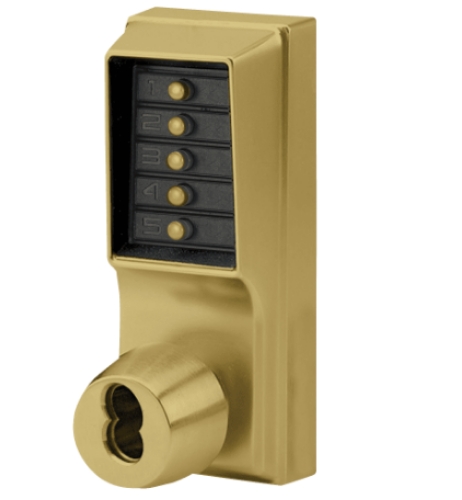

Dormakaba Simplex 1041S-05 Pushbutton Lock - Antique Brass - Schlage

Dormakaba *Simplex 1041S Pushbutton Lock, with Key Override,preparedfor*"Schlage" Core with Passage Feature

** Cylindrical keyless Lock with Knob, Combination Entry and Key Override. Accepts Schlage Large Format IC Core, Core not included.

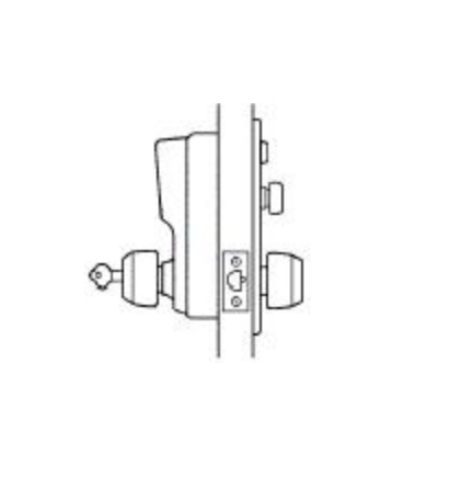

Passage:Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs

Vandal resistant, solid metal pushbuttons

Factory-handed for left hand doors; easily field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

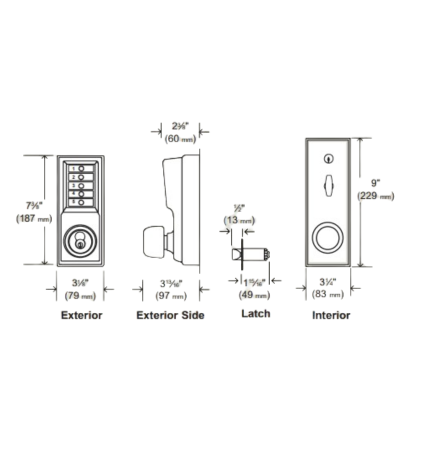

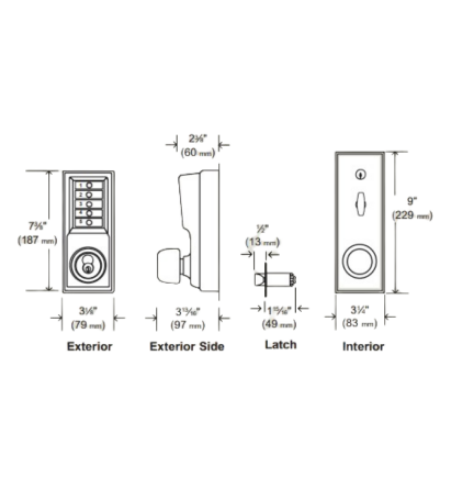

Backset: 2 3⁄4" (70 mm), 2 3⁄8" (60 mm)

Latch: 1⁄2" (13 mm) throw latch; 3⁄4" (19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model 1011)

Combination Entry and Passage (model 1031)

Combination Entry and Key Override (model 1021)

Combination Entry, Key Override and Passage (model 1041)

Model: Dormakaba, Dormakaba Ilco, Dormakaba Access, Simplex, 1041S, 1041S05, 1041S5, 1041SUS5, 1041S-05, 1041S-5, 1041S-US5, 1041S 05, 1041S 5, 1041S US5, 1041 S, 1041 S05, 1041 S5, 1041 SUS5, 1041 S-05, 1041 S-5, 1041 S-US5, 1041 S 05, 1041 S 5, 1041 S US5, 1041-S, 1041-S05, 1041-S5, 1041-SUS5, 1041-S-05, 1041-S-5, 1041-S-US5, 1041-S 05, 1041-S 5, 1041-S US5, 1041S-05-41, 609, Antique Brass
