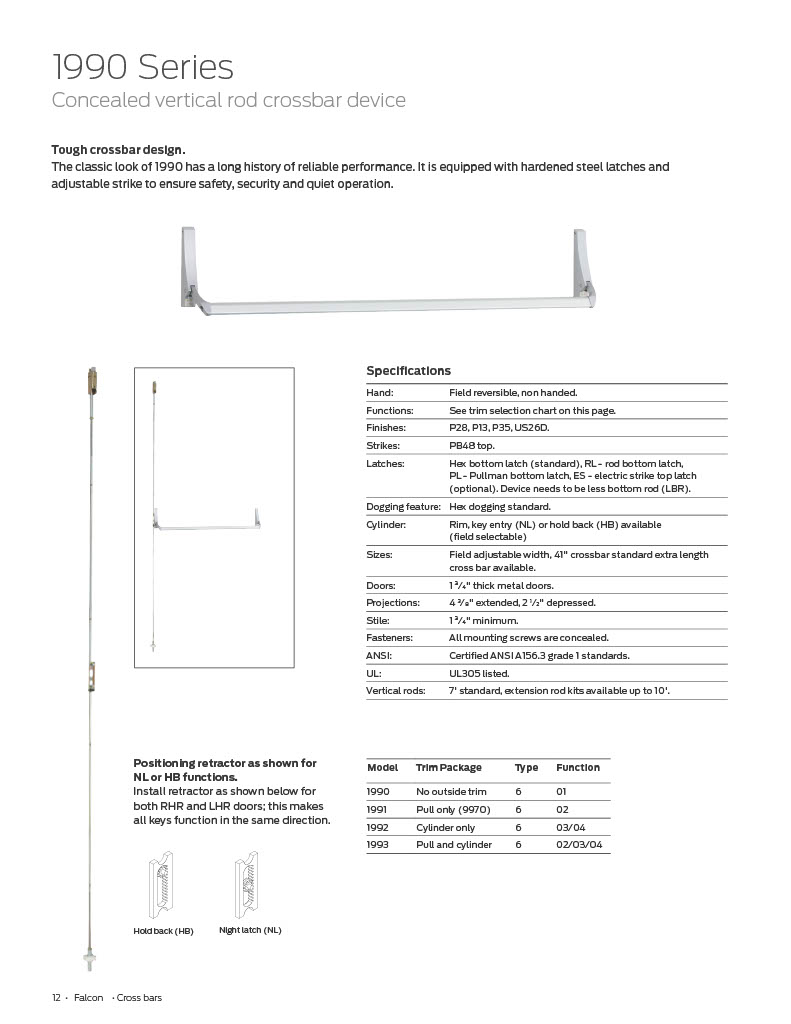

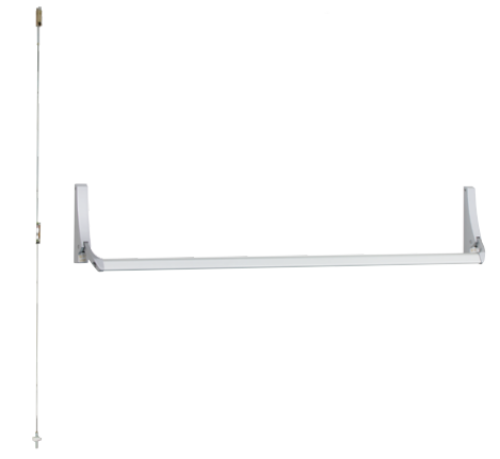

Falcon 1991 DT Concealed Vertical Device, Dummy Trim, with 9970 Pull

Falcon 1990 DT Concealed Vertical Device, *Dummy Trim, with 9970 Pull *(Dor-o-matic)

Specifications:

Hand:Field reversible, non handed

Strikes:PB48 top.

Latches:Hex bottom latch (standard)

Dogging feature:Hex dogging standard.

Sizes:Field adjustable width, 41" crossbar standard extra length cross bar available.

Doors:1 3 ⁄4" thick metal doors.

Projections:4 3 ⁄8" extended, 2 1 ⁄2" depressed.

Stile:1 3 ⁄4" minimum.

Fasteners:All mounting screws are concealed.

ANSI:Certified ANSI A156.3 grade 1 standards.

Vertical rods:7' standard, extension rod kits available up to 10'

Falcon DT1990, Falcon 1990 EO, Falcon DT1990EO, Falcon1990EO, Falcon 1990-EO,    Falcon 1990 P28,  1990 EO, Falcon 1990EOP28, Falcon1990EOP28, Falcon 1990-EO-P28,  Falcon 1990-EO-P28,  Falcon 1990 EO P28, Falcon1990EOP13, Falcon 1990-EO-P13,  Falcon 1990-EO-P13,  Falcon 1990 P28 44,
