Cal-Royal A2260V / AF2260V vertical rod Push Bar Exit Panic Device

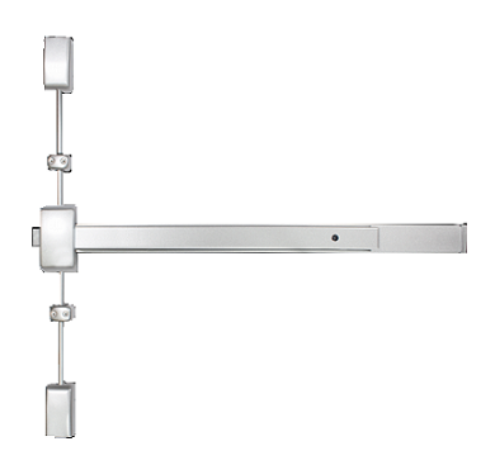

A surface vertical rod exit device is the most common push bar specification for standard commercial hollow metal doors. The rods run visibly on the face of the door, connecting the push bar to the top latch at the header and the bottom latch at the floor or threshold. When the push bar is depressed, both latching points release simultaneously, the door opens, and both rods re-engage automatically when the door closes. Cal-Royal's A2260V does exactly that. It's a 2200 Series surface vertical rod device, ANSI A156.3 Grade 1, non-handed, with a stainless steel latch bolt, heavy gauge steel rail assembly, and nonferrous alloy chassis and cover. The cover accommodates standard hollow metal doors with a 161 cutout without additional preparation.

The same device is available in a 3-hour fire-rated configuration as the AF2260V (the "F" version), which ships with steel chassis and through-bolts as standard. For all Cal-Royal exit devices, browse our Cal-Royal devices catalog. For all commercial panic hardware across every brand, view our full exit hardware catalog.

A2260V vs. AF2260V: Standard vs. Fire-Rated

The A2260V is the standard non-fire-rated device. The AF2260V is the fire-rated version certified to UL10C and UBC 7-2-1997 for up to 3-hour fire labeled single door installations (4' x 8') and double door installations (8' x 8'). The fire-rated version uses a steel chassis instead of nonferrous alloy and ships with through-bolts as standard rather than optional. Through-bolts are included because fire-rated exit hardware requires secure fastening that resists separation under fire conditions. On the non-fire-rated version, through-bolts are available on request but not included. The fire-rated "F" option adds $72.00 to the standard device price at time of order.

Cal-Royal A2260V Technical Specifications

Series: Cal-Royal 2200, Surface Vertical Rod. ANSI: A156.3, Grade 1. Door thickness: 1-3/4" standard. Minimum stile width: 3-3/4" for single door applications; 3-1/2" for double door applications. Chassis: Nonferrous alloy (standard); steel (fire-rated). Cover: Nonferrous alloy; accommodates hollow metal doors with 161 cutout. End cap: Steel. Handing: Non-handed, center hub. Latch bolt: Stainless steel. Springs: Stainless steel. Rail assembly: Heavy gauge steel, painted. Dogging: Allen-type key standard on non-fire labeled devices; cylinder dogging available. UL/ULC: UL10C and UBC 7-2-1997 compliant (F-series fire-rated version). Mounting: Wood and machine screws standard; through-bolts available on request for standard; through-bolts standard for fire-rated. Available finishes: Aluminum, L1 Black (A2260V and A2280V only), Dark Duranodic (Duro), Gold. Options: Standard non-fire rated or 3-hour fire rated (+$72.00).

Available Door Size Configurations

2260V: For doors 30" to 36" wide, up to 84" tall; maximum cut-down 6". 2290V: For doors 30" to 36" wide, up to 96" tall; maximum cut-down 6". 2250V: For doors 30" to 36" wide, up to 120" tall; maximum cut-down 6". 2280V: For doors 36" to 48" wide, up to 96" tall; maximum cut-down 12". 2240V: For doors 36" to 48" wide, up to 120" tall; maximum cut-down 12". Select the correct size at time of order based on door width and height. Push bars ship at full length and can be cut down in the field up to the stated maximum.

Dogging and Cylinder Dogging

The standard A2260V includes an Allen-type hex key for dogging the push bar in the depressed and latched position, holding the door in free-swing passage mode for high-traffic periods. Cylinder dogging replaces the Allen key operation with a standard key cylinder for more convenient and controlled dogging by authorized personnel. Cal-Royal offers the cylinder dogging option (Cal-Royal 36CD2200 Series Cylinder Dogging Kit) as a separately orderable accessory. Fire-rated AF2260V devices cannot be dogged; dogging is prohibited on fire-rated exit hardware.
