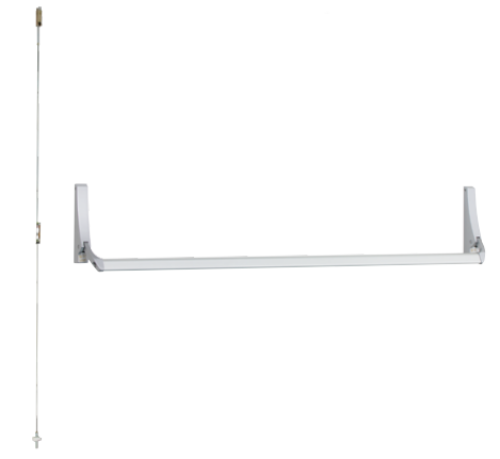

Falcon 1992NL OP/HB-OP Concealed Vertical Device With Night Latch Cylinder

Falcon 1992NL OP/HB-OP Concealed Vertical Device With Night Latch Cylinder (Dor-o-matic)

NL-OP- Night latch, cylinder only: key retracts latch but does not unlock exit device, no pull

HB-OP- Hold back, cylinder only: key retracts latch and holds latch back, no pull

Rim Cylinder Supplied Standard With NL and HB Options IS C Keyway.

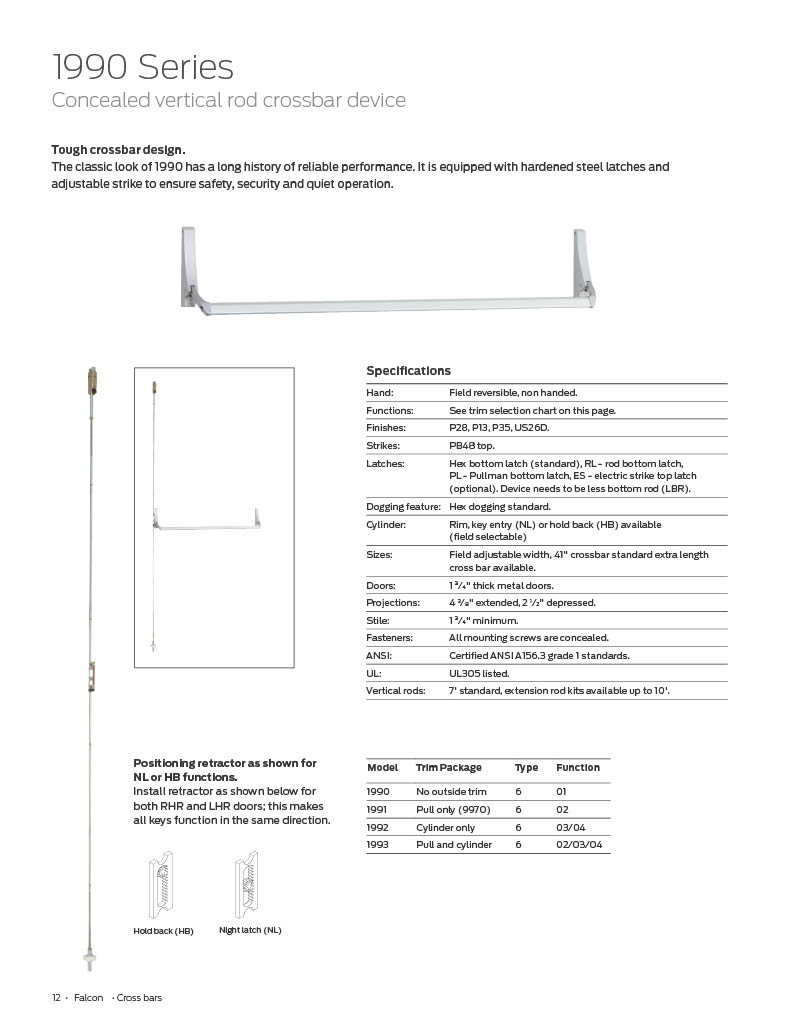

Specifications:

Hand:Field reversible, non handed

Strikes:PB48 top.

Latches:Hex bottom latch (standard)

Dogging feature:Hex dogging standard.

Sizes:Field adjustable width, 41" crossbar standard extra length cross bar available.

Doors:1 3 ⁄4" thick metal doors.

Projections:4 3 ⁄8" extended, 2 1 ⁄2" depressed.

Stile:1 3 ⁄4" minimum.

Fasteners:All mounting screws are concealed.

ANSI:Certified ANSI A156.3 grade 1 standards.

Vertical rods:7' standard, extension rod kits available up to 10'

**

**

**
