LCN 4031 HW/PA Door Closer - Hold Open Arm

Picture of LCN 4031 HW/PA Door Closer - Hold Open Arm

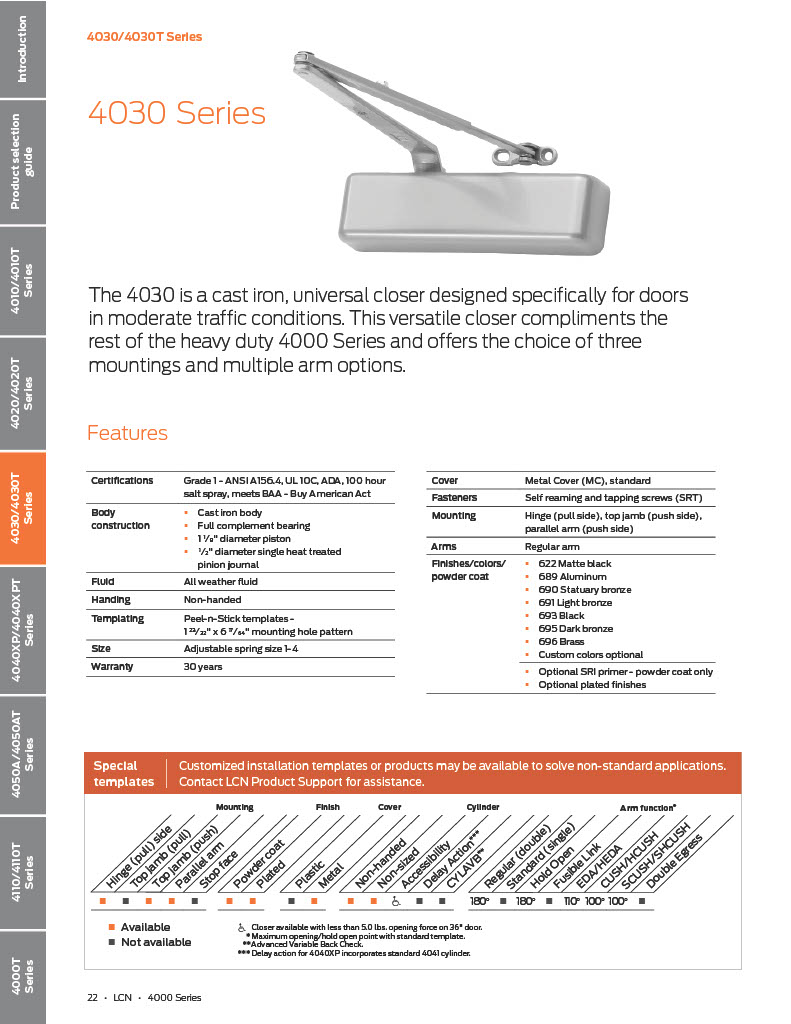

1-Page22-LCN-4000

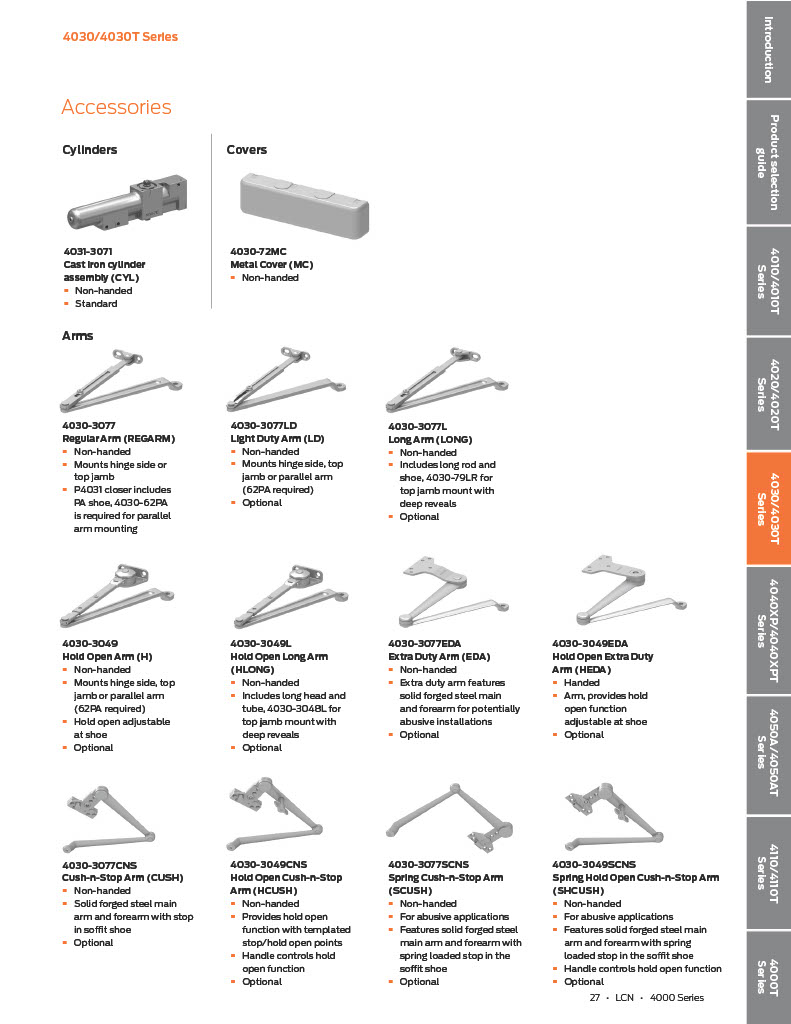

1-Page27-LCN-4000

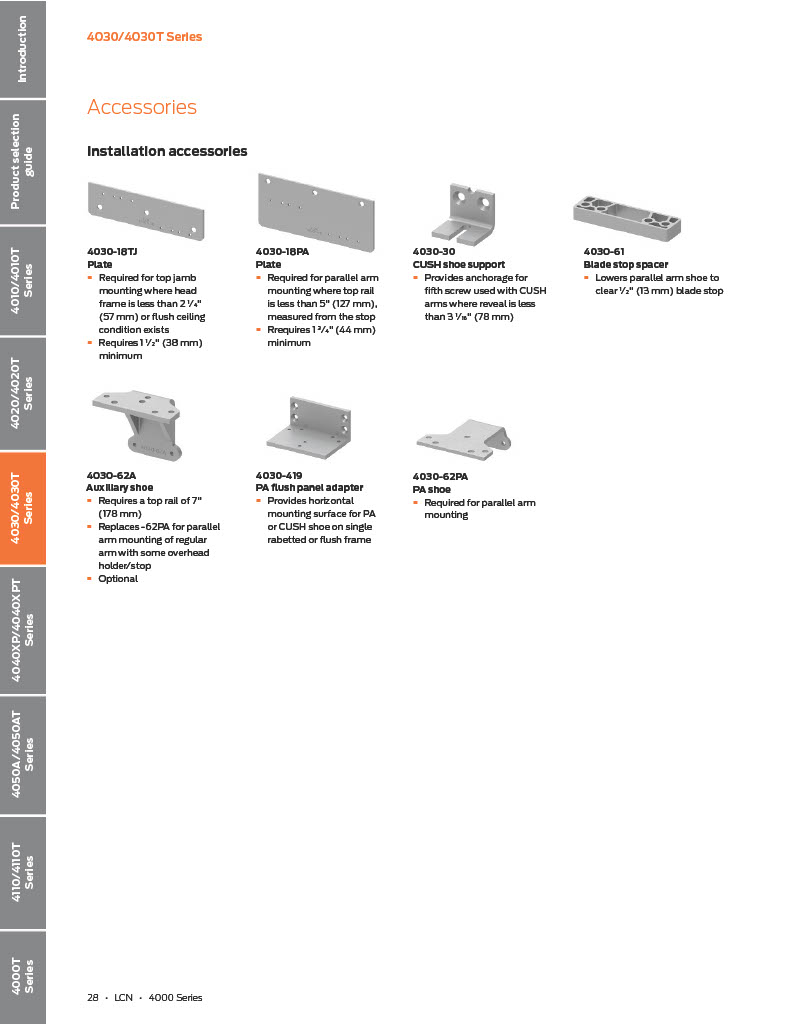

1-Page28-LCN-4000
Picture of LCN 4031 HW/PA Door Closer - Hold Open Arm
Picture of LCN 4031 HW/PA Door Closer - Hold Open Arm
Picture of LCN 4031 HW/PA Door Closer - Hold Open Arm
Picture of LCN 4031 HW/PA Door Closer - Hold Open Arm
Picture of LCN 4031 HW/PA Door Closer - Hold Open Arm
1-Page22-LCN-4000
1-Page27-LCN-4000
1-Page28-LCN-4000
Picture of LCN 4031 HW/PA Door Closer - Hold Open Arm
Picture of LCN 4031 HW/PA Door Closer - Hold Open Arm
Picture of LCN 4031 HW/PA Door Closer - Hold Open Arm
Picture of LCN 4031 HW/PA Door Closer - Hold Open Arm
naxt
prev

Product Details

LCN 4031 Hw/PA - Heavy Duty Door Closer, hold open arm with PA bracket

Finish: Powder Coat

Tri-Mount Closer: Hinge (PULL) side mounting, Top Jamb (PUSH SIDE) mounting, Parallel Arm (PUSH SIDE) mounting.

LCN 4031: Cast Iron - Forged Steel Arm - Heat Treated Steel Pinion - All Weather Fluid

Power size: Non-sized (1-4) 4031 cylinder for exterior doors to 36" (914 mm) and interior doorsto 48" (1219 mm).

Handing: Non-Handed

UL: UL & cUL Listed

ANSI: Tested and certified under ANSI Standard A156.4, grade 1

Arm: HOLD-OPEN ARM, 4030-3049, non-handed arm mounts pull side or top jamb, hold-open adjustable at shoe. includes 62PA shoe required for parallel arm mounting.

PA shoe: 4030-62PA shoe for parallel arm mounting.

Cover: 4030-72MC Standard, non-handed Metal cover.

Screw Pack: Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Model: LCN, 4031-H, 4031-HO, 4031 Hw/PA, 4031-HALUM, 4031-HDKBRZ, 4031-HLTBRZ, 4031-HBRASS, 4031698, 4031-H695, 4031-H691, 4031-H696.

LCN 4031 HW/PA Door Closer - Hold Open Arm

SKU: 4031-HW/PA

In Stock
Picture for manufacturer LCN
icon Chat

$546.00

Finish *

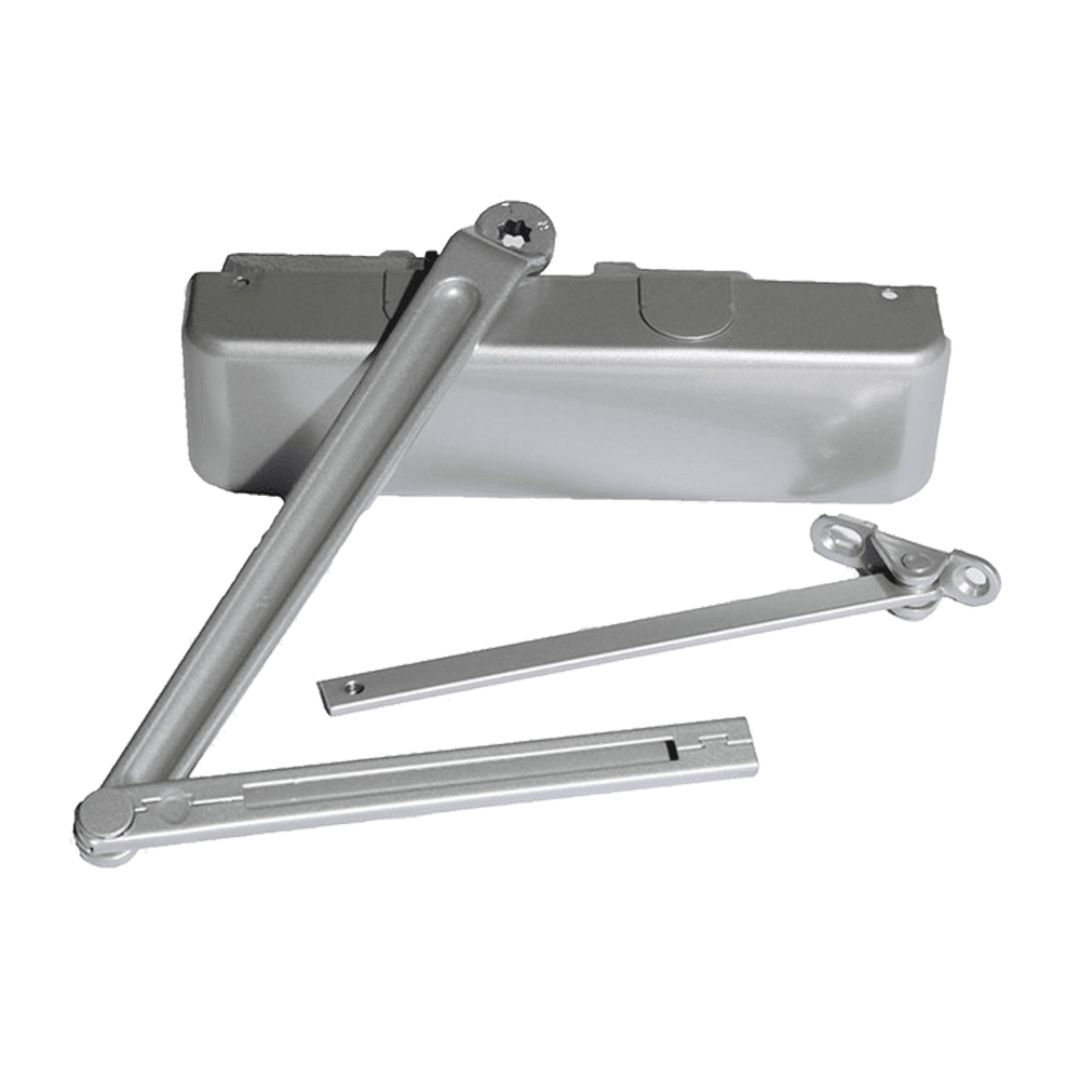

689 - Silver Aluminum Painted
689 - Silver Aluminum Painted

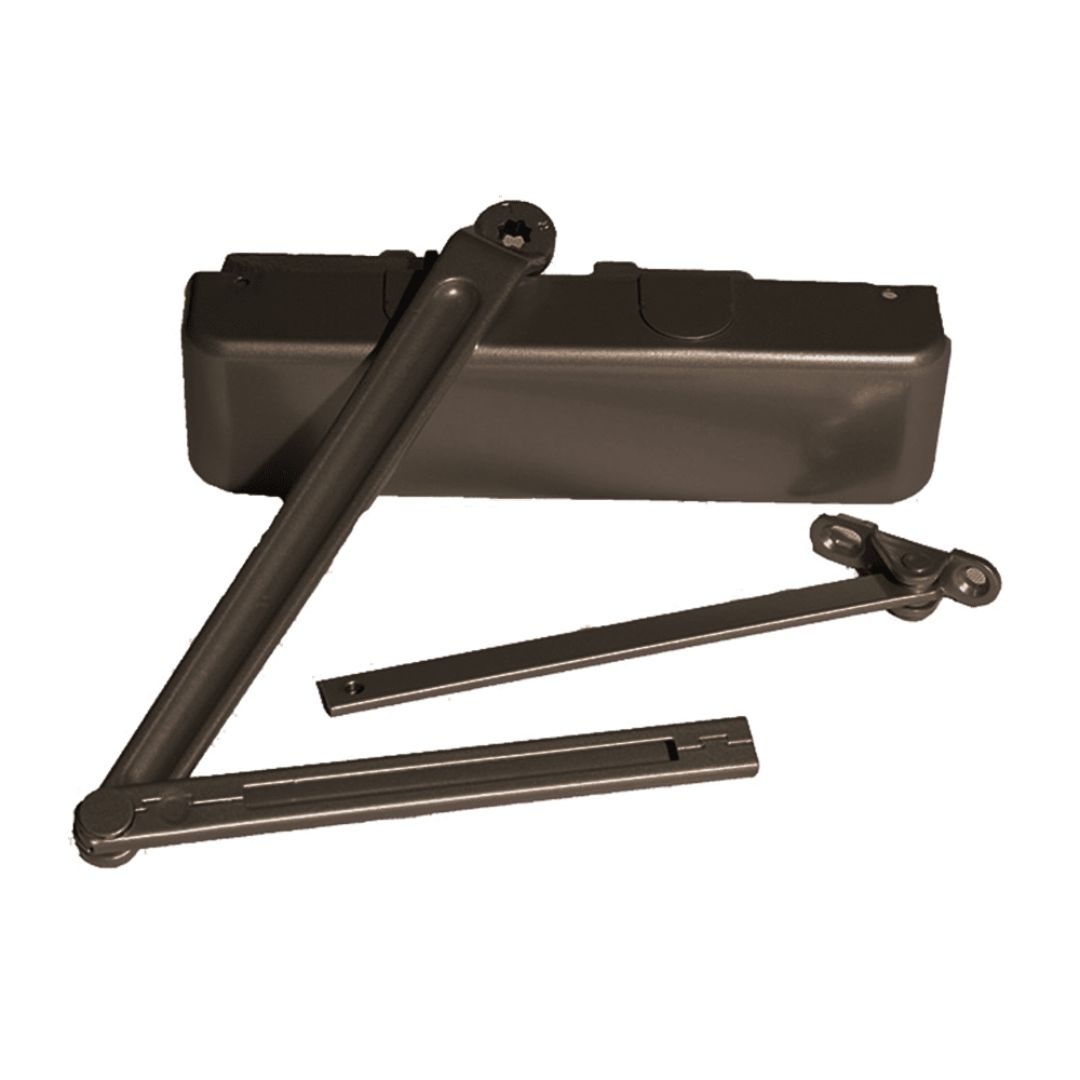

695 - Dark Bronze Painted
695 - Dark Bronze Painted

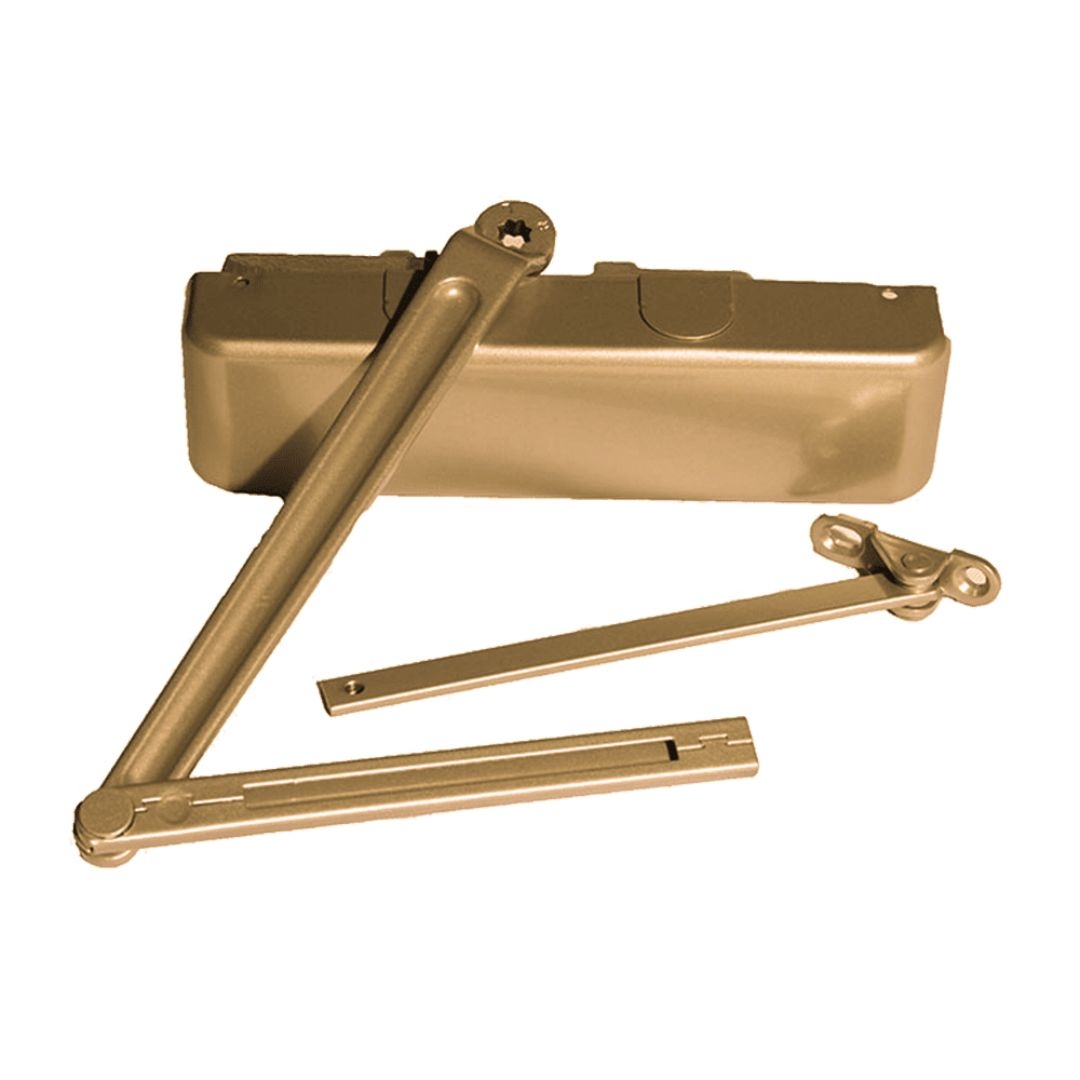

691 - Light Bronze Painted
691 - Light Bronze Painted
696 - Satin Brass Painted
696 - Satin Brass Painted

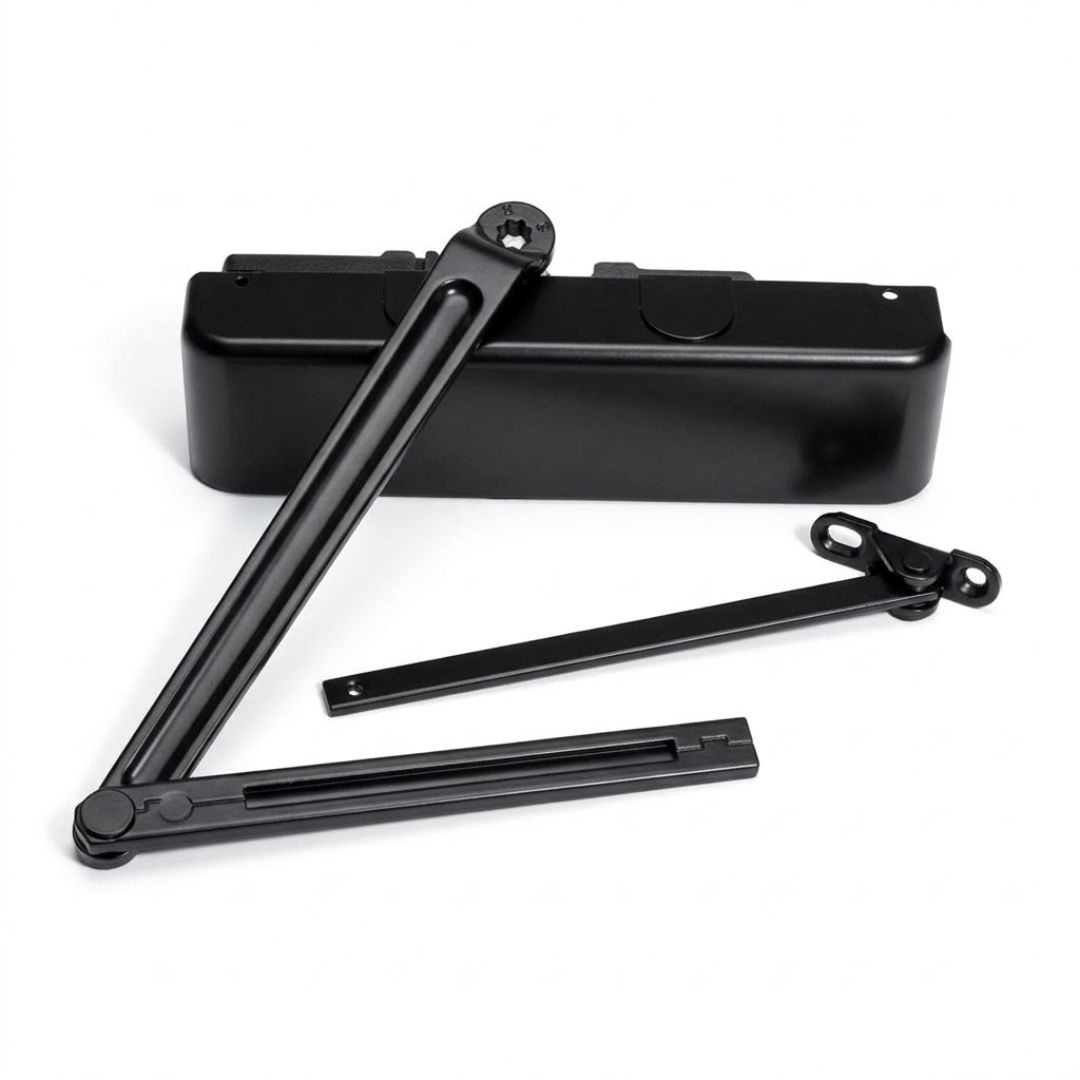

693 - Black Painted
693 - Black Painted

About this item

The 4031 is a cast iron, universal closer designed specifically for doors in moderate traffic conditions. This versatile closer compliments the rest of the heavy duty 4000 Series and offers the choice of three mountings and multiple arm options.

Resources

LCN 4031 Hw/PA - Heavy Duty Door Closer, hold open arm with PA bracket

Finish: Powder Coat

Tri-Mount Closer: Hinge (PULL) side mounting, Top Jamb (PUSH SIDE) mounting, Parallel Arm (PUSH SIDE) mounting.

LCN 4031: Cast Iron - Forged Steel Arm - Heat Treated Steel Pinion - All Weather Fluid

Power size: Non-sized (1-4) 4031 cylinder for exterior doors to 36" (914 mm) and interior doorsto 48" (1219 mm).

Handing: Non-Handed

UL: UL & cUL Listed

ANSI: Tested and certified under ANSI Standard A156.4, grade 1

Arm: HOLD-OPEN ARM, 4030-3049, non-handed arm mounts pull side or top jamb, hold-open adjustable at shoe. includes 62PA shoe required for parallel arm mounting.

PA shoe: 4030-62PA shoe for parallel arm mounting.

Cover: 4030-72MC Standard, non-handed Metal cover.

Screw Pack: Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Model: LCN, 4031-H, 4031-HO, 4031 Hw/PA, 4031-HALUM, 4031-HDKBRZ, 4031-HLTBRZ, 4031-HBRASS, 4031698, 4031-H695, 4031-H691, 4031-H696.

Picture of LCN 4031 HW/PA Door Closer - Hold Open Arm
LCN 4031 HW/PA Door Closer - Hold Open Arm

Product code: 4031-HW/PA

In Stock

$546.00

$546.00

Picture of LCN 4031 HW/PA Door Closer - Hold Open Arm
LCN 4031 HW/PA Door Closer - Hold Open Arm

Product code: 4031-HW/PA

In Stock

$546.00

$546.00

LCN 4031 HW/PA Door Closer - Hold Open Arm

SKU: 4031-HW/PA
