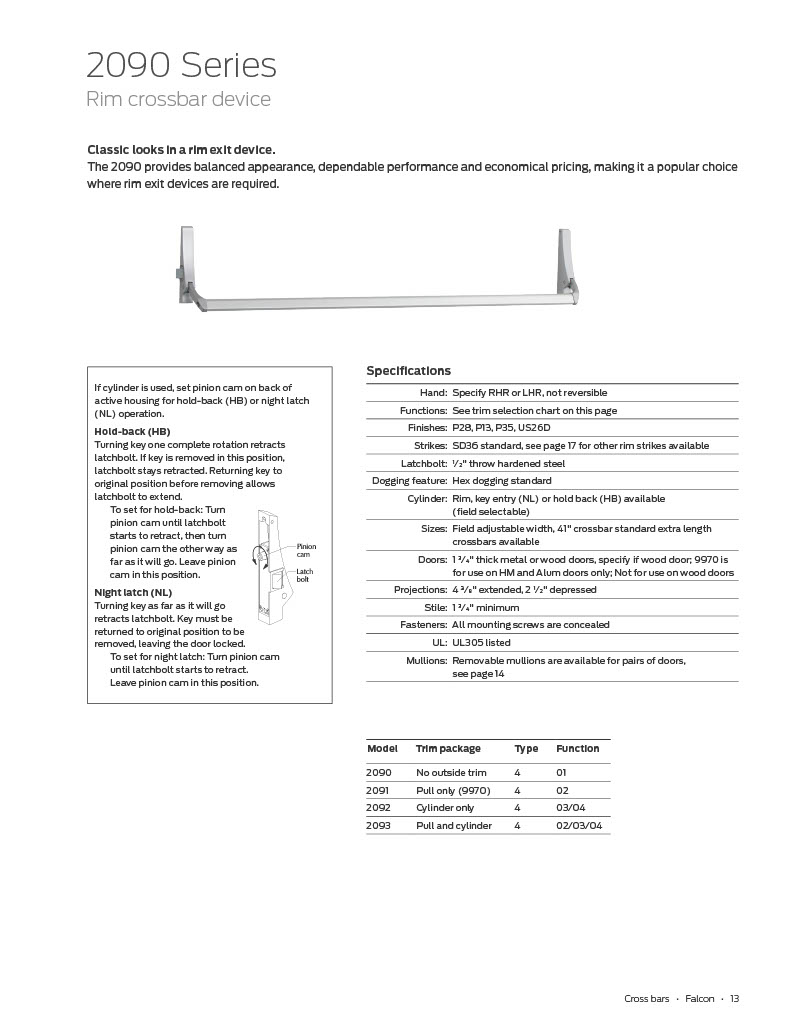

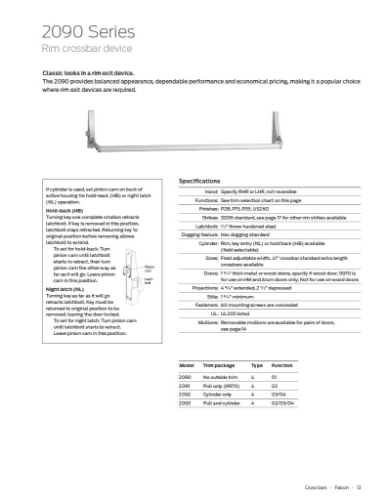

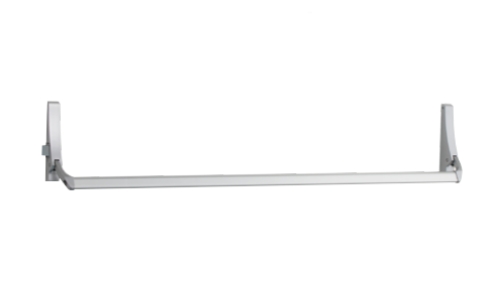

Falcon 2090 EO Rim Crossbar Device

Falcon 2090 EO Rim Crossbar Device(Dor-o-matic)

Specifications

Hand:Specify RHR or LHR, not reversible

Strikes:SD36 standard

Latchbolt:1 ⁄2" throw hardened steel.

Dogging feature:Hex dogging standard.

Cylinder:Rim, key entry (NL) or hold back (HB) available (field selectable).

Sizes:Field adjustable width, 41" crossbar standard extra length crossbars available.

Doors:1 3⁄4" thick metal or wood doors, specify if wood door.

Projections:4 3⁄8" extended, 2 1 ⁄2" depressed. Stile: 1 3⁄4" minimum.

Fasteners:All mounting screws are concealed.

ANSI:Certified ANSI A156.3 Grade 1 standards

**

**

Falcon 2090, Falcon 2090 EO, Falcon 2090EO, Falcon2090EO, Falcon 2090-EO,    Falcon 2090 P28,  2090 EO, Falcon 2090EOP28, Falcon2090EOP28, Falcon 2090-EO-P28,  Falcon 2090-EO-P28,  Falcon 2090 EO P28, Falcon2090EOP13, Falcon 2090-EO-P13,  Falcon 2090-EO-P13,  Falcon 2090 P28 44,  2090 EO 44, Falcon 2090EOP2844, Falcon2090EOP2844, Falcon 2090-EO-P28-44,  Falcon 2090-EO-P28-44,  Falcon 2090 EO P28 44, Falcon2090EOP13 44, Falcon 2090-EO-P13-44,  Falcon 2090 EO P13 44,   Falcon 2090 P28 51,  2090 EO 51, Falcon 2090EOP2851, Falcon2090EOP2851, Falcon 2090-EO-P28-51,  Falcon 2090-EO-P28-51,  Falcon 2090 EO P28 51, Falcon2090EOP13 51, Falcon 2090-EO-P13-51,  Falcon 2090 EO P13 51,
