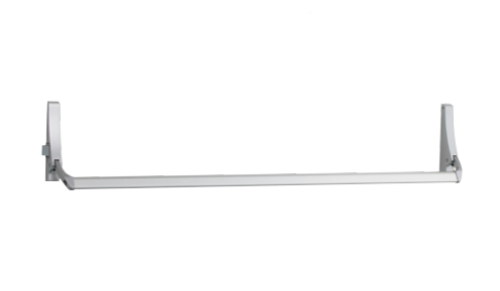

Falcon 2092NL OP/HB-OP Rim Crossbar Device With Night Latch Cylinder

Falcon 2092NL OP/HB-OP Rim Cross Bar Device With Night Latch Cylinder (Dor-o-matic)

NL-OP- Night latch, cylinder only: key retracts latch but does not unlock exit device, no pull

HB-OP- Hold back, cylinder only: key retracts latch and holds latch back, no pull

Rim Cylinder Supplied Standard With NL and HB Options IS C Keyway.

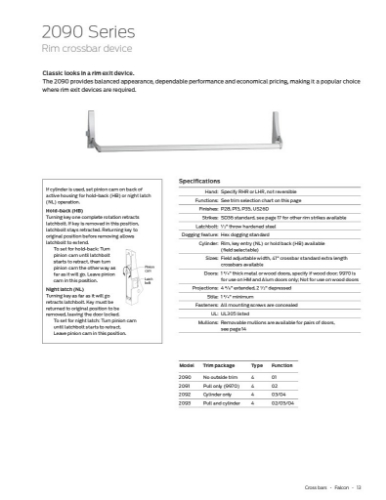

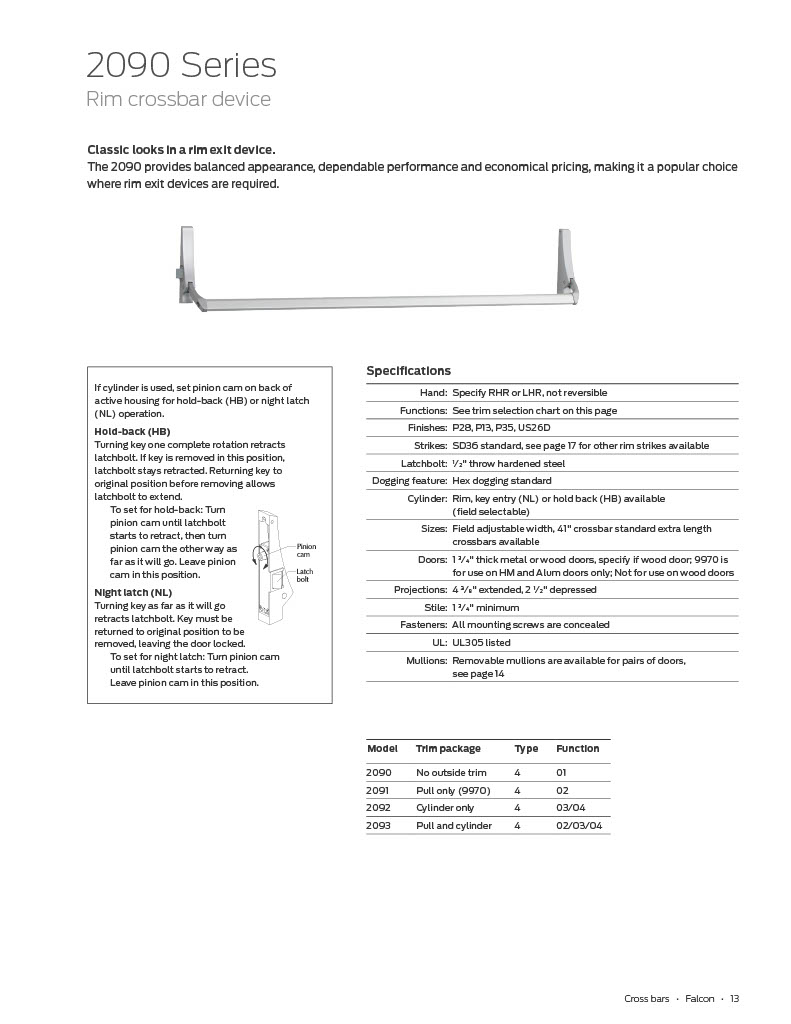

Specifications

Hand:Specify RHR or LHR, not reversible

Strikes:SD36 standard

Latchbolt:1 ⁄2" throw hardened steel.

Dogging feature:Hex dogging standard.

Cylinder:Rim, key entry (NL) or hold back (HB) available (field selectable).

Sizes:Field adjustable width, 41" crossbar standard extra length crossbars available.

Doors:1 3⁄4" thick metal or wood doors, specify if wood door.

Projections:4 3⁄8" extended, 2 1 ⁄2" depressed. Stile: 1 3⁄4" minimum.

Fasteners:All mounting screws are concealed.

ANSI:Certified ANSI A156.3 Grade 1 standards
