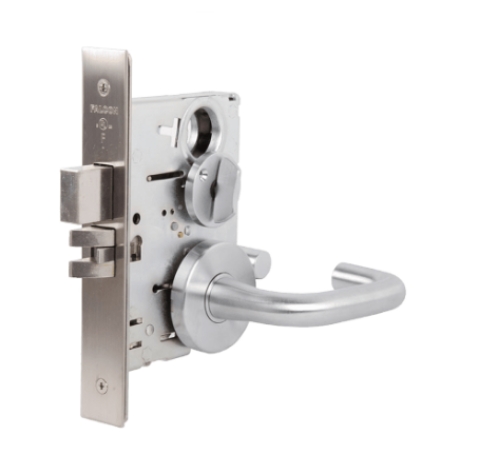

Falcon MA621 Grade 1 Apartment Corridor Mortise Lock

Falcon MA621 Front Door / Apartment Corridor Mortise Lock - ANSIF08/F10

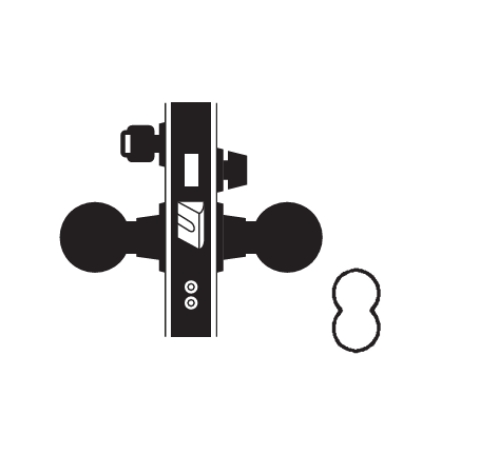

Latch bolt is operated by knob/lever from either side, except when outside knob/lever is made inoperative by buttons in face. Dead bolt is operated by turn inside. Key outside operates both bolts. Outside knob/lever is unlocked by button on face.

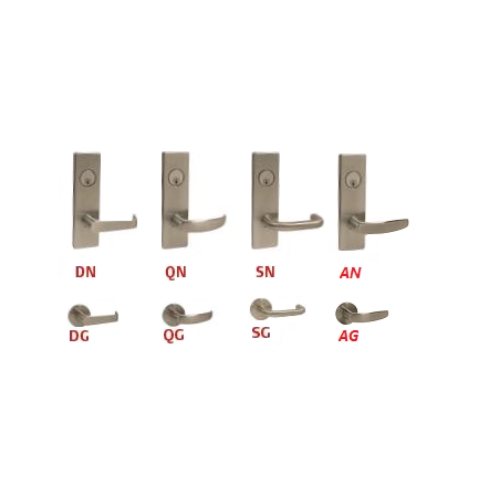

Available in the following trim styles:

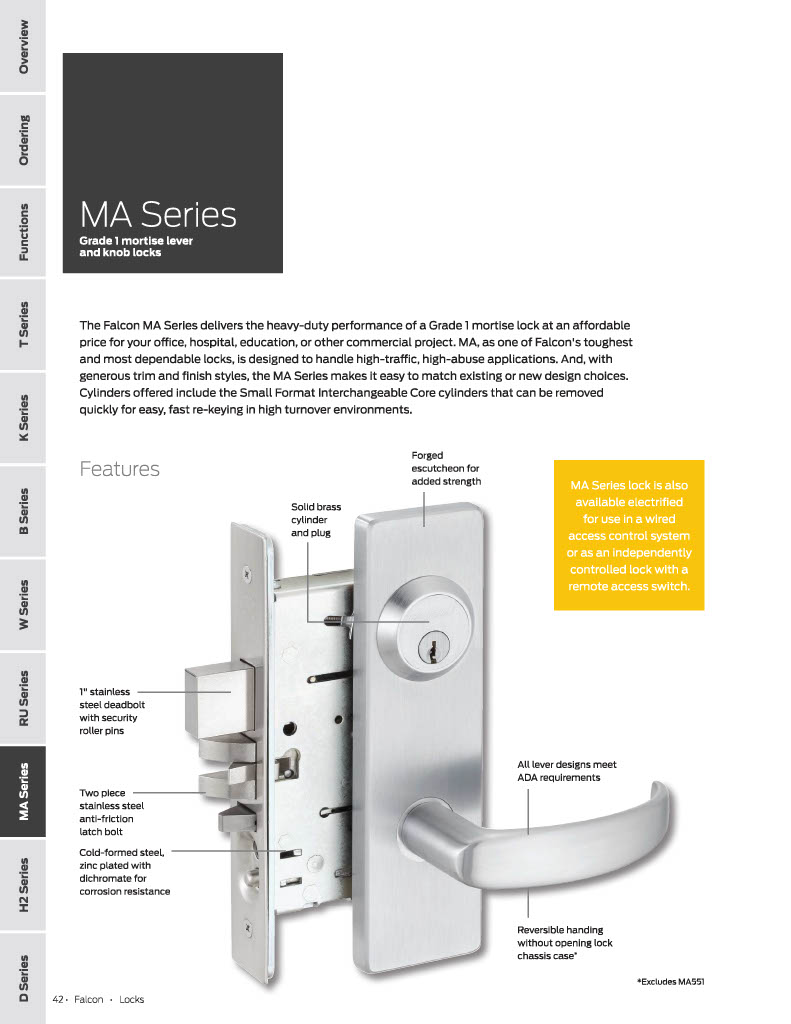

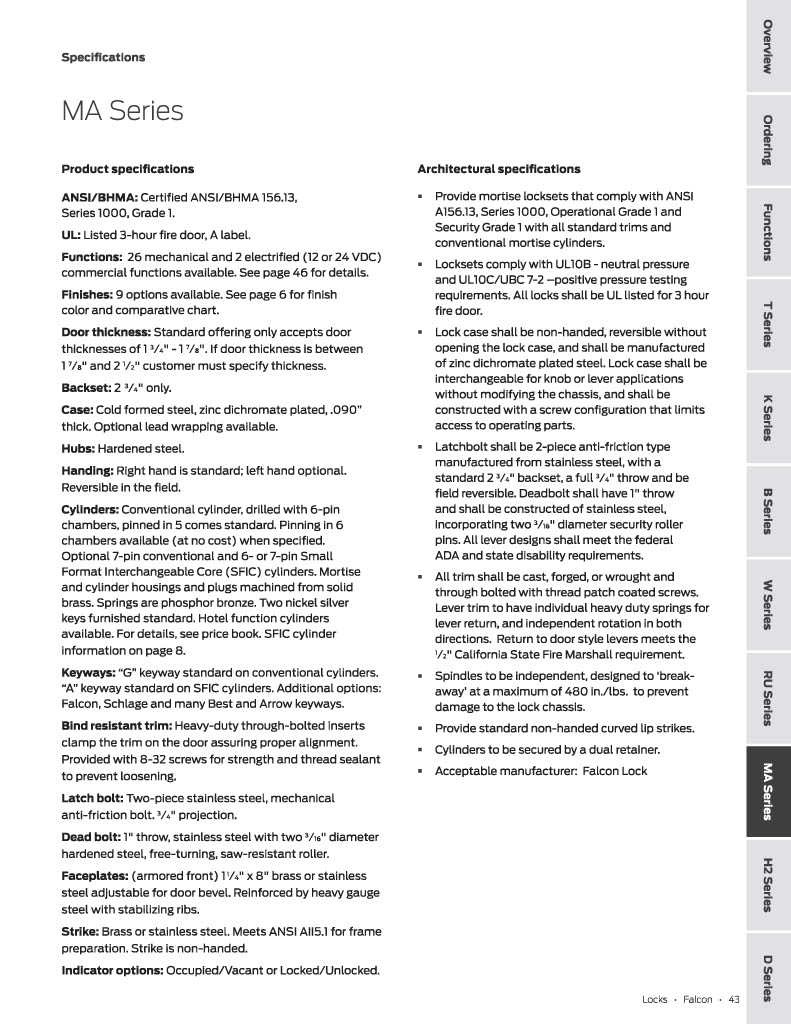

MA Series Lock Features

Door thickness:Standard accommodates thickness of 1-3/8to 2-1/2".

Backset:2-3/4 only.

Case:Cold formed steel, zinc dichromate plated, .090 thick.

Hubs:Hardened steel.

Handing:Right hand is standard; left hand optional. Reversible in the field.

Cylinders:Solid brass cylinder and plug.Standard mortise cylinders are furnished as 5-or 6-pin as standard. 6 or 7-pin are available on interchangeable core cylinder.

Furnished with two nickel silver keys standard

Keyways:G keyway standard on standard cylinder. A keyway standard on I/C cylinder.

Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.

Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4projection.

Dead Bolt:1throw, stainless steel with two 13/16diameter hardened steel, free-turning, saw-resistant roller.

Faceplates:(Armored Front) 1-1/4 x 8 brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.

Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.

Electrified Functions:Available in 12 or 24 VDC. ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.

UL:3 hour A label.

Model: Falcon MA621, DG, Dane-Gala, QG, -Quantum-Gala, SG, Sutro-Gala, DN, Dane-Napa, QN, -Quantum-Napa, SN, Sutro-Napa, HG, Hana-Gala, HN, Hana-Napa, 626, Satin Chrome, 613, Oil Rubbed Bronze, 630, Satin Stainless Steel, MA621DG, MA621QG, MA621SG, MA621HG, MA621DN, MA621QN, MA621SN, MA621HN, MA621DG626, MA621DG613, MA621DG630 ,MA621QG626, MA621QG613, MA621QG630, MA621SG626, MA621SG613, MA621SG630, MA621DN626, MA621QN626, MA621SN626, MA621HG626, MA621HN626
