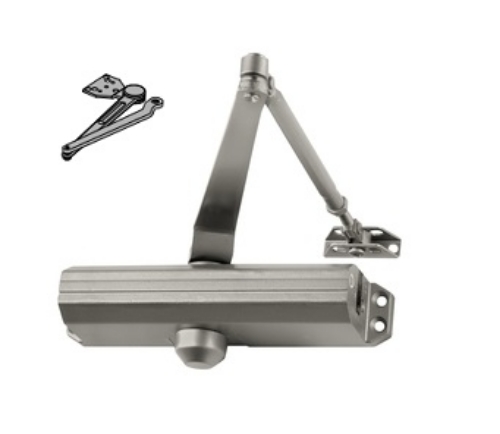

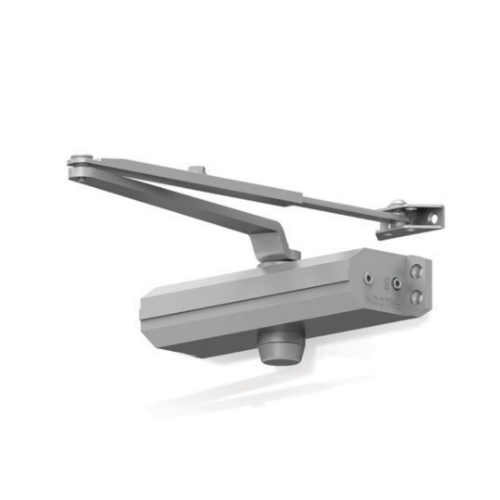

Falcon SC61A HDPA Door Closer - Regular With Parallel Arm Shoe

Picture of Falcon SC61A HDPA Door Closer - Regular With Parallel Arm Shoe
1-Page1-SC60A
1-Page3-SC60A
Picture of Falcon SC61A HDPA Door Closer - Regular With Parallel Arm Shoe
1-Page1-SC60A
1-Page3-SC60A
naxt
prev

Product Details

Falcon SC61A HD/PA Door Closer -  Heavy duty arm (Dor-o-matic)

 non-handed, stamped, heavy duty, parallel arm for use in high-traffic applications.

Standard features

- Fully adjustable 1-5 -Retrofittable, matches Norton 1600 hole pattern

- Meets ANSI A117.1 -ANSI/BHMA A156.4, grade 1

- UL listed -1 3 ⁄8" diameter piston

-  Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified.

- Single piece cast aluminum body

-Staked valves Non-handed for left or right swinging doors

- Separate adjustable general speed, latch speed and backcheck

-Heat-treated steel piston

-Heat-treated pinion -UL 10C approved fluid

- Universal screw pack -10-year warranty

Listings and certifications

The Falcon SC60 series is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC61 is designed to meet the American Disabilities Act (ADA) and ANSI A117.1. The SC60 Series is ANSI/BHMA A156.4, grade 1 certified.

Model: Falcon SC61 HD/PA,  SC 61 HD/PA,  SC-61 HD/PA, SC61HD/PA, SC61HDPA

Falcon SC61A HDPA Door Closer - Regular With Parallel Arm Shoe

SKU: SC61A HDPA

In Stock
Picture for manufacturer Falcon
icon Chat

$144.48

Finish *

AL - Silver Aluminum Painted
AL - Silver Aluminum Painted
DKB - Dark Bronze Painted
DKB - Dark Bronze Painted
BR - Satin Brass Painted
BR - Satin Brass Painted
MTBK - Sprayed Black Painted
MTBK - Sprayed Black Painted

About this item

When you need a dependable closer for a standard-duty application, the Falcon SC60 Series gets the job done. Designed for interior use with an aluminum storefront, the SC60 Series offers ANSI grade 1 durability backed by a ten-year warranty. Most common hole pattern in the industry for versatile use and easy retrofit.

Resources

Falcon SC61A HD/PA Door Closer -  Heavy duty arm (Dor-o-matic)

 non-handed, stamped, heavy duty, parallel arm for use in high-traffic applications.

Standard features

- Fully adjustable 1-5 -Retrofittable, matches Norton 1600 hole pattern

- Meets ANSI A117.1 -ANSI/BHMA A156.4, grade 1

- UL listed -1 3 ⁄8" diameter piston

-  Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified.

- Single piece cast aluminum body

-Staked valves Non-handed for left or right swinging doors

- Separate adjustable general speed, latch speed and backcheck

-Heat-treated steel piston

-Heat-treated pinion -UL 10C approved fluid

- Universal screw pack -10-year warranty

Listings and certifications

The Falcon SC60 series is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC61 is designed to meet the American Disabilities Act (ADA) and ANSI A117.1. The SC60 Series is ANSI/BHMA A156.4, grade 1 certified.

Model: Falcon SC61 HD/PA,  SC 61 HD/PA,  SC-61 HD/PA, SC61HD/PA, SC61HDPA

Picture of Falcon SC61A HDPA Door Closer - Regular With Parallel Arm Shoe
Falcon SC61A HDPA Door Closer - Regular With Parallel Arm Shoe

Product code: SC61A HDPA

In Stock

$144.48

$144.48

Picture of Falcon SC61A HDPA Door Closer - Regular With Parallel Arm Shoe
Falcon SC61A HDPA Door Closer - Regular With Parallel Arm Shoe

Product code: SC61A HDPA

In Stock

$144.48

$144.48

Falcon SC61A HDPA Door Closer - Regular With Parallel Arm Shoe

SKU: SC61A HDPA
