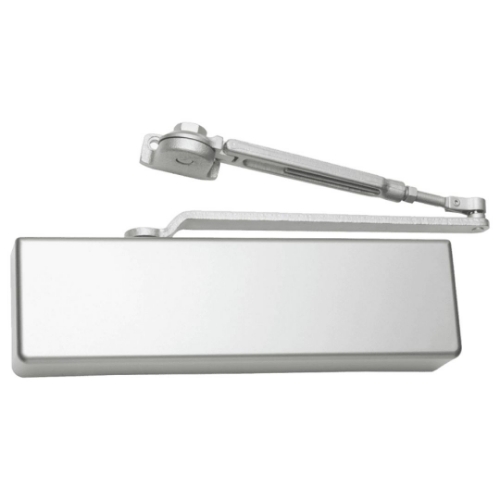

Falcon SC71A-DS Door Closer - Dead Stop Arm

Falcon SC71A-DS Door Closer - Dead stop arm (Dor-o-matic)

Non-handed, stamped, heavy duty, parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.

Standard features

-  Meets ANSI A117.1 -  ANSI/BHMA A156.4, grade 1

-  UL listed  - 1 1 ⁄2" diameter piston

-  Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified.

-  Adjustable sizes 1-6 - Single piece cast aluminum body

-  Staked valves - Non-handed for left or right swinging doors

-  Fast and easy installation

-  Separate adjustable general speed, latch speed and backcheck

-  Heat-treated forged steel piston - Double heat-treated pinion

-  Cover is high-impact UL listed fire retardant plastic that meets UL 10C and UBC 7-2 (1997) fire test

-  UL 10C approved fluid  10-year warranty

-  Universal screw pack for aluminum, hollow metal and wood doors

Listings and certifications

The Falcon SC71 is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC71 is rated ANSI/BHMA A156.4, grade 1 and designed to meet the American Disabilities Act (ADA) and ANSI A117.1

Model: Falcon SC71 DS,  SC71-DS,  SC-71DS, SC 71 DS,   SC-71-DS
