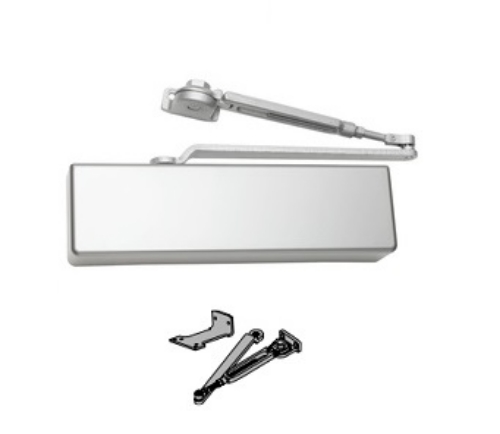

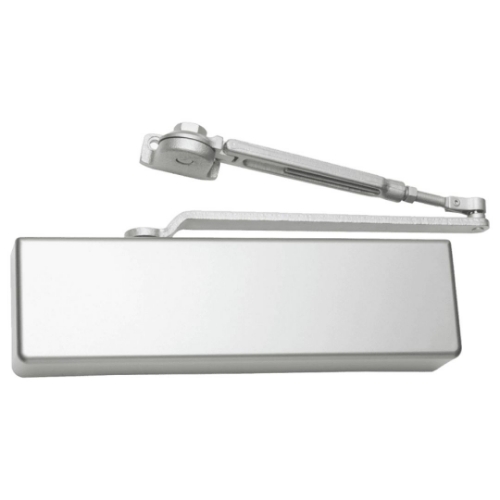

Falcon SC71A HW/PA Door Closer - Hold open with parallel arm shoe

Falcon SC71 HW/PA Door Closer - Hold open with parallel arm*shoe* (Dor-o-matic)

non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

Standard features

  Meets ANSI A117.1  ANSI/BHMA A156.4, grade 1

  UL listed  1 1 ⁄2" diameter piston

  Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified.

  Adjustable sizes 1-6  Single piece cast aluminum body

  Staked valves  Non-handed for left or right swinging doors

  Fast and easy installation

  Separate adjustable general speed, latch speed and backcheck

  Heat-treated forged steel piston  Double heat-treated pinion

  Cover is high-impact UL listed fire retardant plastic that meets UL 10C and UBC 7-2 (1997) fire test

  UL 10C approved fluid  10-year warranty

  Universal screw pack for aluminum, hollow metal and wood doors

Listings and certifications

The Falcon SC71 is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC71 is rated ANSI/BHMA A156.4, grade 1 and designed to meet the American Disabilities Act (ADA) and ANSI A117.1

Model:Falcon SC71 HW/PA,  SC 71 HW/PA,  SC-71 HW/PA, SC71HW/PA,   SC71HWPA
