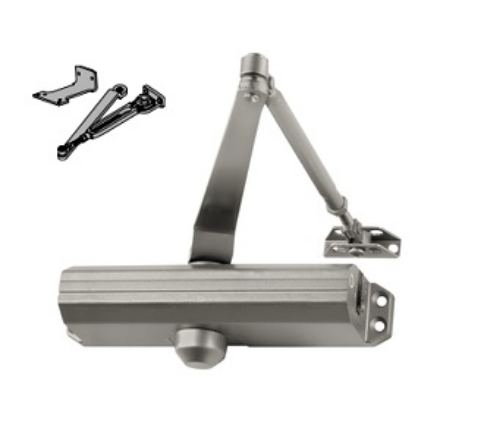

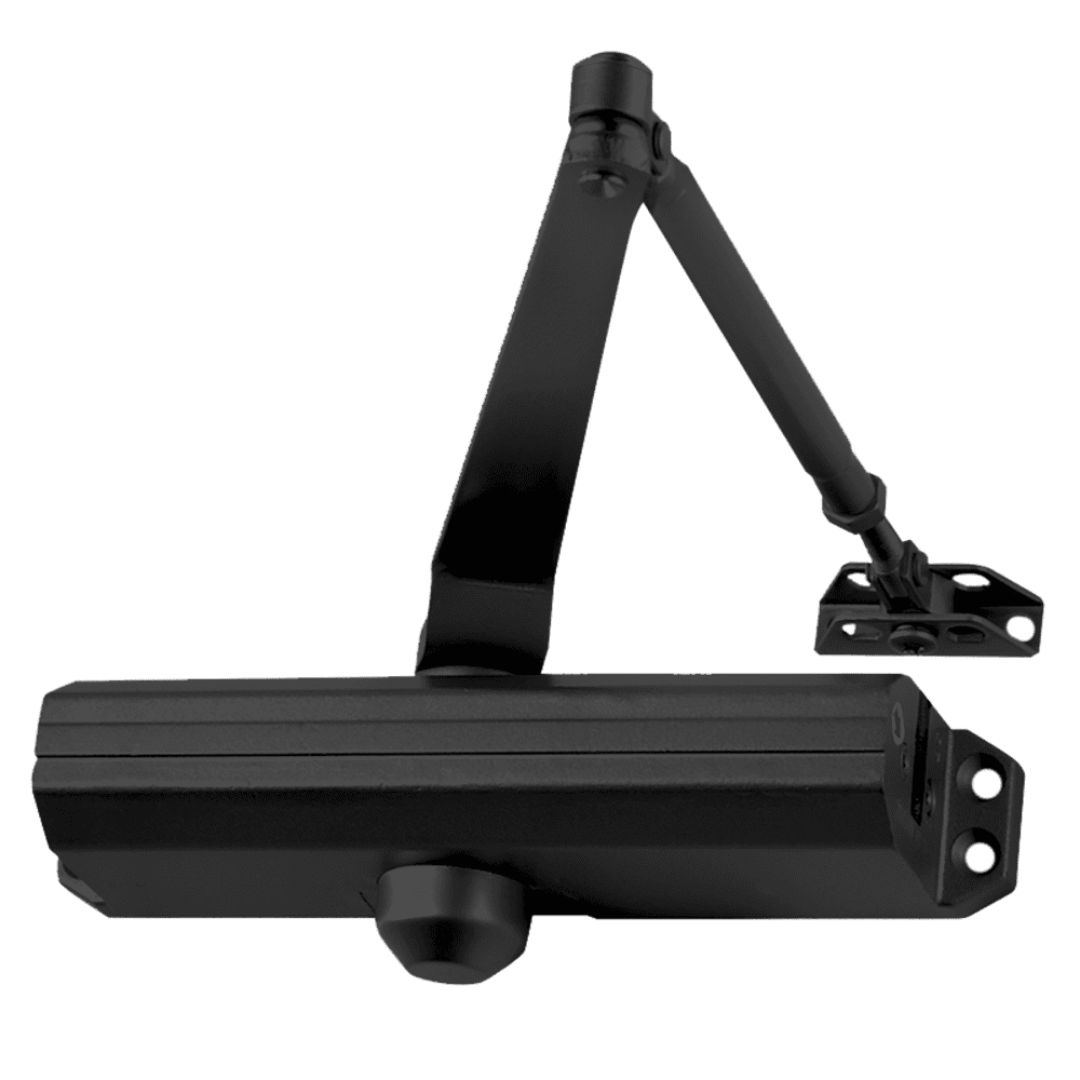

Falcon SC61A HW/PA Door Closer - Hold open with parallel arm shoe

Falcon SC61A HW/PA Door Closer - Hold open with parallel arm shoe (Dor-o-matic)

non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

Standard features

- Fully adjustable 1-5 -Retrofittable, matches Norton 1600 hole pattern

- Meets ANSI A117.1 -ANSI/BHMA A156.4, grade 1

- UL listed § 1 3 ⁄8" diameter piston

-  Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified.

- Single piece cast aluminum body

-Staked valves -Non-handed for left or right swinging doors

- Separate adjustable general speed, latch speed and backcheck

-Heat-treated steel piston

-Heat-treated pinion-UL 10C approved fluid

- Universal screw pack -10-year warranty

Listings and certifications

The Falcon SC60 series is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC61 is designed to meet the American Disabilities Act (ADA) and ANSI A117.1. The SC60 Series is ANSI/BHMA A156.4, grade 1 certified.

Model:Falcon**SC61 HW/PA,  SC 61 HW/PA,  SC-61 HW/PA, SC61HW/PA,   SC61HWPA
