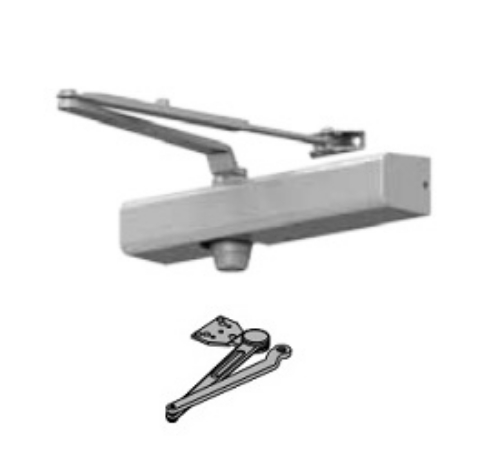

Falcon SC81A HD/PA Door Closer - Heavy duty arm

Falcon SC81A HD/PA Door Closer -  Heavy duty arm

(Dor-O-Matic)

non-handed, stamped, heavy duty, parallel arm for use in high-traffic applications.

Standard features

-  Meets ANSI A117.1 -  ANSI/BHMA A156.4, grade 1

• UL listed  - 1 1 ⁄4" diameter piston

• Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified.

• Fully adjustable sizes 1-6 - Single piece cast aluminum body

• Non-handed for left or right swinging doors -  Heat-treated steel piston

• Heat-treated pinion - Separate adjustable general speed, latch speed and backcheck

• Cover is high-impact UL listed fire retardant plastic that meets UL 10C and UBC 7-2 (1997) fire test

-  UL 10C approved fluid - Universal screw pack for aluminum, hollow metal, and wood doors

• 10-year warranty

Listings and certifications

The Falcon SC81 is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC81 is designed to meet the American Disabilities Act (ADA) and ANSI A117.1. The SC81 is ANSI/BHMA A156.4, grade 1 certified.

Model:Falcon SC81 HD/PA, SC81HD/PA, SC81-HD/PA, SC81HDPA, SC81 HD PA, SC81-HDPA
