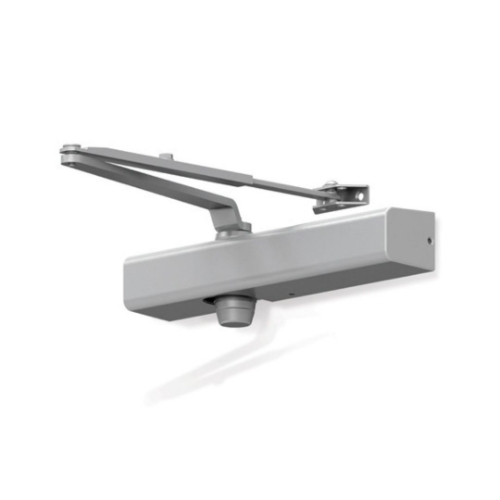

Falcon SC81A HW/PA Door Closer - Hold-open regular arm

Falcon SC81A HW/PA Door Closer -  Hold-open regular arm (Dor-O-Matic)

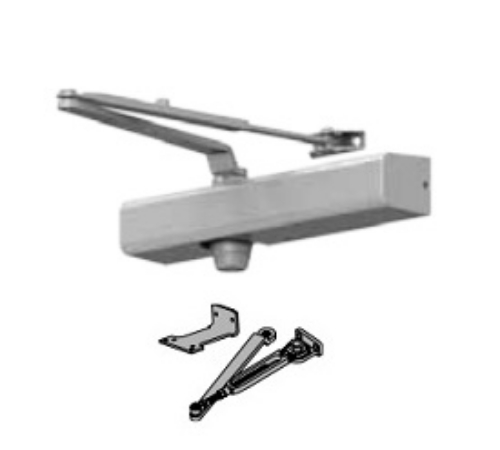

 non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration..

Standard features

-  Meets ANSI A117.1 - ANSI/BHMA A156.4, grade 1

• UL listed  - 1 1 ⁄4" diameter piston

• Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified.

• Fully adjustable sizes 1-6 - Single piece cast aluminum body

• Non-handed for left or right swinging doors -  Heat-treated steel piston

• Heat-treated pinion - Separate adjustable general speed, latch speed and backcheck

• Cover is high-impact UL listed fire retardant plastic that meets UL 10C and UBC 7-2 (1997) fire test

-  UL 10C approved fluid - Universal screw pack for aluminum, hollow metal, and wood doors

• 10-year warranty

Listings and certifications

The Falcon SC81 is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC81 is designed to meet the American Disabilities Act (ADA) and ANSI A117.1. The SC81 is ANSI/BHMA A156.4, grade 1 certified.

Model:Falcon SC81 HW/PA, SC81HW/PA, SC81-HW/PA, SC81HWPA, SC81 HW PA, SC81-HWPA
