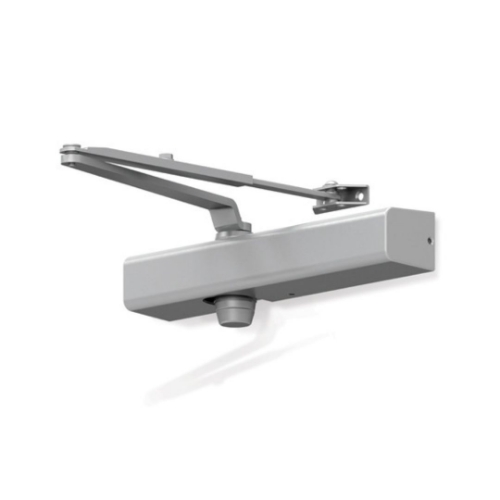

Falcon SC81A SS Door Closer - Spring N Stop, Attached PA Bracket

Falcon SC81A SS Door Closer - Spring N Stop, Attached PA Bracket (Dor-O-Matic)

Non-handed, stamped, heavy duty, parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.

Standard features

-  Meets ANSI A117.1 -  ANSI/BHMA A156.4, grade 1

- UL listed  -  1 1 ⁄4" diameter piston

- Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified.

- Fully adjustable sizes 1-6 - Single piece cast aluminum body

- Non-handed for left or right swinging doors  Heat-treated steel piston

- Heat-treated pinion   Separate adjustable general speed, latch speed and backcheck

- Cover is high-impact UL listed fire retardant plastic that meets UL 10C and UBC 7-2 (1997) fire test

-  UL 10C approved fluid  Universal screw pack for aluminum, hollow metal, and wood doors

- 10-year warranty

Listings and certifications

The Falcon SC81 is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC81 is designed to meet the American Disabilities Act (ADA) and ANSI A117.1. The SC81 is ANSI/BHMA A156.4, grade 1 certified.

Model: Falcon SC81 DS, SC81DS, SC81-DS, SC81DS, SC81 DS, SC81-RWPA
