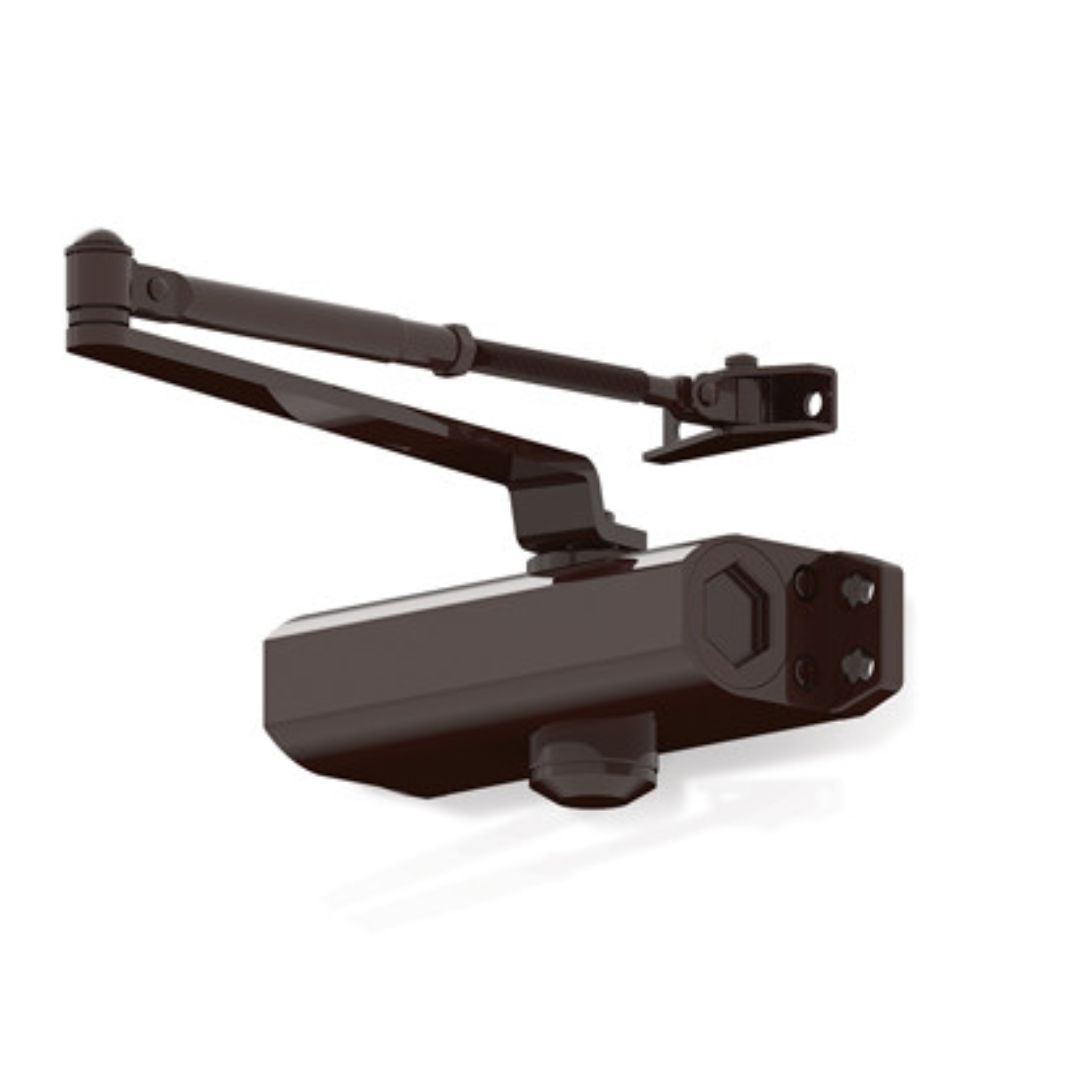

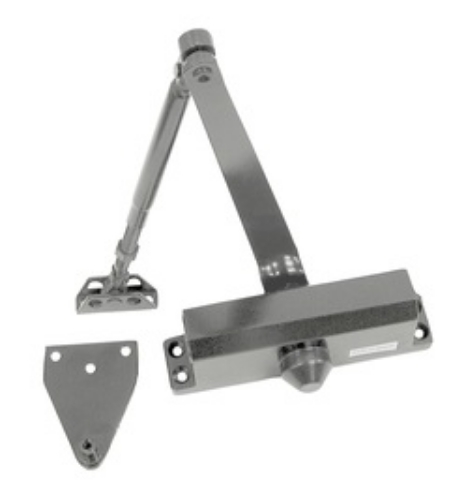

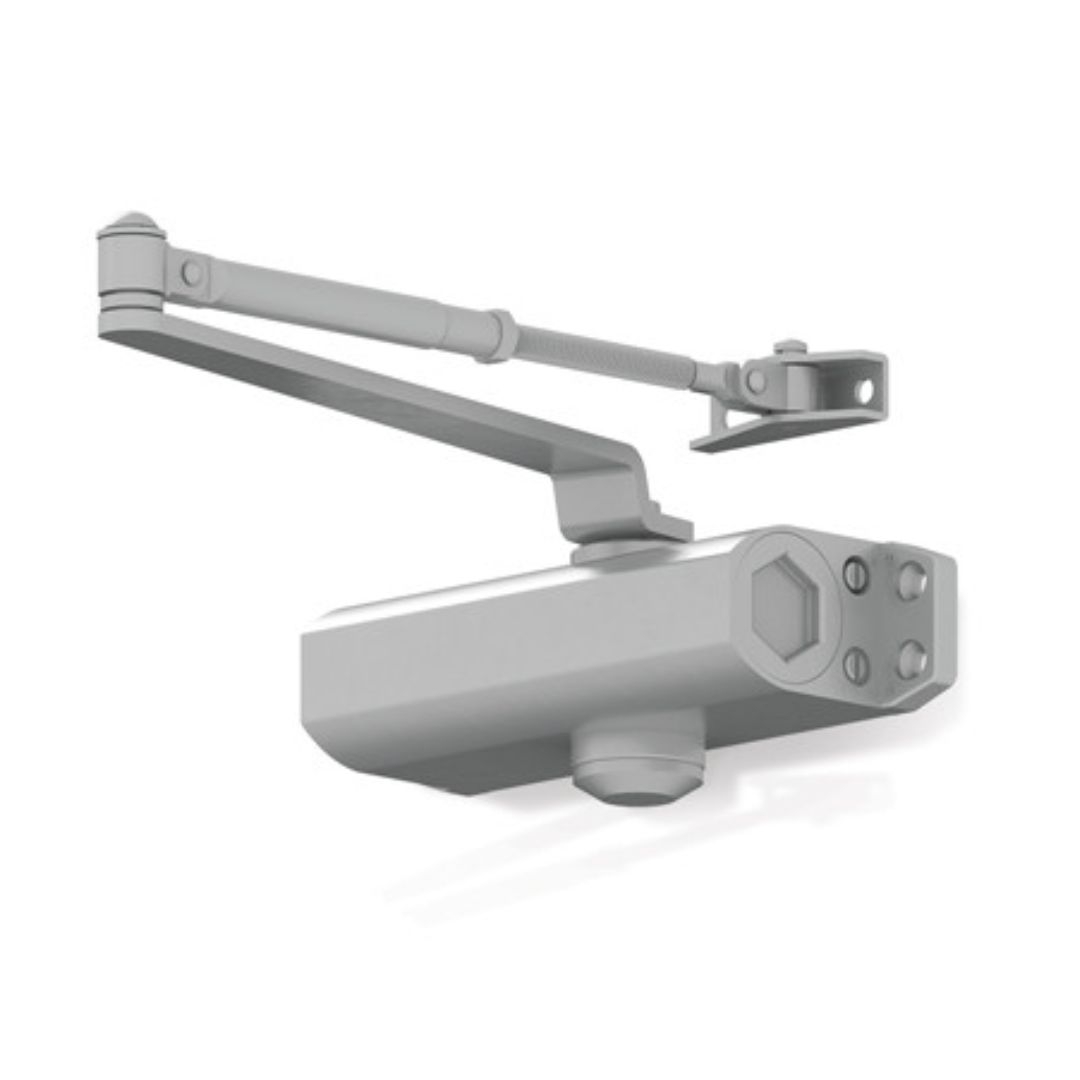

Falcon SC94A RWPA Light-Residential Duty Closer, Regular Arm, with PA Bracket, Less Cover

Falcon SC94A RwPA Light-Residential Duty Closer, Regular Arm, with PA Bracket, Less Cover

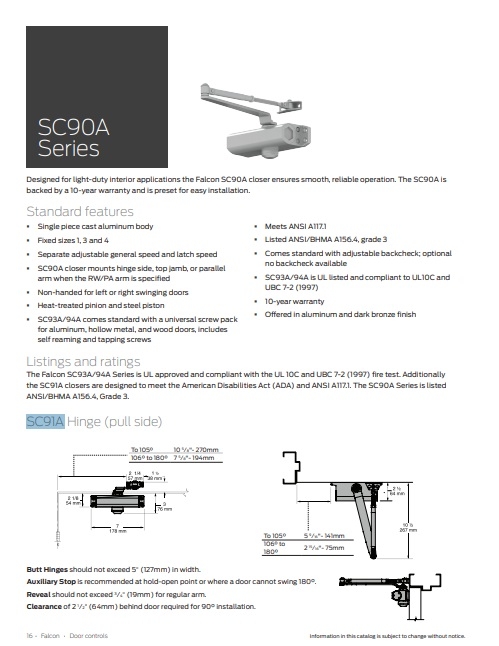

SC90 Standard features

-  Meets ANSI A117.1 -  ANSI/BHMA A156.4, grade 1

- UL listed  -Closer mounts hinge side, top jamb or parallel arm

- when either the RW/PA or HW/PA arm is specified.

- Fixed sizes 1, 3 & 4 -Single piece cast aluminum body

- Non-handed for left or right swinging doors

- Heat-treated steel piston -Adjustable backcheck

- Heat-treated pinion  - Separate adjustable general speed, latch speed and backcheck

-  UL 10C approved fluid -  Universal screw pack

 -10-year warranty

Listings and certifications

The Falcon SC91 Series is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally the SC90 Series is designed to meet the American Disabilities Act (ADA) and ANSI A117.1. The SC91 Series is ANSI/BHMA A156.4, Grade 3 certified.

Model: (Dor-O-Matic) Falcon SC94 RW/PA, SC94RW/PA, SC94-RW/PA, SC94RWPA, SC94 RW PA, SC94-RWPA
