Hes 1006 KD 630 Electric Strike - Fail secure - KD Faceplate - Satin Stainless Steel

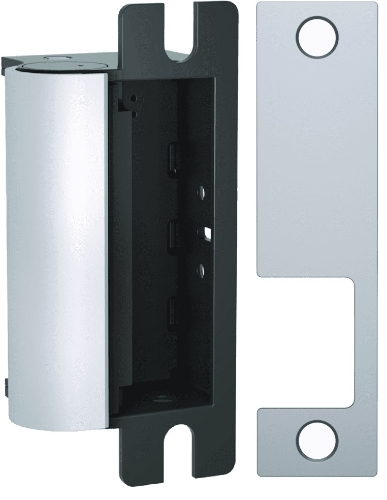

Picture of Hes 1006 KD 630 Electric Strike - Fail secure - KD Faceplate - Satin Stainless Steel

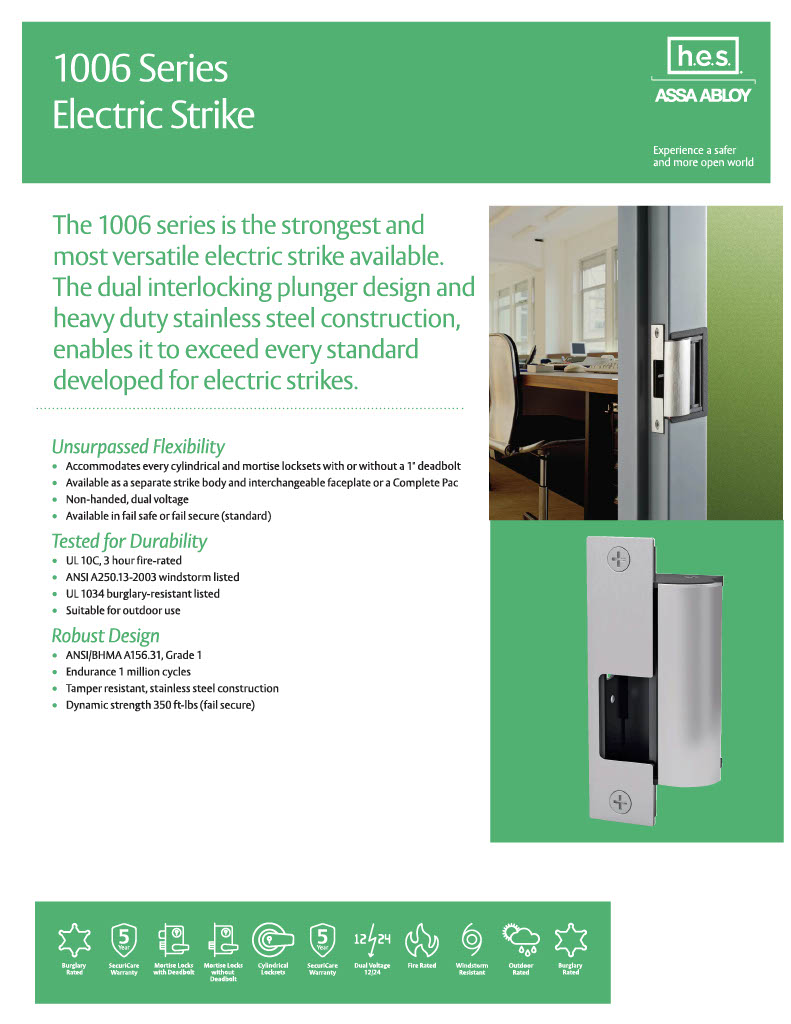

1-Page1-1006Series

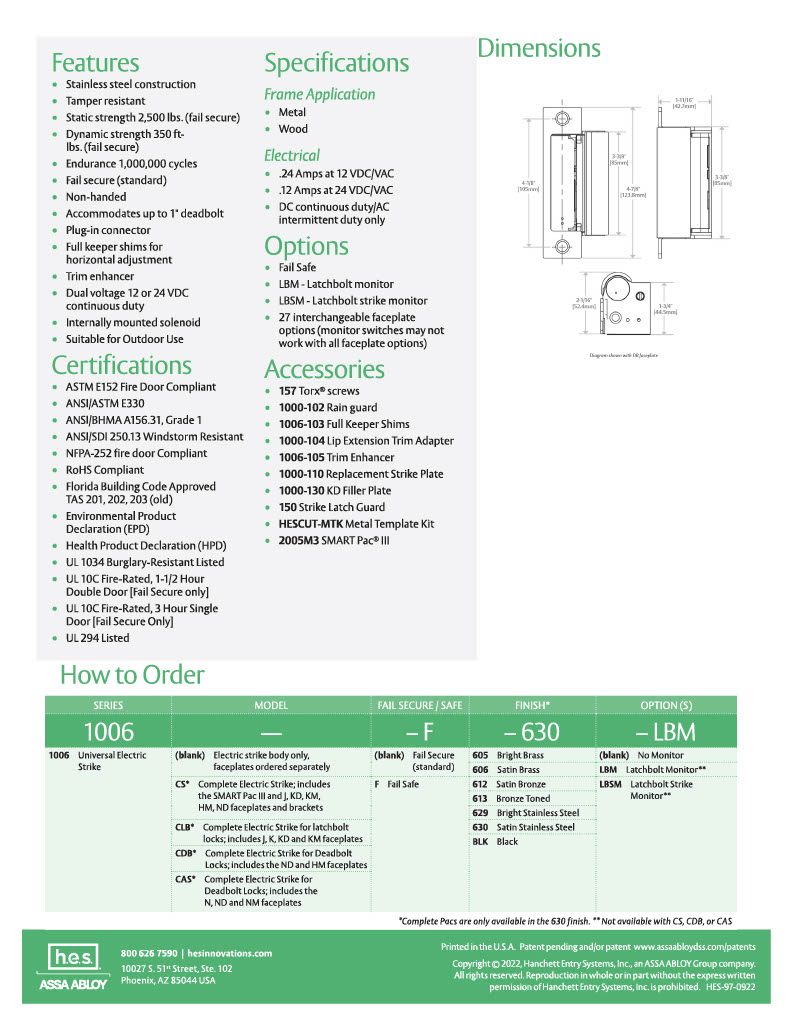

1-page2-1006Series
Picture of Hes 1006 KD 630 Electric Strike - Fail secure - KD Faceplate - Satin Stainless Steel
1-Page1-1006Series
1-page2-1006Series
naxt
prev

Product Details

Hes 1006-KD-630 Electric Strike - Fail secure - KD Faceplate - Satin Stainless Steel

For use with: Mortise locksets up to 3/4" throw latchbolt

Compatible locksets: Dorma 9500, Jackson, Sargent (7700 & 8100), Schlage, Yale (8700)

ANSI/BHMA Numbers: E09321, E09322, E09323

Features: The 1006 series is the strongest and most versatile electric strike available.

The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes.

With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate.

Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

 Stainless steel construction Tamper resistant Static strength 3070 lbs. (fail secure) Dynamic strength 350 ft-lbs. (fail secure) Endurance 1,000,000 cycles Fail secure (standard) Dual voltage 12 or 24VDC continuous duty Non-handed Internally mounted solenoid Accommodates up to 1" deadbolt Plug-in connector Full keeper shims for horizontal adjustment Trim enhancer Five year limited warranty

Frame Application: Metal - Wood

Electrical: .45 Amps at 12VDC continuous duty - .25 Amps at24VDC continuous duty

Finish: 630 - Satin Stainless Steel

Optional Features: LBM Latchbolt monitor - LBSM Latchbolt strike monitor

Model: HES, 1006 KD 630, Electric Strike

Hes 1006 KD 630 Electric Strike - Fail secure - KD Faceplate - Satin Stainless Steel

SKU: 1006 KD 630

In Stock
Picture for manufacturer HES
icon Chat

$510.15

About this item

The 1006 series is the strongest and most versatile electric strike. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes.

Resources

Hes 1006-KD-630 Electric Strike - Fail secure - KD Faceplate - Satin Stainless Steel

For use with: Mortise locksets up to 3/4" throw latchbolt

Compatible locksets: Dorma 9500, Jackson, Sargent (7700 & 8100), Schlage, Yale (8700)

ANSI/BHMA Numbers: E09321, E09322, E09323

Features: The 1006 series is the strongest and most versatile electric strike available.

The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes.

With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate.

Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

 Stainless steel construction Tamper resistant Static strength 3070 lbs. (fail secure) Dynamic strength 350 ft-lbs. (fail secure) Endurance 1,000,000 cycles Fail secure (standard) Dual voltage 12 or 24VDC continuous duty Non-handed Internally mounted solenoid Accommodates up to 1" deadbolt Plug-in connector Full keeper shims for horizontal adjustment Trim enhancer Five year limited warranty

Frame Application: Metal - Wood

Electrical: .45 Amps at 12VDC continuous duty - .25 Amps at24VDC continuous duty

Finish: 630 - Satin Stainless Steel

Optional Features: LBM Latchbolt monitor - LBSM Latchbolt strike monitor

Model: HES, 1006 KD 630, Electric Strike

Picture of Hes 1006 KD 630 Electric Strike - Fail secure - KD Faceplate - Satin Stainless Steel
Hes 1006 KD 630 Electric Strike - Fail secure - KD Faceplate - Satin Stainless Steel

Product code: 1006 KD 630

In Stock

$510.15

$510.15

 UL 10C fire-rated, 3 hour single door (fail secure only) UL 10C fire-rated, 1-1/2 hour double door (fail secure only) CAN4-S104 (ULC-S104) fire door conformant ANSI A250.13-2003 windstorm listed UL 1034 burglary-resistant listed and suitable for outdoor use ANSI/BHMA A156.31, Grade 1 NFPA-252 fire door conformant ASTM-E152 fire door conformant MEA New York City accepted Florida Building Code approved Patents Number: 6021038 & 6595564

Picture of Hes 1006 KD 630 Electric Strike - Fail secure - KD Faceplate - Satin Stainless Steel
Hes 1006 KD 630 Electric Strike - Fail secure - KD Faceplate - Satin Stainless Steel

Product code: 1006 KD 630

In Stock

$510.15

$510.15

Hes 1006 KD 630 Electric Strike - Fail secure - KD Faceplate - Satin Stainless Steel

SKU: 1006 KD 630
