Hes 1006CDB Electric Smart Strike - Complete for Deadbolt Locks

Hes 1006CDB Electric Smart Strike - Complete for Deadbolt Locks   - Fail secure (standard)

Features:

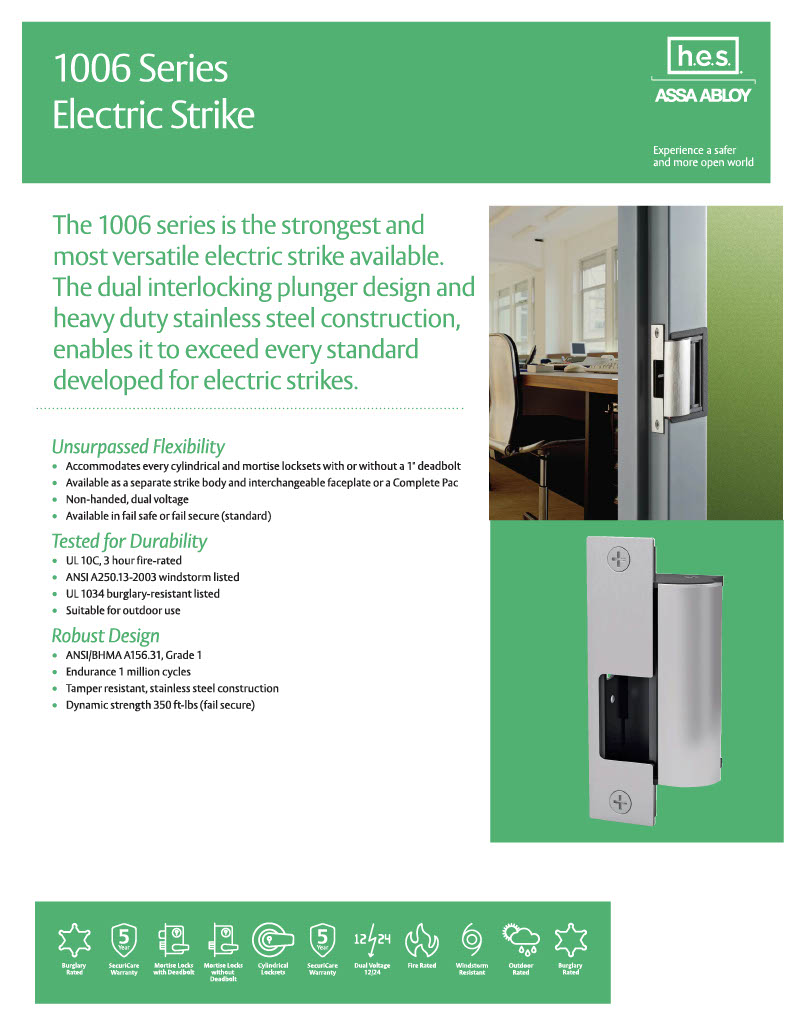

The 1006CDB is the electric strike for all deadbolt locks. This Complete One Box Solution includes all hardware necessary to fully accommodate every brand of lockset that has a 1" deadbolt and is designed to work with an ANSI 4-7/8" strike plate. The 1006CDB is the strongest and most versatile electric strike available. Truly in a class of its own

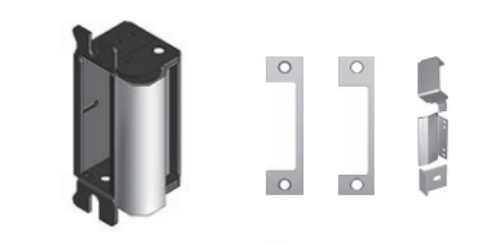

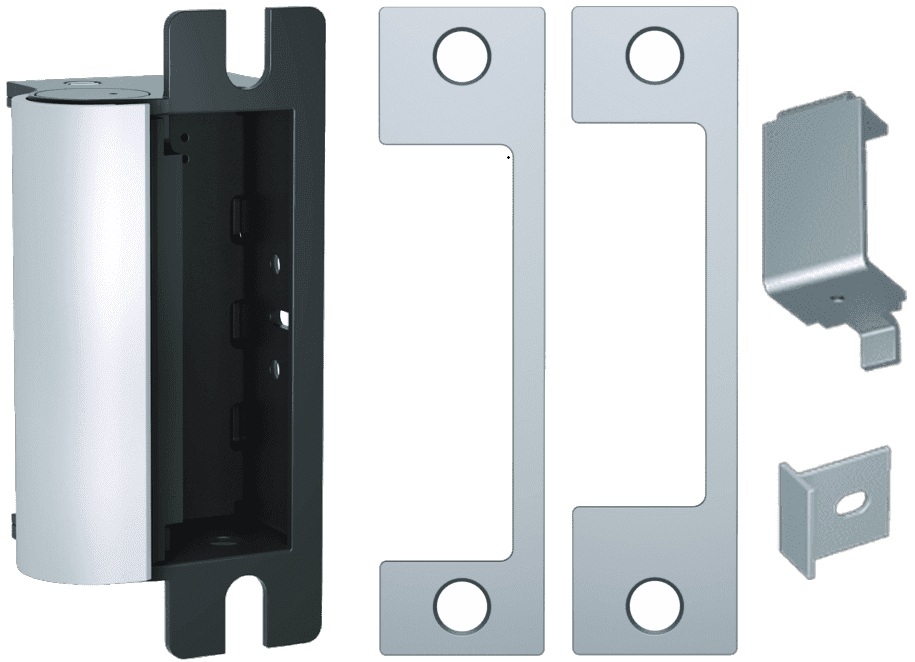

The 1006CDB includes the 1006 electric strike body plus faceplates and brackets that provide the same function as any of the following options: A Option, AD Option,  AM Option,  H Option,  HD Option, HM Option, HT Option,  HTD Option,  N Option,  ND Option,  NM Option, T Option,  TD Option

Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

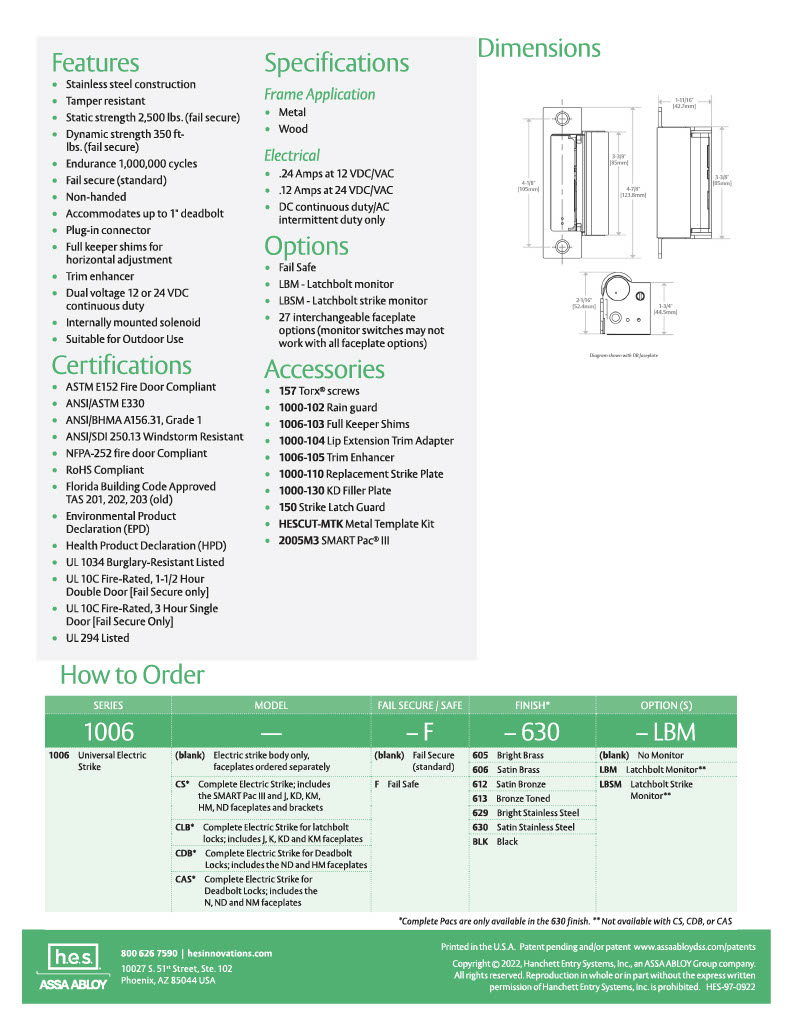

 Stainless steel construction Tamper resistant Static strength 3070 lbs. (fail secure) Dynamic strength 350 ft-lbs. (fail secure) Endurance 1,000,000 cycles Fail secure (standard) Dual voltage 12 or 24VDC continuous duty Non-handed Internally mounted solenoid Accommodates up to 1" deadbolt Plug-in connector Full keeper shims for horizontal adjustment Trim enhancer Five year limited warrantyFrame Application: - Metal - Wood

Electrical: - .45 Amps at 12VDC continuous duty -.25 Amps at24VDC continuous duty

Finish:605 - Bright brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 629 - Bright Stainless Steel, 630 - Satin Stainless Steel, BLK - Black

Optional Features:LBM Latchbolt monitor - LBSM Latchbolt strike monitor

Model:HES, 1006CDB605, 1006CDB6056 1006CDB612, 1006CDB613, 1006CDB629, 1006CDB630, 1006CDBBLK, Electric Strike

 UL 10C fire-rated, 3 hour single door (fail secure only) UL 10C fire-rated, 1-1/2 hour double door (fail secure only) CAN4-S104(ULC-S104) fire door conformant ANSI A250.13-2003 windstorm listed UL 1034 burglary-resistant listed and suitable for outdoor useANSI/BHMA A156.31, Grade 1 NFPA-252 fire door conformant ASTM-E152 fire door conformant MEA New York City accepted Florida Building Code approved Patents Number: 6021038 & 6595564
