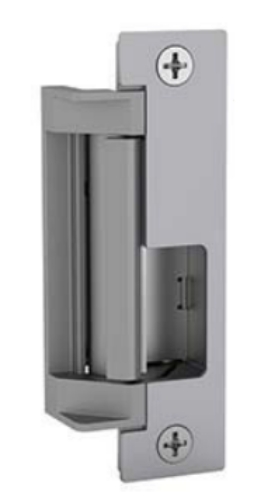

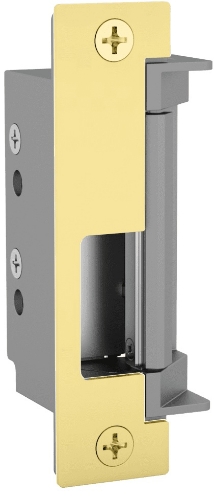

HES 4500C 606 Low Profile Fire-rated Electric Strike - Satin Brass

HES 4500C 606 Low Profile Fire-rated Electric Strike - Satin Brass

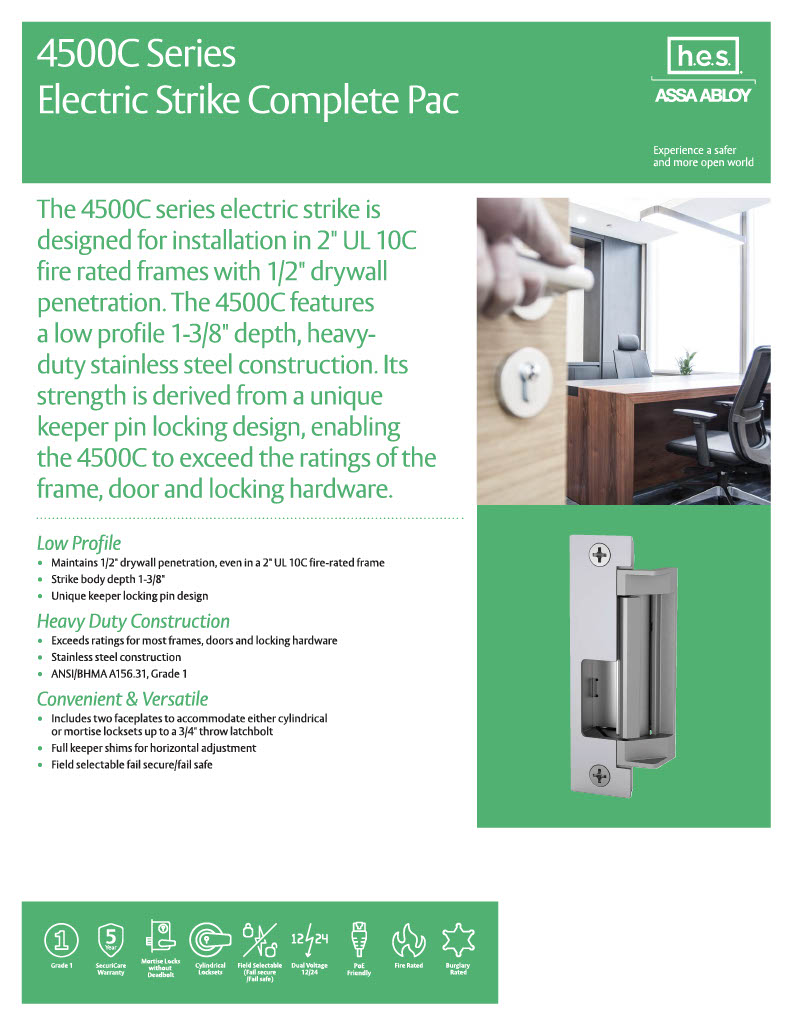

The 4500C series electric strike is designed for installation in 2" UL 10C fire rated frame with 1/2" drywall penetration.

The 4500C features a low profile 1-3/8" depth, heavy-duty stainless steel construction. Its strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware.

The 4500C includes two faceplates designed to accommodate either cylindrical or mortise locksets up to a 3/4" throw latchbolt.

Standard Features Stainless steel construction Tamper resistant Static strength 3,000 lbs. Dynamic strength 100 ft-lbs. Endurance 1,000,000 cycles Field selectable fail safe / fail secure Dual voltage 12 or 24 VAC/VDC Two faceplates provided to accommodate a variety of locksets Non-handed Internally mounted solenoid Accommodates up to a 3/4" latchbolt Strike body depth 1-3/8" Plug-in connector Trim enhancer Full keeper shims for horizontal adjustment Five-year limited warranty

Frame Application - Metal - Wood

Electrical - .24 Amps @ 12VDC/VAC - .12 Amps @ 24VDC/VAC - DC Continuous duty/AC intermittent duty only

Optional Features LBM - Latchbolt monitor LBSM - Latchbolt strike monitor

Finish:606 - Satin Brass

Model:HES, 4500C, 4500C606

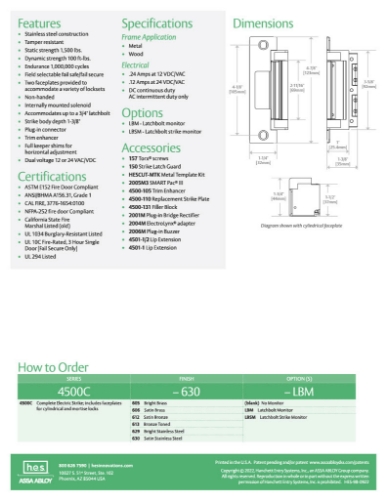

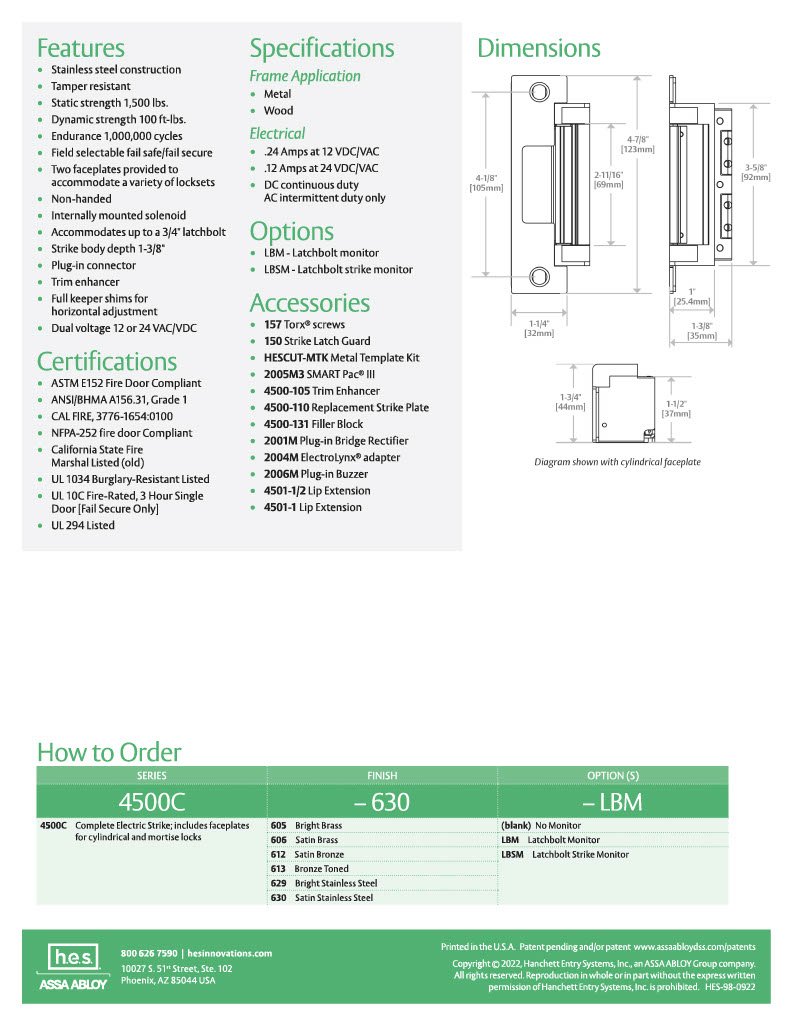

Specifications

 UL 10C fire rated, 3 hour (fail secure only) CAN4-S104 (ULC-S104) fire door conformant UL 1034 burglary resistant listed ANSI/BHMA A156.31, Grade 1 NFPA-252 fire door conformant ASTM-E152 fire door conformant California Fire Marshall listed Patent: 5,934,720
