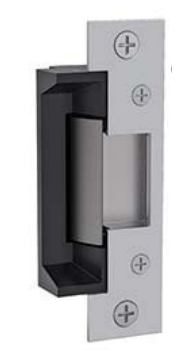

HES 5000C 630 Grade 1 low profile Complete Electric Strike for cylindrical locksets - Satin Stainless

HES 5000C 630 Grade 1 low profile Complete Electric Strike for cylindrical locksets - Satin Stainless

Includes the 501 and 501A face plates in the box

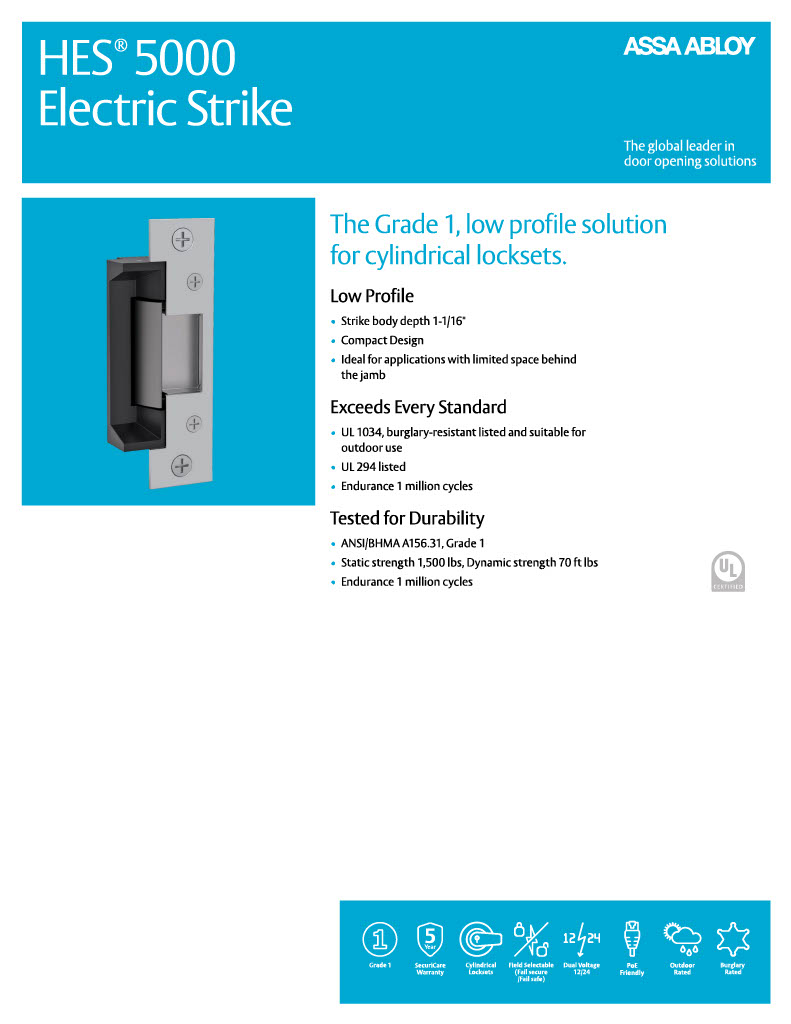

The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware.

This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

Frame application Metal, Wood

Electrical: .24 Amps @ 12VDC/VAC .12 Amps @ 24VDC/VAC DC continuous duty/AC intermittent duty only

Standard Features

Tamper resistant

Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs.

Endurance 500,000 cycles

Field selectable fail secure/ fail safe

Dual voltage 12 or 24 VDC/VAC

Non-handed

Internally mounted solenoid

Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)

Strike body depth 1-1/16"

Plug-in connector

Trim enhancer included

Five year limited warranty

Optional Features

LBM - Latchbolt monitor

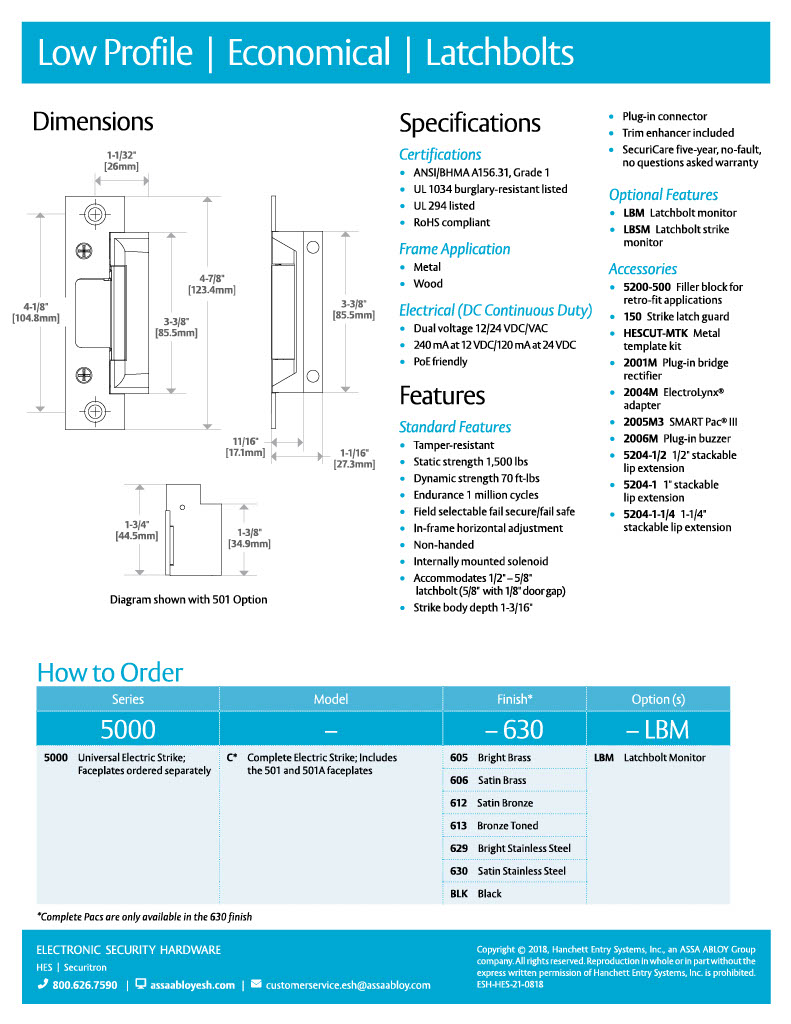

Faceplates 501 Option

Square corners and flat faceplate. For use with: Cylindrical locksets in ANSI metal jambs ANSI/BHMA Numbers: E09321, E09322, E09323

501A Option Radius corners and flat faceplate. For use with: Cylindrical locksets or spring latches used in aluminum frames. Includes universal mounting tabs. ANSI/BHMA Numbers: E09321, E09322, E09323

Model:HES, 5000C, 5000CLBM, 5000C630, 5000CLBM630,Electric Strike

Specifications

UL 1034 burglary-resistant listed and suitable for outdoor use ANSI/BHMA A156.31, Grade 1 MEA New York City accepted Patent #5,934,720
