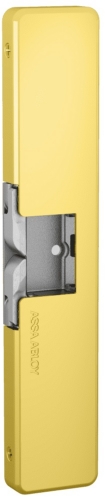

HES 9400-606 Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, 1/2" Thickness, Satin Brass

HES 9400-606 Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, 1/2" Thickness, Satin Brass

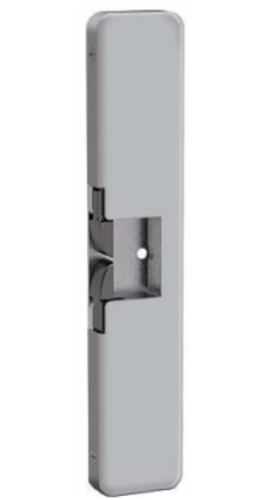

The 9400 series Genesis™ is a slim-line, surface mounted electric strike designed to accommodate rim exit devices with a 1/2" throw latchbolt.

All components are completely encased within its 1/2" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install.

An 1/8" spacer plate is provided to accommodate varying door gaps. The 9400 exceeds Grade-1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.

The 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks.

Frame application Metal, Wood

Standard Features

Completely surface mounted

Decorative cover for sleek new look

Stainless steel construction

Tamper resistant

Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs.

Endurance 500,000 cycles

1/8" spacer plate included

Field selectable fail safe/fail secure

Dual voltage 12 or 24 VDC

Horizontal adjustment

Non-handed

Internally mounted solenoid

Accommodates up to 1/2" pullman latch

Five year limited warranty

Optional Features

LBM - Latchbolt monitor

LBSM - Latchbolt strike monitor

Model: 9400606

Specifications

UL 1034 burglary-resistant listed and suitable for outdoor use

ANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732, #E09373)

Patent 6,390,520 & patent pending

Electrical

.45 Amps @ 12VDC continuous duty .25 Amps @ 24VDC continuous duty
