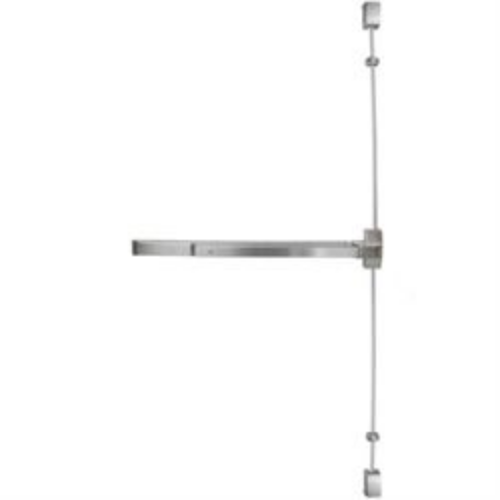

Imperial TH1100EDSVBARFA Fire Rated Reversible Surface Vertical Rod Exit Device - Aluminum

Imperial *(Global) TH1100EDSVBARFA Fire Rated Reversible Surface Vertical Rod Exit Device -Aluminum*

Mtaerial:Extruded anodized aluminum push bar, stainless steel springs

Latch:Top pullman type, Bottom bolt assembly

Door Height:7" standard

Backset:2 3/4" on 4 1/2" minimum stile width - if less than 4 1/2" backset becomes half of the exposed stile width

Strike:Top - surface mounted, Bottom - flat mortise or into threshold, vertical/rim application use DBLST double dr. strike

Projection:2 1/2" - 1 7/8" dogged

Stile:4 1/2" minimum

Handing:Reversible, non-handed

Door Thickness:1 3/4" standard

Door Width:36", can be field sized to 30"

Mounting Height:Recommended installation at 41" from finished floor to center line of push rail

Fasteners:Furnished with sheet metal and machine screws

Cylinder:Accepts rim, all trims Schlage "C" keyway

Grade:ANSI A156.3 Grade 2

Finishes:Aluminum

Warranty:10 years

Model:Imperial TH1100EDSVBARF, TH1100EDSVBARFA, SURFACE VERTICAL ROD TOUCH BAR FIRE AL
