Door Hinges
Continuous Hinges
Ives Continuous Geared Hinges
Ives 711HT 83 US32D Pin and Barrel Continuous Hinge, UL Listed, 83", Hospital Tips, Swing Clear Flush Mount

Ives 711HT 83 US32D Pin and Barrel Continuous Hinge, UL Listed, 83", Hospital Tips, Swing Clear Flush Mount

Product Details

Ives 711HT 83 US32D Pin and Barrel Continuous Hinge, UL Listed, 83", Hospital Tips, Swing Clear Flush Mount

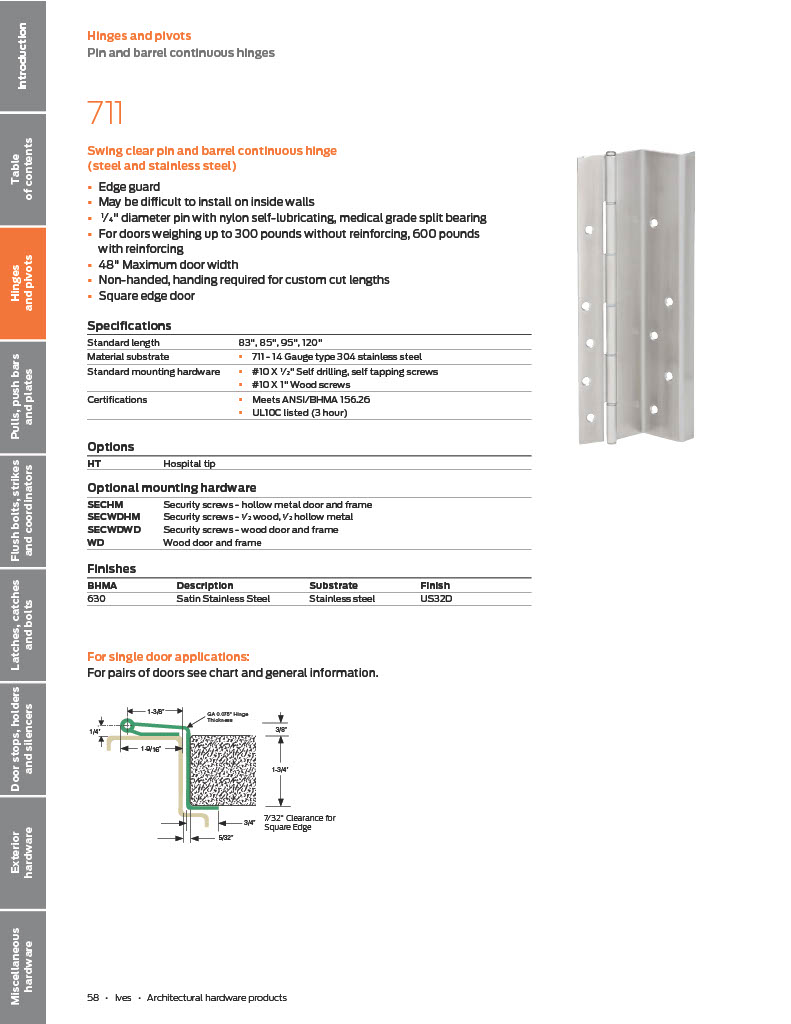

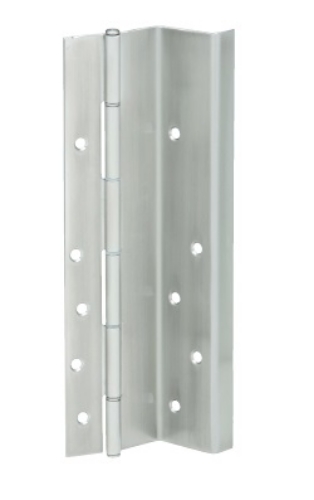

711 - Swing clear pin and barrel continuous hinge - stainless steel

Edge guardMay be difficult to install on inside walls1/4" diameter pin with nylon self-lubricating, medical grade split bearingFor doors weighing up to 300 pounds without reinforcing. 600 pounds with reinforcing48" Maximum door widthNon-handed, handing required for custom cut lengthsSquare edge doorCertifications:

Meets ANSI 156.26UL10C certifiedStandard lengths: 83", 85", 95", 120"

Standard mounting hardware:

10 X 1/2" Self drilling, self tapping screws10 X 1" Wood screwsMaterial: 711 - 14 Gauge Type 304 stainless steel

Finish:630 - Satin stainless steel - US32D

Ives 711HT 83 US32D Pin and Barrel Continuous Hinge, UL Listed, 83", Hospital Tips, Swing Clear Flush Mount

Name: Ives 711HT 83 US32D Pin and Barrel Continuous Hinge, UL Listed, 83", Hospital Tips, Swing Clear Flush Mount
SKU: 711HT
Price: 678.59 USD
Availability: InStock

SKU: 711HT

In Stock

Chat

$678.58

About this item

Ives Continuous Hinges are designed to last the life of the building. The unique design distributes the weight of the door along the entire length of the frame, reducing the high amount of stress normally associated at top of door and frame on butt hinge applications. Not only does this reduce hinge failure, it also keeps your door in constant alignment, eliminating the chance of door sag. These characteristics make continuous hinges suitable for high use/high traffic doors.

The design of a continuous hinge eliminates the gap between the door and the frame. The absence of gap also helps prevents finger from being pinched, making it a safer device than traditional hinges. These benefits result in higher efficiency and less maintenance, maximizing the value of your opening investment.
