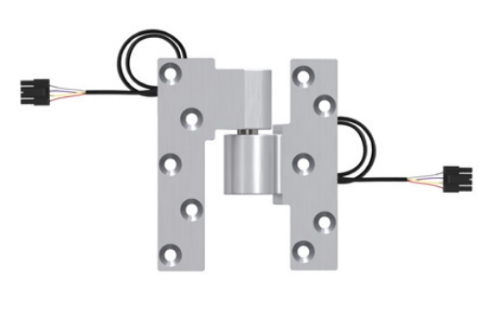

Ives 7227PT INT TW4 US26D Intermediate Pivot, 3/4" Offset, 4-Wire Power Transfer, Satin Chrome

Ives 7227PT INT TW4 US26D Intermediate Pivot, 3/4" Offset, 4-Wire Power Transfer, Satin Chrome

7227 - Ul Listed 20 minute fire doors

Non-handed

Top, header mount

Bottom, base plate mount

Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"

Maximum door load 700 pounds

Vertical adjustment range 3/16", with positive locking

Model: Ives 7227-INT, 7227INT, 7227SP28, 7227SP313, 7227US3, 7227 INT SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, US3 - Bright Brass
