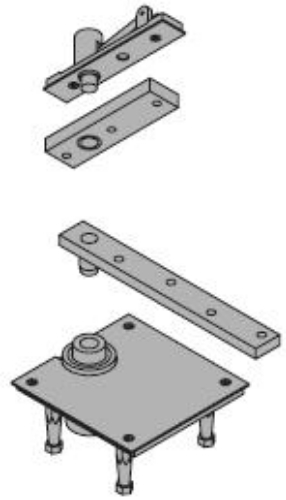

Ives 7256-SET Center Hung Pivot Set

Ives 7256 SET Center Hung Pivot Set

Non-Handed

Top, header mount

Bottom, base frame mount

Easy installation tilt on bearing and bearing pin.

Use with 1-3/4" minimum door thickness.

Adjustable floor to door clearance 3/16" to 3/4", consult factory if greater than 3/4".

Maximum door load 600 pounds

Vertical adjustment range 3/16", with positive locking

Model:Ives 7256-SET, 7256SET, 7256SETSP28, 7256SETSP313, 7256SETUS10, 7256SETUS10B, 7256SETUS26, 7256SETUS26D, 7256SETUS3, 7256SETUS4, 7256 SET SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, SPBLK - Black Painted, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass
