About this item

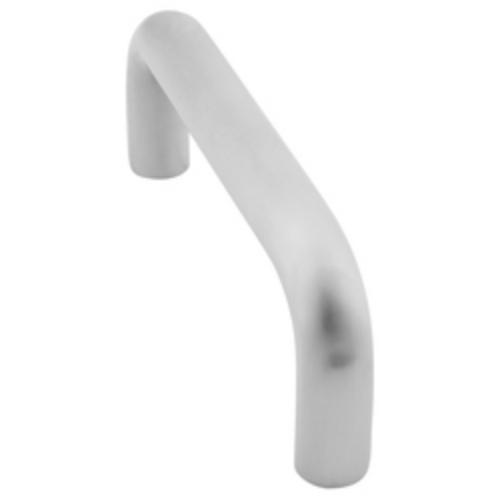

The Ives 8102HD-0 is a commercial-grade straight door pull with a 3/4" round profile, 10" center-to-center mounting, and 1-1/2" clearance from the door face. It's machined from solid bar stock, certified to ANSI A156.06, and built for high-traffic applications in offices, schools, hospitals, government buildings, and retail environments where architectural hardware needs to handle daily use without loosening or showing wear. Nine finish options are available including satin stainless steel in both 304 and 316 series, and multiple mounting configurations accommodate doors from 1-3/4" to 2-1/4" thick.
What the 8102HD-0 specifications mean for your installation
The HD designation stands for heavy duty, and it's reflected in both the bar stock construction and the mounting hardware. The pull body is machined from solid bar stock rather than hollow tubing or cast hollow sections, which gives it the rigidity needed to handle lateral force from repeated pulling without flexing or developing play over time. The 3/4" diameter is the standard commercial round pull profile, suited to ADA-compliant grip requirements under ANSI A117.1 and California Title 24.

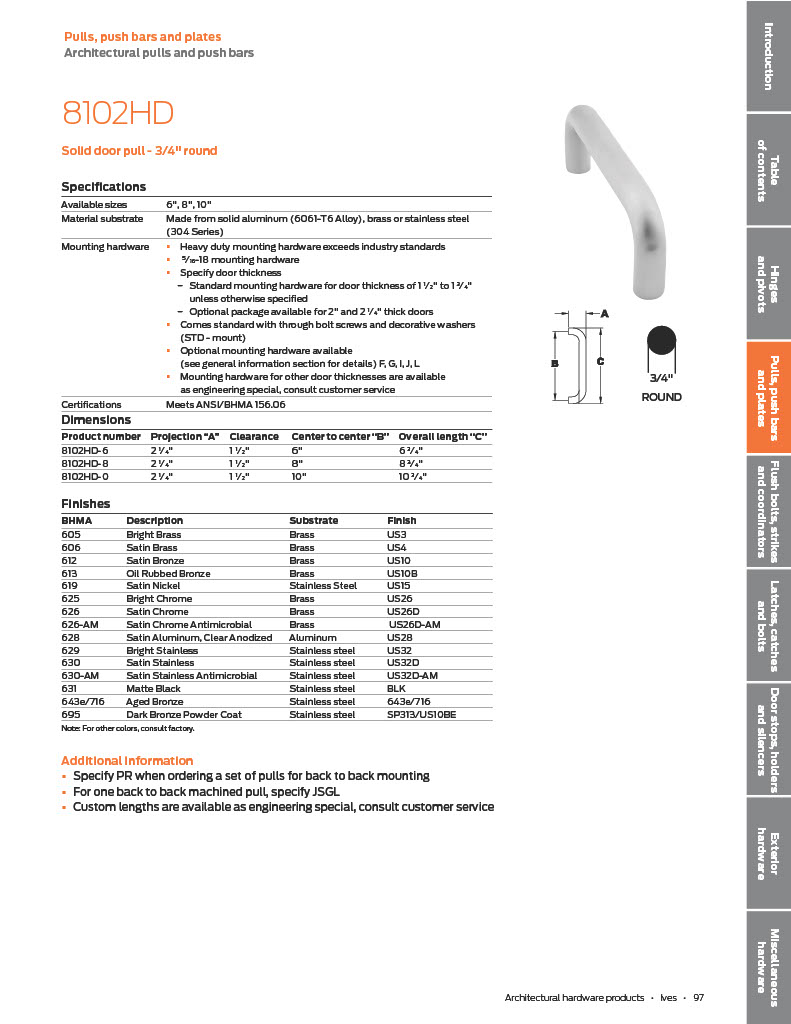

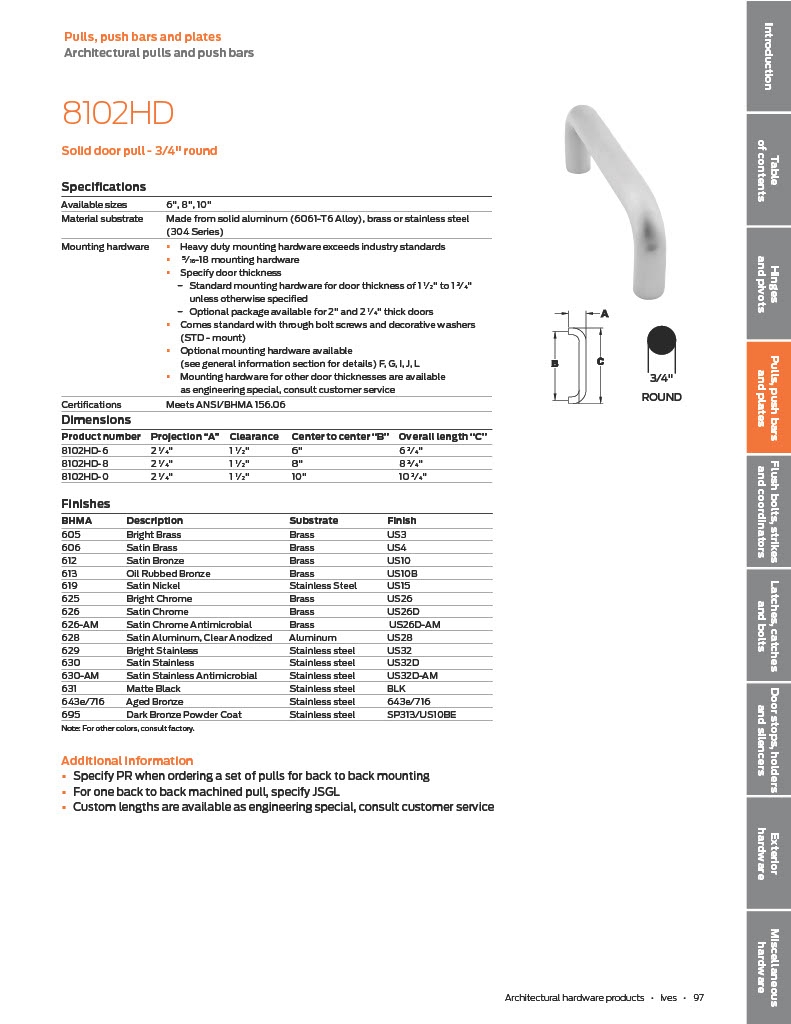

The 10" center-to-center dimension refers to the distance between the mounting holes, not the overall pull length. Overall length on the 8102HD-0 is 10-3/4", with the extra 3/4" accounting for the return ends at each mounting point. Projection from the door face is 2-1/4", and clearance between the pull and the door surface is 1-1/2". Standard mounting hardware ships with every pull: two 1/4-20 x 2-1/4" oval head machine screws and two No. 14 countersunk washers, both plated to match the selected finish. This hardware suits standard 1-3/4" doors. For doors at 2" or 2-1/4" thick, longer screws are available at ordering.
Mounting configurations and door type compatibility
The 8102HD-0 is available in four mounting configurations. Single pull thru-bolt is the standard configuration for wood and hollow metal swing doors, where the screws pass through the door face and are secured from the back. The concealed metal door configuration uses blind tapped holes in the pull returns and a specialized mounting plate, which is the correct setup for hollow metal doors where visible through-bolts aren't acceptable. The concealed wood door configuration uses a different fastener arrangement suited to solid wood doors with a finished interior face. The back-to-back configuration pairs two pulls on opposite door faces using a single set of longer through-bolts, which is the correct specification for glass doors and frameless entrances where a single-sided pull would be structurally inadequate.
When specifying the mounting configuration, confirm the door construction type before ordering. The thru-bolt configuration is the most commonly stocked. The concealed and back-to-back configurations may require factory ordering or different hardware kits.
Finish options and the 8102HD series size range
Nine finishes are available on the 8102HD-0: B3 bright brass (605), B4 satin brass (606), B10 satin bronze (612), B10B oil rubbed bronze (613), B15 satin nickel (619), B26 bright chrome (625), B26D satin chrome (626), PA28 satin aluminum (628), and S32D satin stainless steel (630). The satin stainless option is available in both 304 and 316 series, with 316 the correct choice for coastal and high-humidity environments where chloride exposure is a factor.
The 8102HD-0 is the 10" CTC model in the series. The 8102HD-6 covers 6" CTC and the 8102HD-8 covers 8" CTC for openings where a shorter pull is specified. For openings requiring a heavier 1" diameter profile, the 8103HD series covers the same CTC sizes. For the complete range of Ives architectural pull options, browse the Ives door pulls catalog. The full door pulls section covers options from other manufacturers. For openings that also require push plates on the opposite door face, those are available separately and can be specified to match the same finish.
Select your finish and mounting configuration when ordering. Confirm door thickness and door construction type before specifying the mounting hardware configuration.
