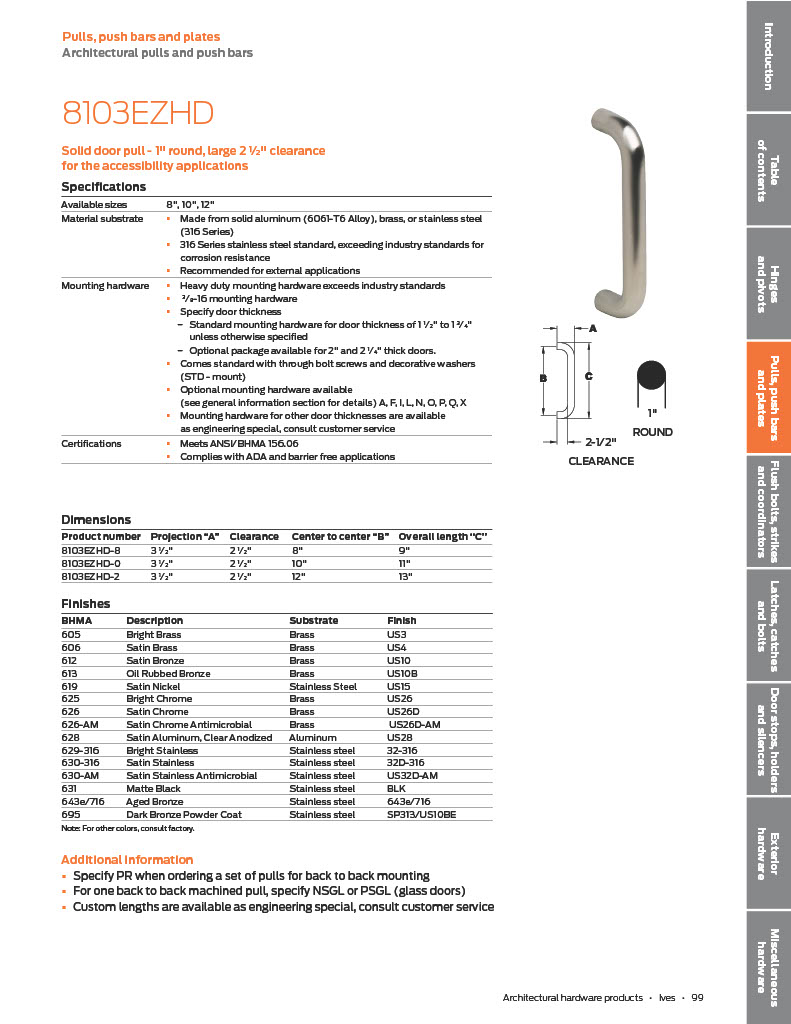

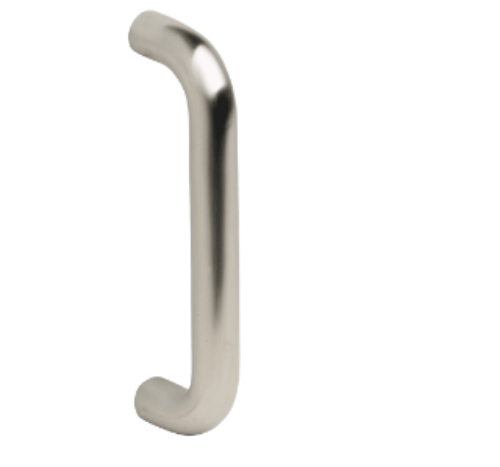

Ives 8103EZHD-8 Straight Door Pull, 8" CTC, 1" Diameter, 2-1/2" Clearance

The Ives 8103EZHD-8 is a commercial straight door pull with a 1" round profile, 8" center-to-center mounting, and a 2-1/2" clearance between the pull and the door face, specifically designed for accessibility applications. The EZ designation identifies the extended clearance, which is what separates this model from the standard 1-1/2" clearance on the 8103HD series. Overall length is 9" with a 3-1/2" projection. Seven architectural finishes are available and standard mounting hardware for 1-3/4" doors ships with every unit.

Why the 2-1/2" clearance matters for accessibility compliance

Clearance on a door pull refers to the distance between the grip surface and the door face. The extended 2-1/2" clearance on the 8103EZHD-8 is the key specification that makes this pull appropriate for ADA and accessibility-driven hardware schedules. The larger clearance allows a full hand wrap around the pull without the knuckles contacting the door surface. For people with limited hand dexterity or grip strength, the extra clearance makes the pull operable without requiring a tight pinch grip, which is a core accessibility requirement under ANSI A117.1.

This distinction from the standard 8103HD series with 1-1/2" clearance is worth specifying on the hardware schedule when the project is subject to ADA compliance review or when the Authority Having Jurisdiction reviews pull clearance as part of the accessibility plan check. On projects where pulls are required to meet operable hardware standards with minimum clearance requirements, the 8103EZHD series is the specified solution. The 8103HD standard clearance series is appropriate for applications where accessibility clearance is not a review criterion.

Pull dimensions and how 1" diameter differs from 3/4" round pulls

The 1" diameter round profile on the 8103EZHD-8 is heavier than the 3/4" profile on the 8102 series, which changes the visual weight and grip ergonomics of the pull. The larger diameter provides a more substantial grip surface, which suits high-traffic commercial entrances and institutional facilities where the pull needs to handle both the physical demands of heavy use and the visual expectations of an architectural hardware specification. The 3-1/2" projection on the 8103EZHD-8 is also greater than the 2-1/4" projection on the standard 8102HD series, which contributes to the extended clearance measurement.

Projection and clearance are related but different dimensions. Projection is the distance from the door face to the centerline of the pull bar. Clearance is the usable space between the door face and the nearest edge of the pull bar. On a 1" diameter pull, clearance equals projection minus half the pull diameter. Getting both dimensions right on the hardware schedule ensures the pull physically fits the door prep and meets the accessibility clearance requirement simultaneously.

Finish options and EZHD series size range

Seven finishes are available on the 8103EZHD-8: B3 bright brass (605), B4 satin brass (606), B10 satin bronze (612), B10B oil rubbed bronze (613), B26 bright chrome (625), B26D satin chrome (626), and S32D satin stainless steel (630). The satin stainless 630 is the correct specification for exterior or coastal applications where corrosion resistance is required.

The 8103EZHD series is available in three CTC sizes: 8103EZHD-8 at 8" CTC, 8103EZHD-0 at 10" CTC, and 8103EZHD-2 at 12" CTC. For the same 1" diameter profile with standard 1-1/2" clearance, the 8103HD series covers those same CTC dimensions. The full range of Ives commercial pull options including both standard and extended clearance configurations is available in the door pulls section. For coordinating architectural door trim including push plates in matching finishes, browse the architectural door trim catalog. For a complete overview of Ives pull models by diameter and clearance, the Ives door pulls page covers the full lineup.

Select your finish and confirm your door thickness before ordering. Verify your project's accessibility clearance requirement before choosing between the EZHD extended clearance and HD standard clearance variants.
