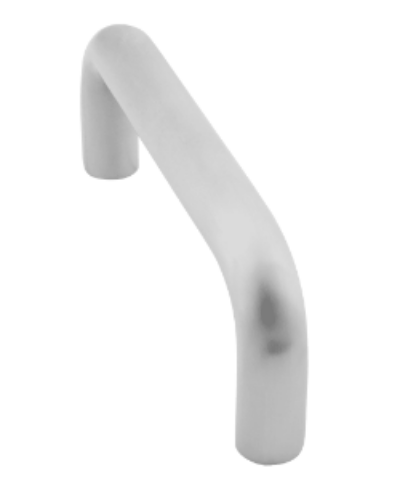

Ives 8102HD-8 Straight Door Pull, 8" CTC, 3/4" Diameter, 1-1/2" Clearance

Ives 8102HD-8 - 8" Door Pull - 3/4" Round

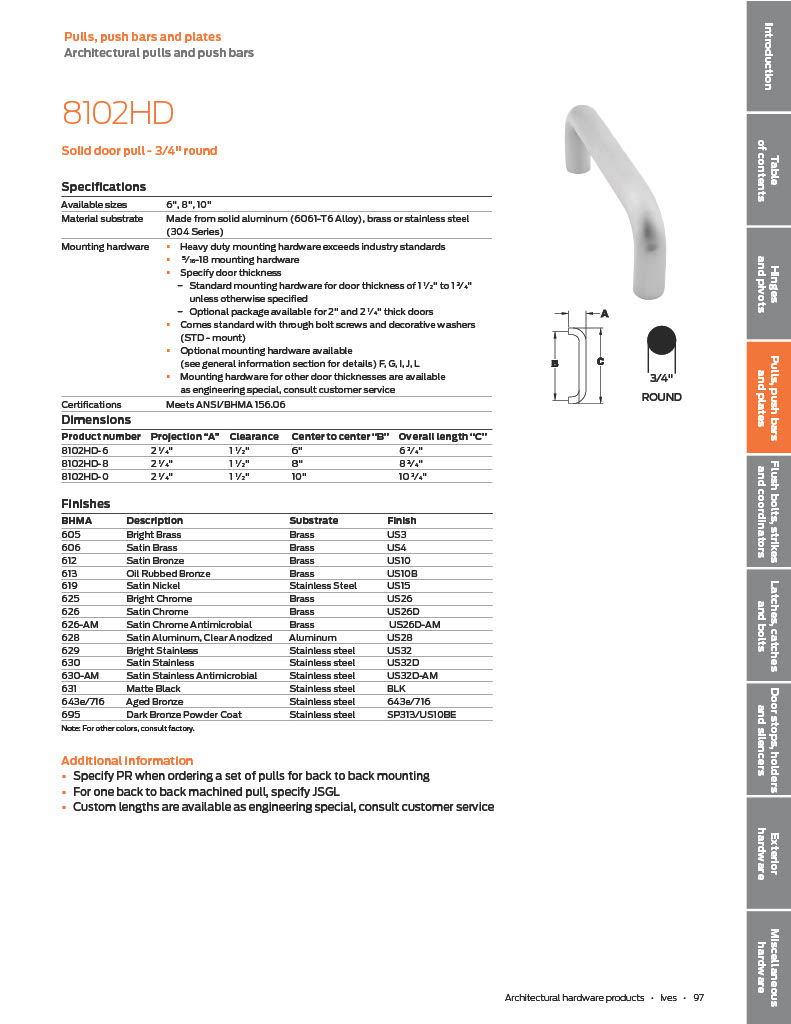

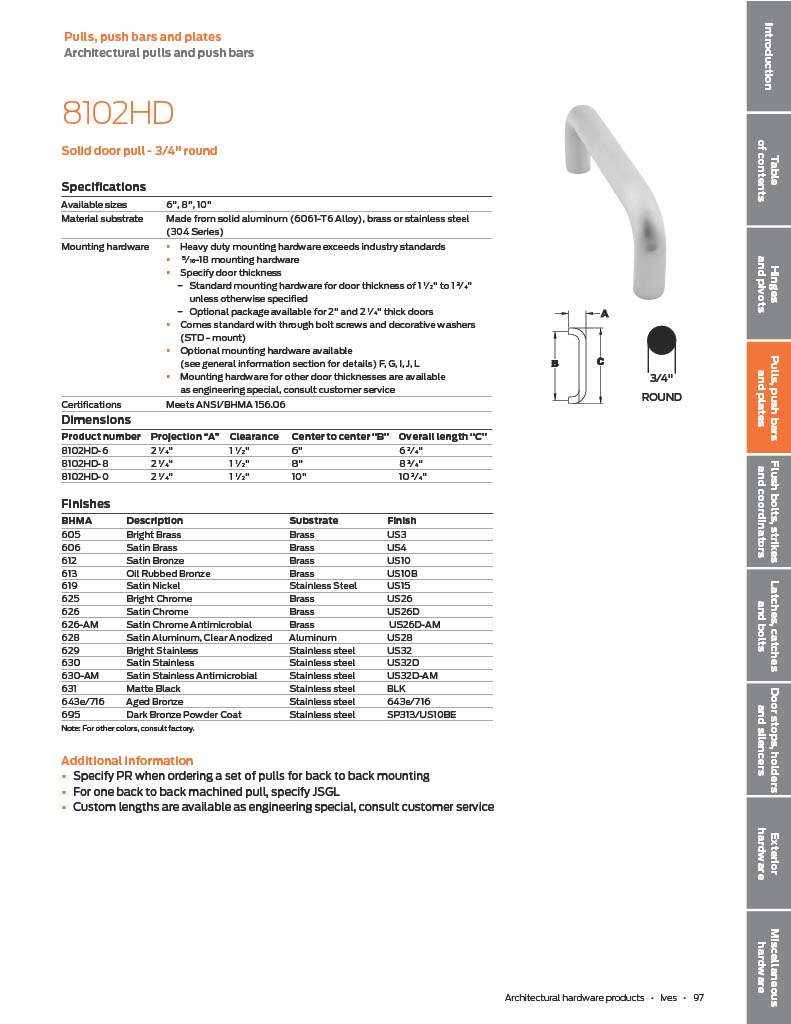

**Dimensions

**

Projection "A" -2-1/4"

Clearance - 1-1/2"

Center to Center "B" - 8"

Overall Length "C" - 8-3/4"

Standard Mounting

All mounting hardware is for standard 1-3/4" door.

(2) 1/4-20 x 2-1/4" brass, oval head machine screws; plated to match.

(2) No. 14 countersunk washers; plated to match

*Finish: *B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B10B (US10B) Dark Bronze, Oil Rubbed (613) B15 (US15) Satin Nickel, Clear Coat (619) B26 (US26) Bright Chrome (625) B26D (US26D) Satin Chrome (626) PA28 (US28) Satin Alumimum, Clear Anodized (628) S32D (US32D) Satin Stainless Steel (630)

Model: 81028 8102-8, 81028US3, 81028US4, 81028US10, 81028US10B, 81028US15, 81028US26, 81028US26D, 81028US28, 81028US32D, 81028B3, 81028B4, 81028B10, 81028B10B, 81028B15, 81028B26, 81028B26D, 81028PA28, 81028S32D
