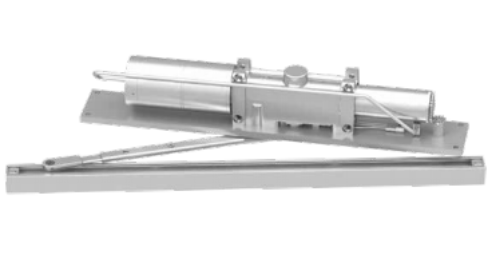

LCN 2613 STD Auto Equalizer Pneumatically Powered Concealed Mounting Operator - Size 3

LCN 2613 STD Auto Equalizer Pneumatically Powered Concealed Mounting Power Operator - Size 3 - (part of LCN 2610 series)

Size 3- Interior door width 30" (762mm) to 38" (965mm)

For interior or exterior doors

Single acting cylinder in head frameConcealed arm and track in door top rail

Requires control box with integral compressor or control box using auxiliary air supply.

Certifications Grade:1

ANSI A117.1, A156.19 UL228, ADA, 100 Hour Salt Spray, Meets BAABuy American Act

Body Construction:Cast Iron Body

Full Complement Bearing1-1/2˝ Diameter Piston11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood and machine screws

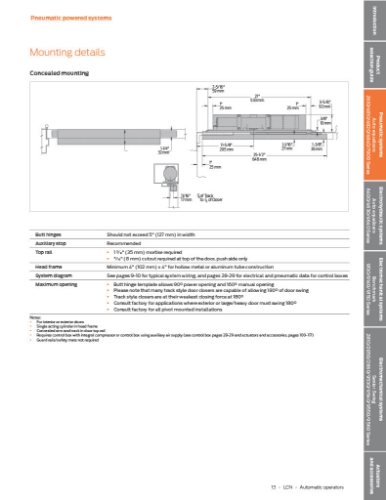

Mounting:Concealed, in frame

Head Frame:Minimum 4˝ (102 mm) x 4˝ for hollow metal or aluminum tube construction

Top Rail:1-3/8˝ (35 mm) mortise required

5/16˝ (8 mm) cutout required at top of the door, push side only

Warranty:2 years
