LCN 6035 - Bumper, Concealed (in tube) Double Acting Door Closer - Size 5

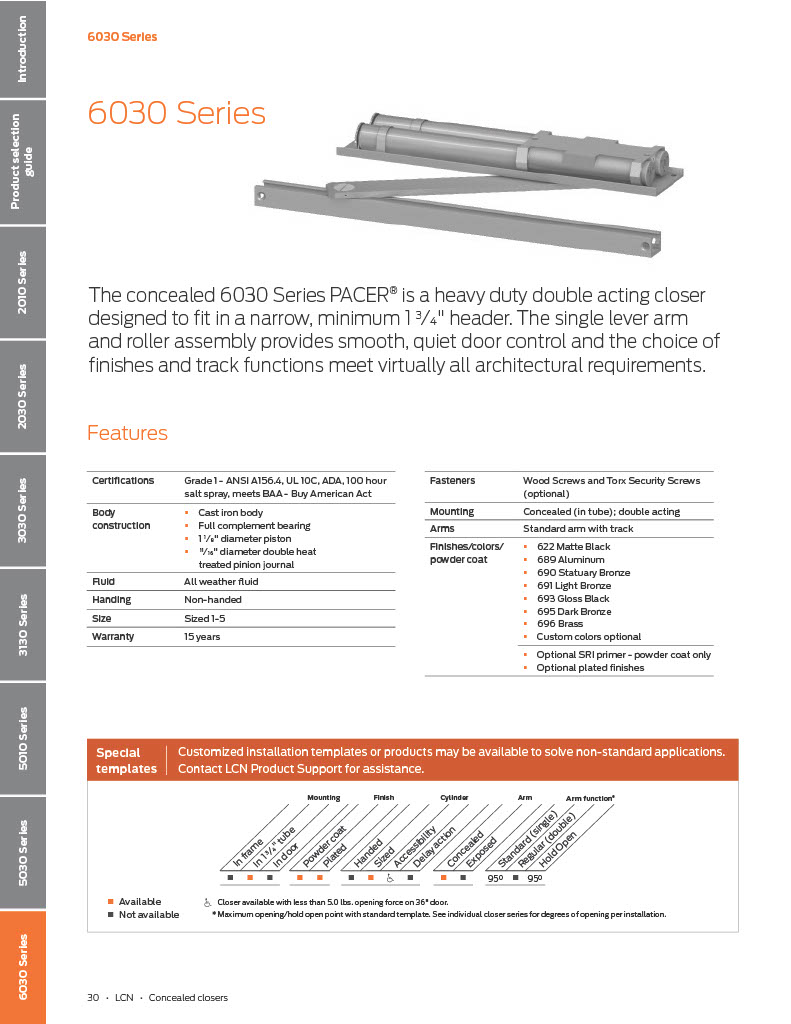

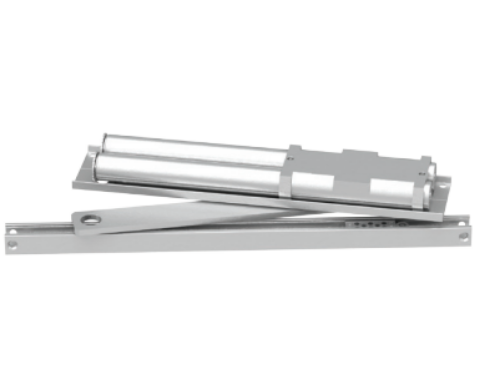

LCN 6035 Concealed (in tube) Double Acting Door Closer - Size 5

Notes:  For interior or exterior doors  Double acting cylinder in cased frame  Concealed arm and track in door top rail  Center pivots only(not included)

Size 5: Exterior (and Vestibule) door width - 36˝ (914mm) to 42˝ (1067mm), Interior door width - 48˝ (1219mm) to 54˝ (1372mm)

Handing:Non-Handed

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

Door Width:30˝ (762 mm) minimum with 1-3/4˝ (44 mm) pivot centers

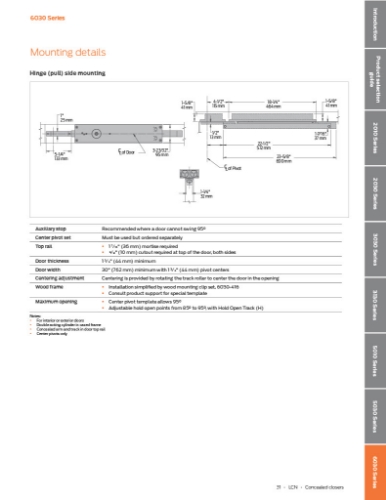

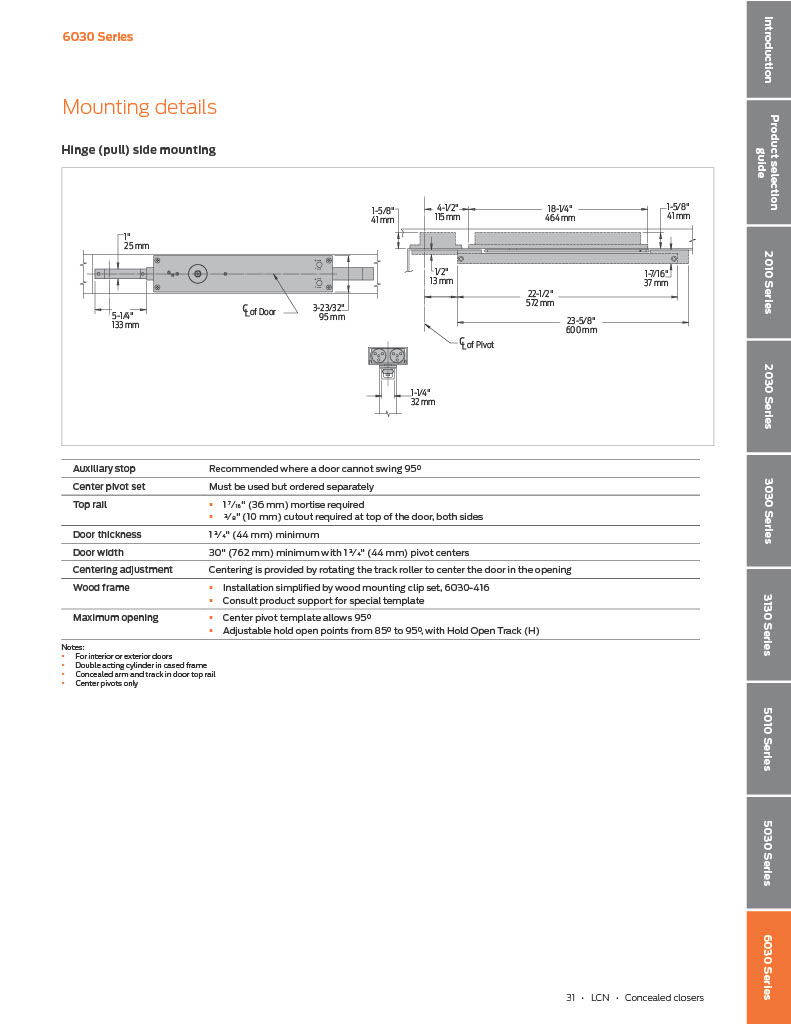

Top Rail :1-7/16˝ (36 mm) mortise required - 3/8˝ (10 mm) cutoutrequired attop ofthe door, both sides.

Door Thickness:Maximum 1-3/4˝ (44 mm),

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 6030, 6035-BUMPER, 6035BUMPER 6035-AL AL
