LCN 6440 DB 695 COMPACT Low Energy Auto Operator Module Kit, Dark Bronze Painted Finish
Product Details

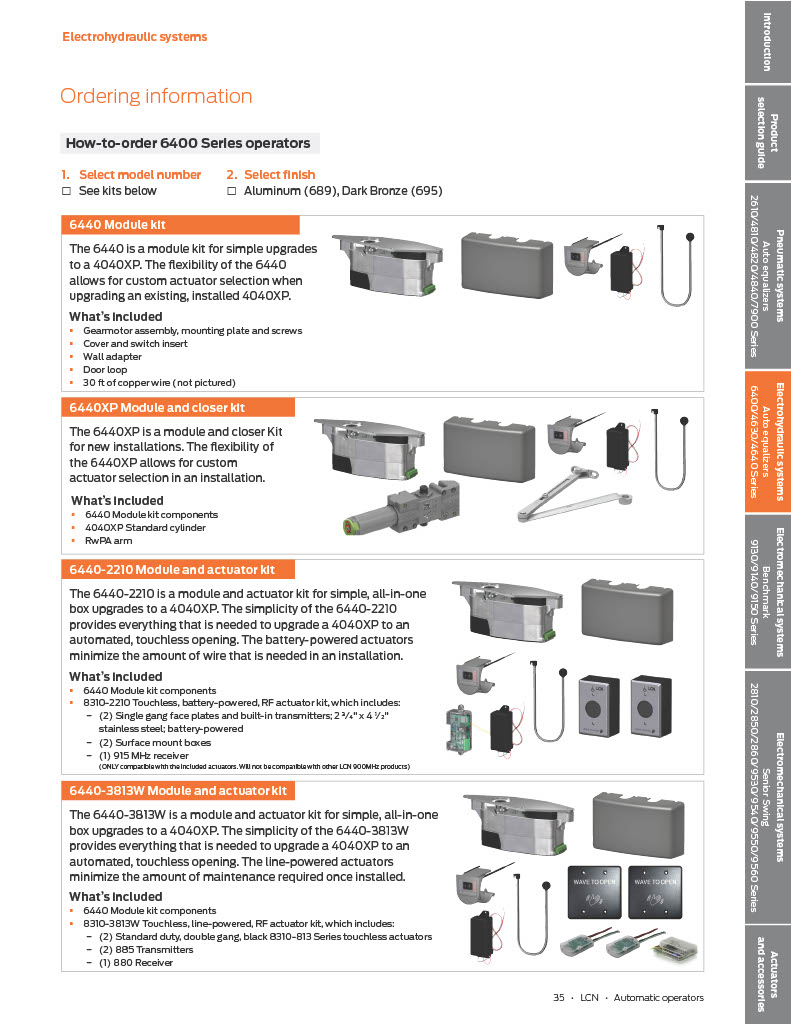

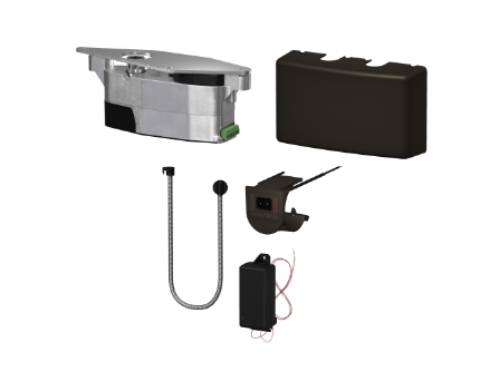

LCN 6440 DB COMPACT Low Energy Auto Operator Module Kit (Conversion Kit Only), Gearmotor Assembly, Mounting Plate and Screws, Plastic Cover, Power Supply, Door Loop, 30' Copper Wire, Dark Bronze Painted Finish
The LCN 6400 COMPACT Series
The LCN 6400 COMPACT Series low-energy operator is a simple and cost-effective solution that enables facilities to automate more openings for touchless access and accessible operation. The modular design is unique and allows the reuse of an existing LCN 4040XP mechanical closer. The electrified module connects with a mounting plate and just four screws and drives open the mechanical closer. The simplicity of this solution reduces the cost, labor and complexity required to automate an opening.
Features & Benefits
Simple and intuitive:
The unique and modular design makes the COMPACT operator easy to install.Motor gearbox assembly connects to a standard 4040XP with a mounting plate and just 4 screwsElectrified module drives open mechanical closerFirst of its kind, modular solution, enables reuse of existing hardware
Cost-effective Solution for Interior Openings:
Modular, intuitive design, minimizes complexity of installation & maintenanceLow voltage design reduces need for skilled labor coordinationFraction of the cost of traditional solutions with features that meet basic requirements of interior, non-latching door
Performance You Can Trust:The COMPACT operator leverages the trusted 4040XP mechanical closerAdjustments can be made to the 4040XP mechanical closerIt can be adjusted normally using the regulation valves for main and latch speedThis enables standardization of maintenance operations

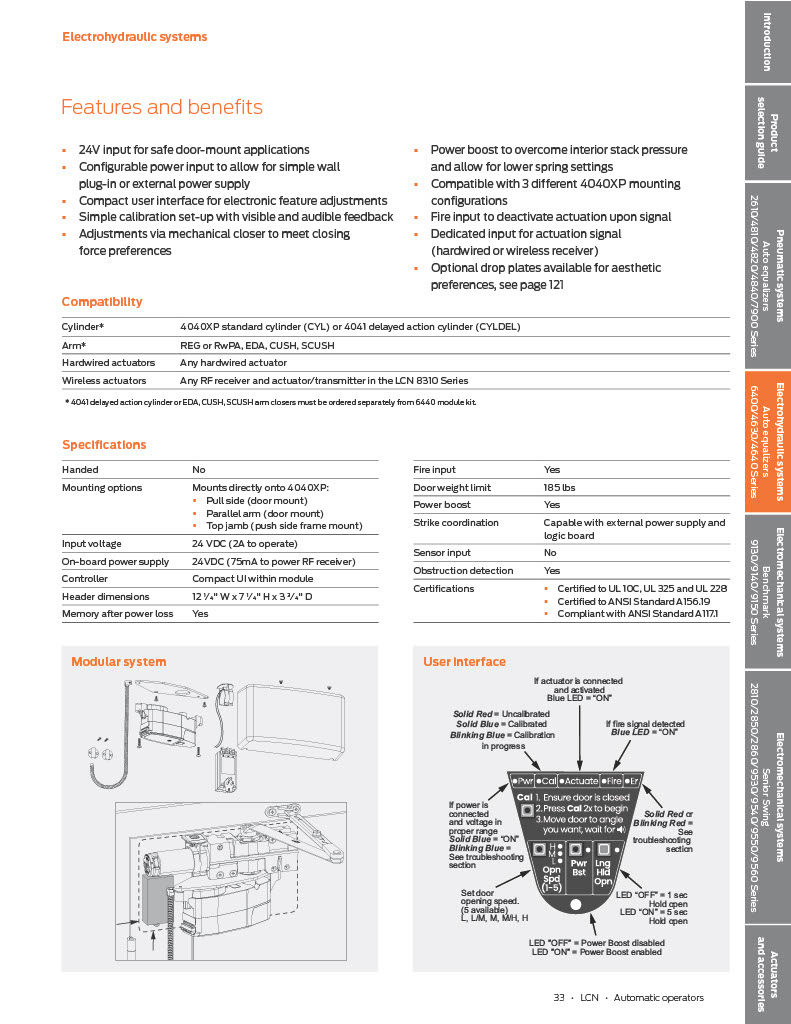

SpecificationsCodes & Standards:Certified to UL10C, UL325 and UL228Certified to ANSI Standard A156.19Compliant with ANSI Standard A117.1
Mechanical Compatibility:Compatible with an LCN 4040XP cylinders with REG or RwPA armsMotor gear box mounts directly onto standard 4040XP mechanical closer with just 4 screwsAdjustments can be made to the 4040XP mechanical closer using the regulation valves for main and latch speed.Can accommodate doors up to 185 lbs.
Electronic Features:
All electronic programming is done via the user interface (UI) on the module*Audible and visual indicators provide feedback through the calibration processElectronic Features include:
*Opening SpeedHold Open DurationPower Boost (On/Off)Motor (On/Off)
Receipt of Fire SignalReceipt of Actuation SignalThe RF receivers and transmitters will come pre-programmed when purchased as part of 6440-3813W or 6440-2210 kits.
Power Management:

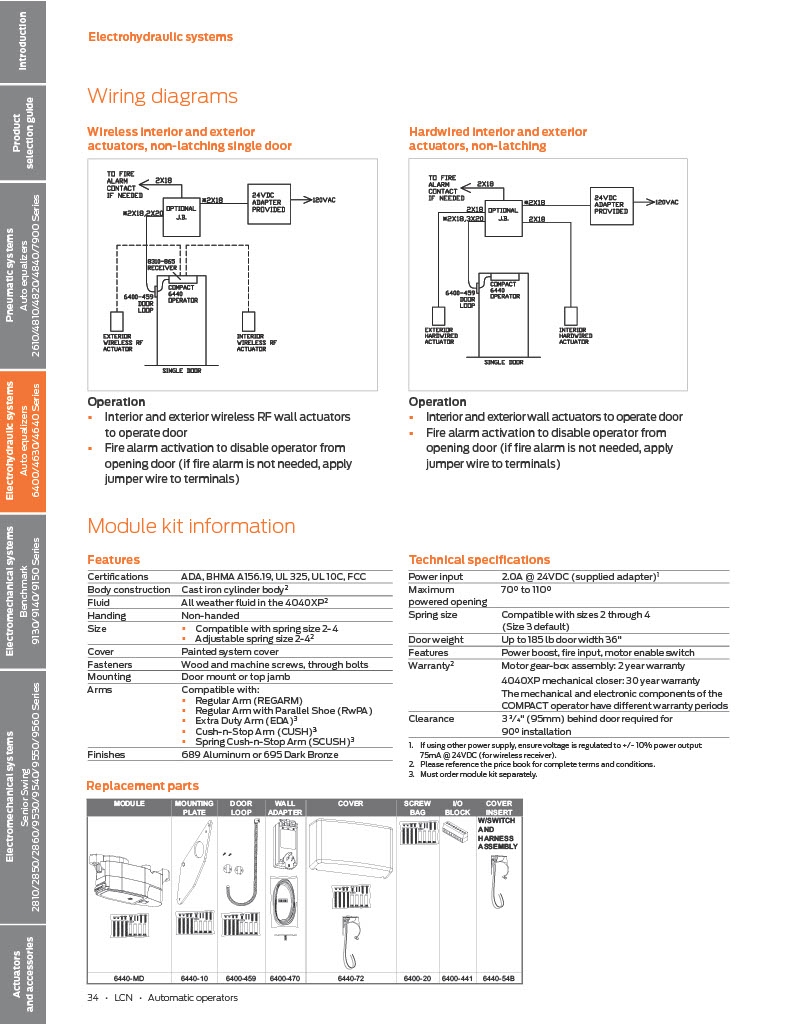

A door loop (included with COMPACT) is used when solution is door mounted. *Input voltage is 24VDCOn-board power supply 75mA @ 24VDC to power wireless receiverA wall adapter that can plug into a standard wall outlet is provided and converts 120V down to 24V. *A power supply, such as the Von Duprin PS902 or the Locknetics LP250 can be used in place of the wall adapter if that is preferred.
Peripherals:
The COMPACT solution has an actuation input and can power a standard RF receiver.*The RF receivers and transmitters will come pre-programmed when purchased as part of 6440-3813W or 6440-2210 kits.*The target application for this product is free-swinging doors; for latching applications, additional hardware is required, such as an electric strike, power supply, and relay/option boards.
Designs & Finishes
Cover is painted aluminum (ALM/ 689) or dark bronze (DRKBZ/ 695)Cylinders and arms are powder coat finish
Mounting/Arm Options
The COMPACT operator is compatible with the standard cylinder and REG or RwPA arms and can accommodate 3 different mounting configurations:
Pull Side (Door Mount)Parallel Arm (Door Mount)Top Jamb (Push Side Frame Mount)
