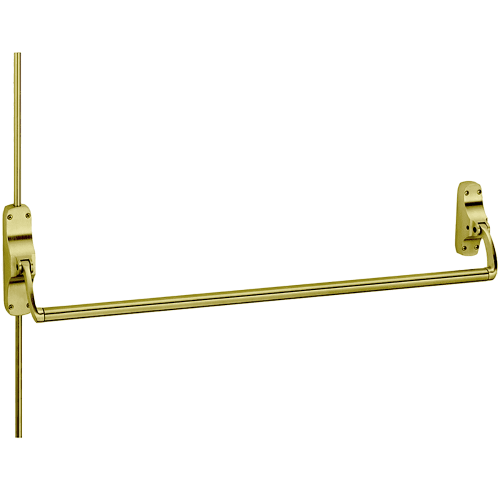

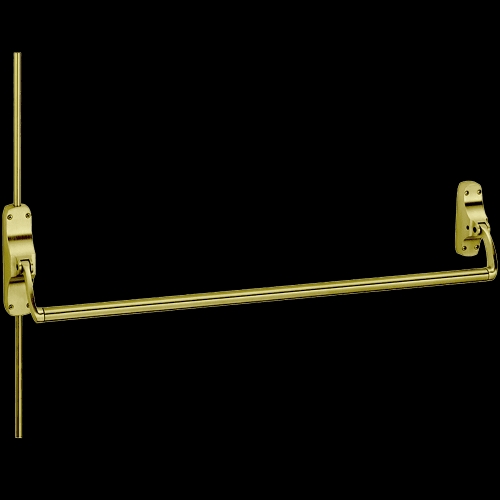

Von Duprin 8827EO Surface Mount Vertical Rod Crossbar Exit Device, For 4' Door

Von Duprin 8827EO Surface Mount Vertical Rod Crossbar Exit Device, For 4' Door - Exit Only

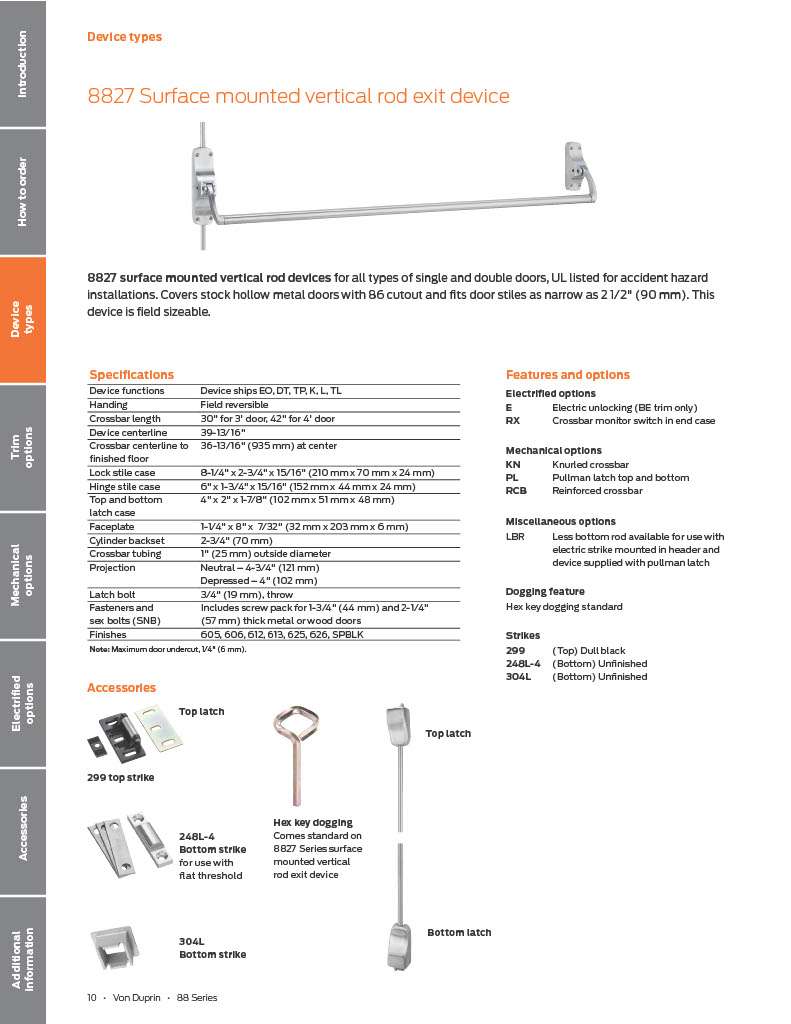

8827 surface mounted vertical rod devices for all types of single and double doors, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 or 161 cutouts and fits door stiles as narrow as 3 1/2" (90mm).

Crossbar length:42" (1067mm) field sizeable

Field reversible for RHR or LHR doors.

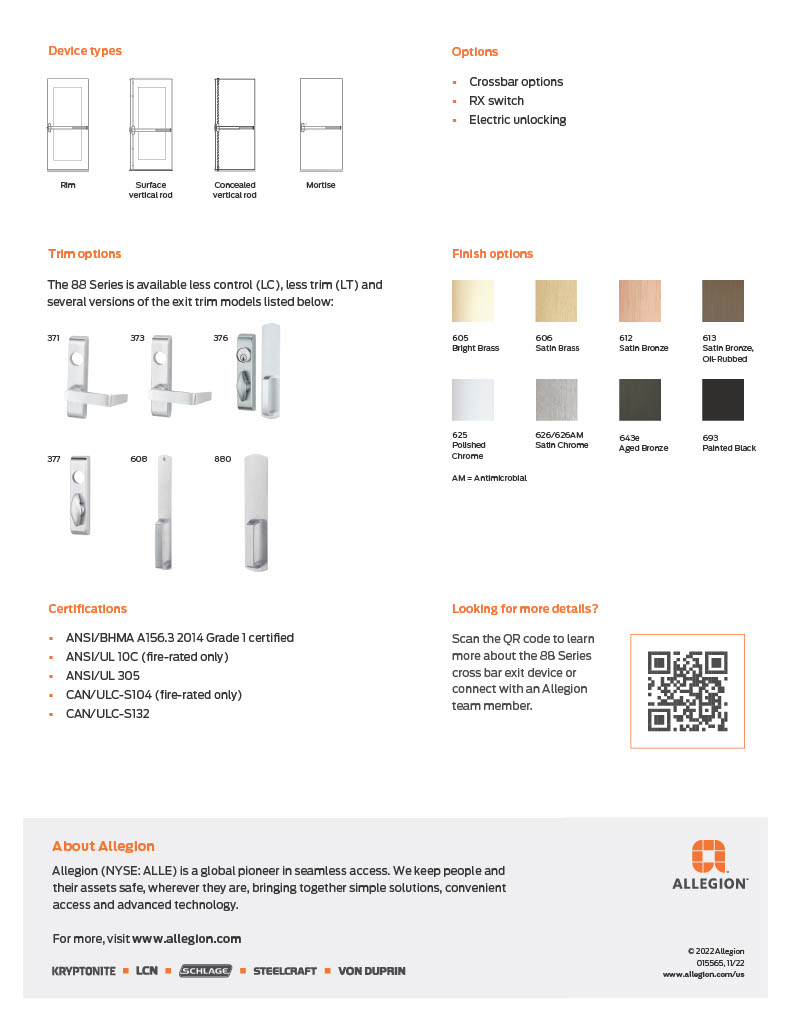

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome.

Dogging Feature:Hex key dogging standard.

Fasteners are included for 1-3/4" (44mm) thick doors.

Latch Bolt:5/8" (16mm) throw latch bolt.

Strikes and Fasteners

Device is furnished standard with 299 (in dull black), 248L-4 and 304L strikes. All necessary mounting fasteners are included.

Dimensions:

Crossbar height to finished floor:36-13/16" (1011mm) at center.

Crossbar projection:neutral 4 7/8" (121mm), depressed 4" (102mm).

Crossbar length: 42" (1067mm) field sizeable.

Lock stile case: 8 1/4" x 2" x 15/16" (210mm x 51mm x 24mm).

Hinge stile case: 6" x 1 3/4" x 15/16" (152mm x 44mm x 24mm).

Crossbar tubing: 1" (25mm).

Top and Bottom latch case:4" x 2" x 1 7/8" (102mm x 51mm x 48mm).

Vertical Rod:1/2" (13mm) tubing.

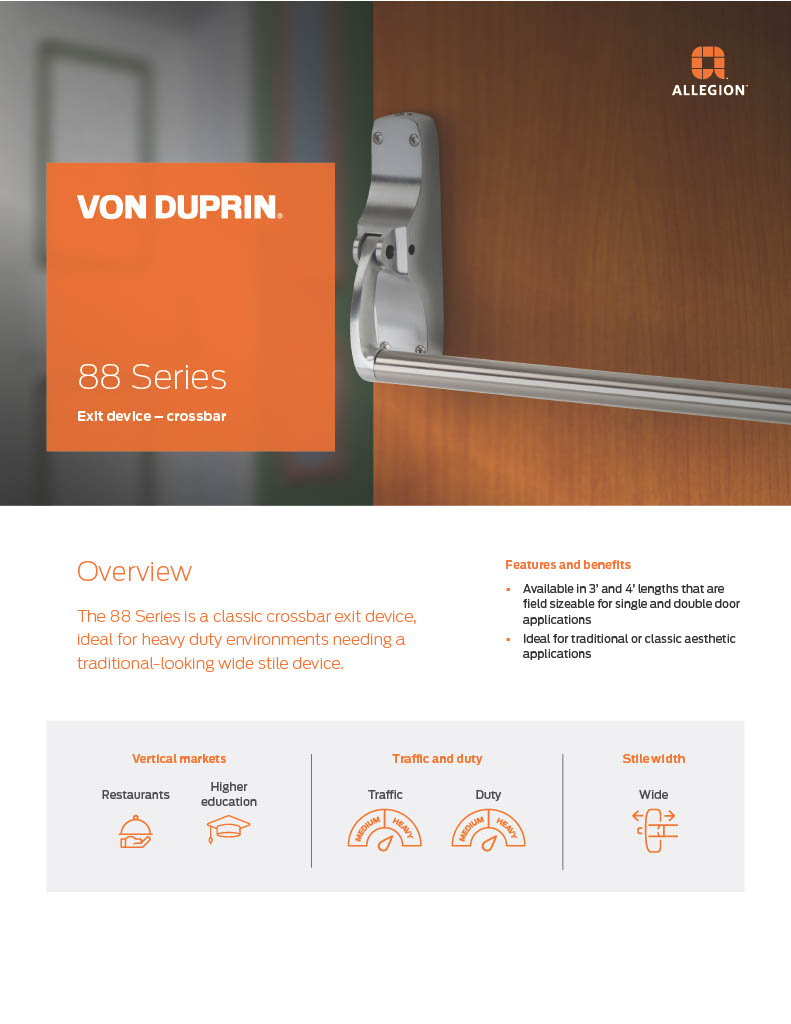

All 88 series exit devices are UL listed from Accident Hazard and Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade 1.

Model:Von Duprin 8827, 8827EO, US3, US4, US10, US10B, US26, US26D
