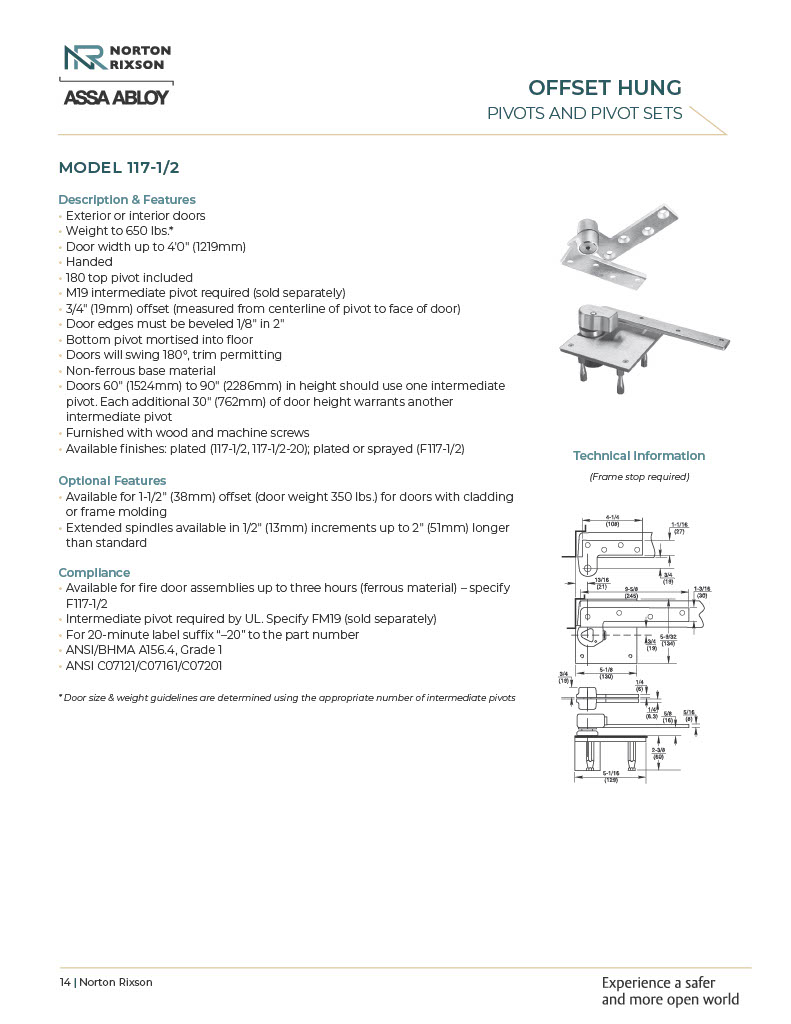

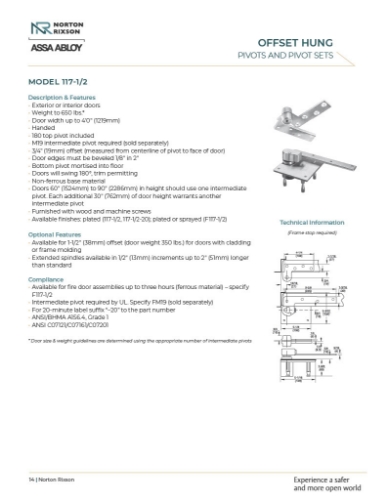

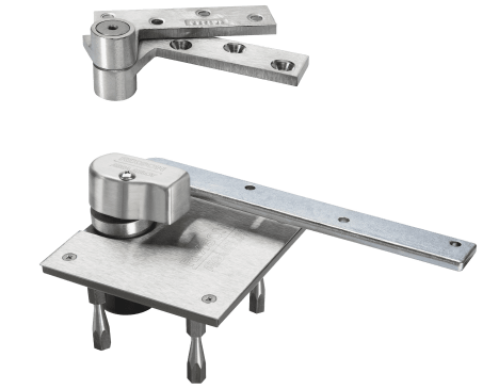

Norton Rixson 117-1/2 626 Pivot Set, 3/4 Offset, Satin Chrome (650 lbs.)

Norton Rixson* 117-1/2 626 Pivot Set, 3/4 Offset, Satin Chrome (650 lbs.)*

Application:

Exterior or Interior DoorsWeight to 650 lbs.*Door Width up to 4'0" (1219mm)HandedHeavy Weight Pivot SetDoor size & weight guidelines are determined using the appropriate number of intermediate pivots

Description/Features:

Standard top pivot 180 includedM19 intermediate pivot required (order separately)Bottom pivot mortised into floorFor 20-minute label suffix “–20" to the part numberNon-ferrous base materialDoors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot3/4" (19mm) offset (measured from centerline of pivot to face of door)Door edges must be beveled 1/8" in 2"Furnished with wood and machine screwsExtended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standardDoors will swing 180 Degree , trim permitting
