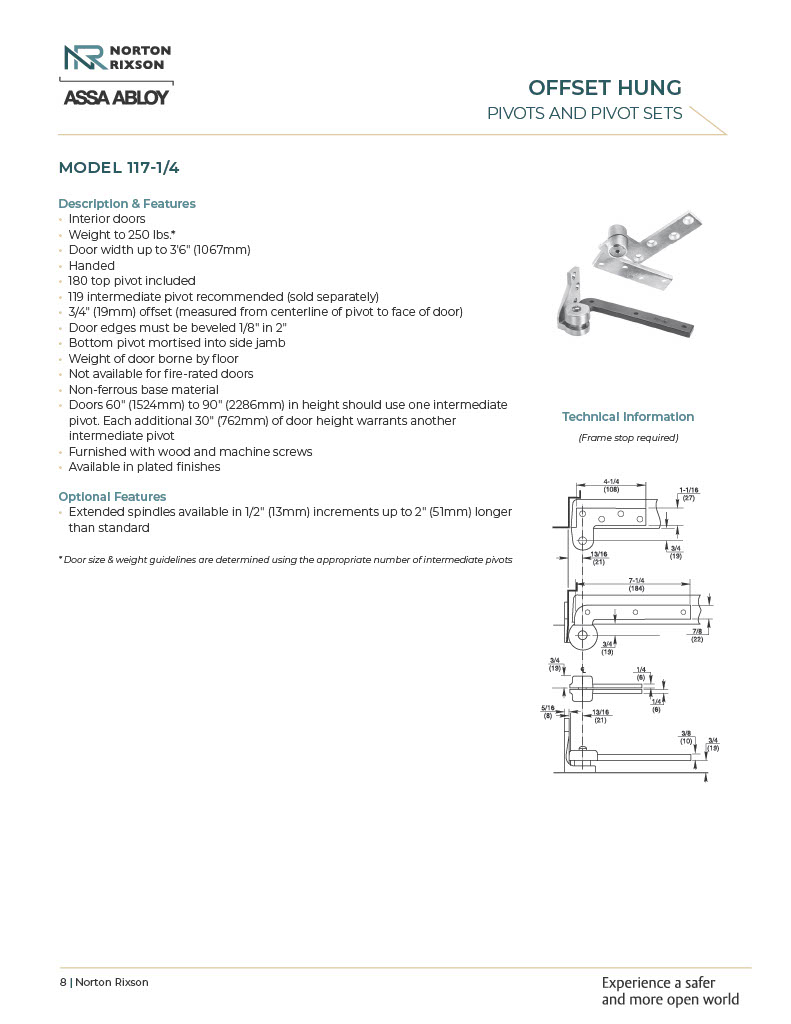

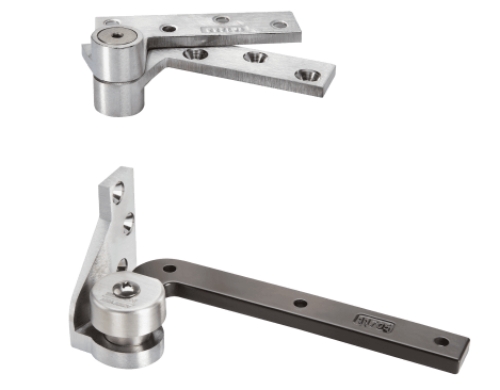

Norton Rixson 117-1/4 626 Pivot Set, 3/4 Offset, Satin Chrome (250 lbs.)

Norton Rixson* 117-1/4 626 Pivot Set, 3/4 Offset, Satin Chrome (250 lbs.)*

Application:

Interior DoorsWeight to 250 lbs.*Door Width up to 3'6"  (1067mm)HandedLight-Duty/Light Weight Jamb Attached Pivot SetDoor size & weight guidelines are determined using the appropriate number of intermediate pivots

Features:

Standard top pivot 180 included119 intermediate pivot recommended (order separately)Bottom pivot mortised into side jambNot available for fire-rated doorsNon-ferrous base materialDoors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot3/4" (19mm) offset (measured from centerline of pivot to face of door)Door edges must be beveled 1/8" in 2"Weight of door borne by floorFurnished with wood and machine screwsExtended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard

Model: 117-1/4 LH 626, 117-1/4 RH 626, 117-1/4L626, 117-1/4-R-626
