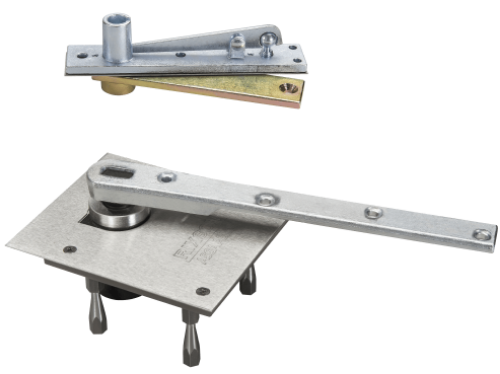

Norton Rixson 117-3/4 Center Hung Pivot Set ( 600 lbs.)

Norton Rixson *117-3/4 Center Hung Pivot Set ( 600 lbs.)*

Application:

Exterior or Interior DoorsWeight to 600 lbs.Door Sizes up to 4'0"x 8'6"* (1219 x 2591mm)Non-handedCenter hung pivots are door hanging means only. To close doors, see floor closer sections.For doors taller than 8'6" use top pivot 345 in lieu of 340

Description/Features:

Standard top pivot 340 includedBottom pivot is mortised into floorPivot point centered in thickness of doorDoor must have radius on pivot edgeHeavy-duty bearingsPivot set features sealed bearings for protection against weather and debrisNot allowed for use on labeled doors and framesFurnished with wood and machine screws

Model:117-3/4-626, 117-3/4-613, 1173/4626, 117 3/4 613

Related Categories

• Pivot Sets, Top & Bottom
