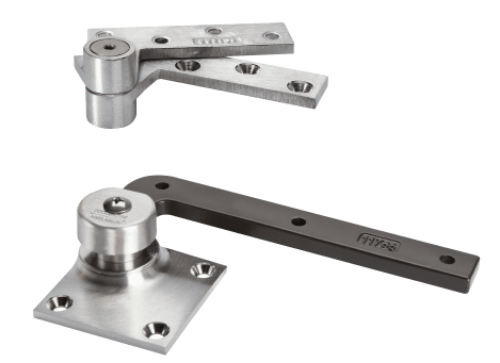

Norton Rixson 117 Pivot Set, 3/4 Offset

Rixon 117 Pivot Set, 3/4 Offset

Application:

Interior Doors

Weight to 300 lbs.*Door Width up to 3'6"  (1067mm) Handed Light-Duty/Light Weight Pivot Set

• Door size & weight guidelines are determined using the appropriate number of intermediate pivots

Description/Features:

Standard top pivot 180 included119 intermediate pivot recommended (order separately)botttom pivot mortised into floorNon-ferrous base materialDoors up to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot3/4" (19mm) offset (measured from centerline of pivot to face of door)Door edges must be beveled 1/8" in 2"Furnished with wood and machine screwsExtended spindles available in 1/2" (13mm increments up to 2" (51mm) longer than standardDoors will swing 180 Degree, trim permitting

Model: Rixon 117 RH 605, 117 RH 606, 117 RH 613, 117 RH 619, 117 RH 625, 117 RH 626, 117 RH,117-RH-605, 117RH606, 117RH-613, 117RH619, 117-RH-625, 117 RH-626, 117RH, Lixon 117 LH 605, 117 LH 606, 117 LH 613, 117 LH 619, 117 LH 625, 117 LH 626, 117 LH,117-LH-605, 117LH606, 117LH-613, 117LH619, 117-LH-625, 117 LH-626, 117LH
