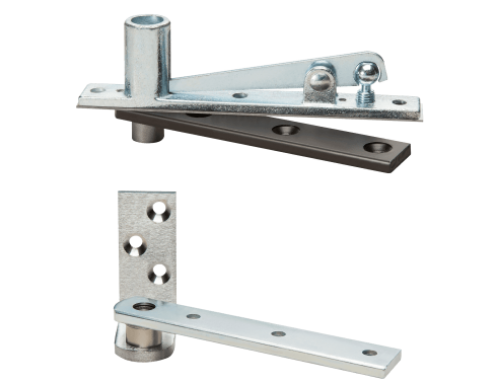

Norton Rixson 127-3/4 Center Hung Pivot Set ( 200 lbs.)

Norton Rixson *127-3/4 Center Hung Pivot Set ( 200 lbs.)*

Application:

Interior DoorsWeight to 200 lbs.Door Sizes up to 3'6"x 8'6" (1067 x 2591mm)Non-handedLight-Duty/Light Weight Jamb Attached Pivot SetCenter hung pivots are door hanging means only. To close doors, see floor closer sections.

Description/Features:

Standard top pivot 320 included Bottom pivot mortised into side jambWeight of door borne by floorPivot point centered in thickness of doorDoor must have radius on pivot edgeNot allowed for use on labeled doors and framesPivot point remains constant at 1-1/4 from the edge of the doorFurnished with wood and machine screws

Model:127-3/4-626, 127-3/4-613, 127-3/4-619, 127-3/4-625, 127-3/4-612, 1273/4626, 127 3/4 613, 1273/4619, 1273/4-625, 127 3/4 612,

Related Categories

• Pivot Sets, Top & Bottom
