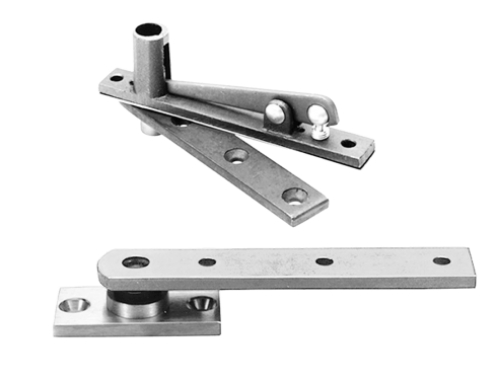

Norton Rixson 128-3/4 Center hung pivot Set ( 250 lbs.)

Norton Rixson 128-3/4 Center hung pivot Set ( 250 lbs.)

Product Details

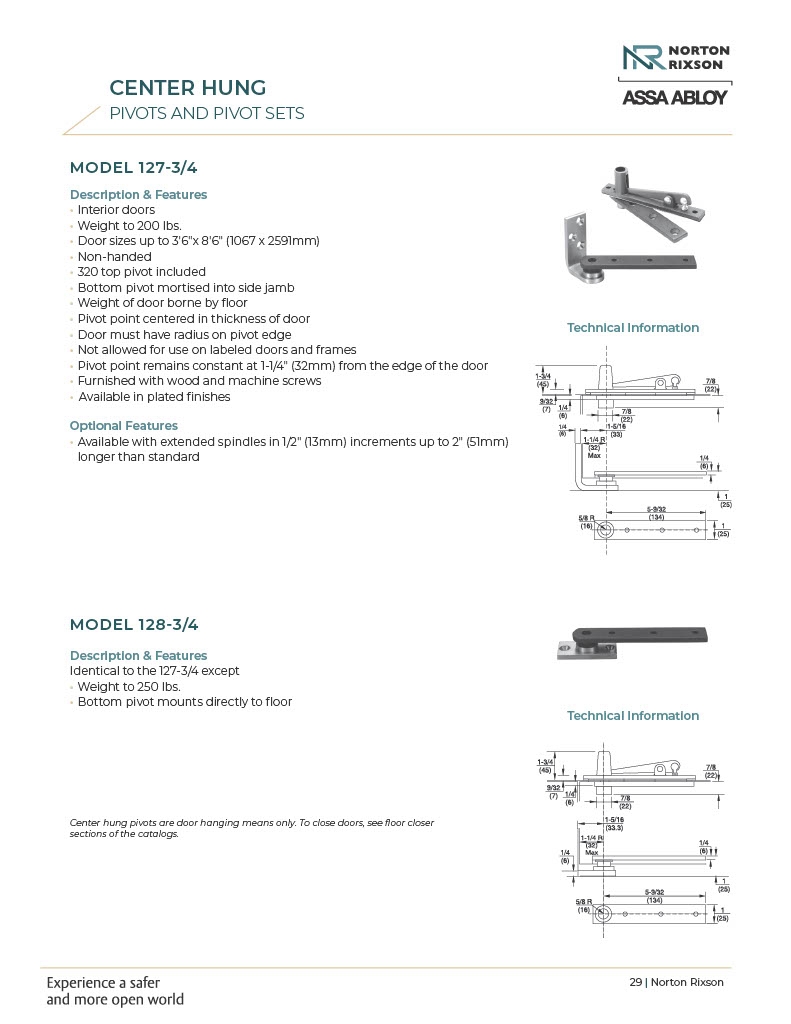

Norton Rixson *128-3/4 Center Hung Pivot Set ( 250 lbs.)*

Application:

Interior DoorsWeight to 250 lbs.Door Sizes up to 3'6"x 8'6" (1067 x 2591mm)Non-handedLight-Duty/Light Weight Pivot SetCenter hung pivots are door hanging means only. To close doors, see floor closer sections.

Description/Features:

Standard top pivot 320 includedBottom pivot mounts directly to floorWeight of door borne by floorPivot point centered in thickness of doorDoor must have radius on pivot edgeNot allowed for use on labeled doors and framesPivot point remains constant at 1-1/4 from the edge of the doorFurnished with wood and machine screws

Model:128-3/4-626, 128-3/4-613, 127-3/4-619, 128-3/4-625, 128-3/4-612, 1283/4626, 128 3/4 613, 1283/4619, 1283/4-625, 128 3/4 612, 128-3/4-605, 128-3/4-606

Norton Rixson 128-3/4 Center hung pivot Set ( 250 lbs.)

Name: Norton Rixson 128-3/4 Center hung pivot Set ( 250 lbs.)
SKU: 128-3/4
Price: 292.90 USD
Availability: InStock

SKU: 128-3/4

In Stock

Chat

$292.90

About this item

Resources

**View**

Norton Rixson *128-3/4 Center Hung Pivot Set ( 250 lbs.)*

Application:

Description/Features:

Model:128-3/4-626, 128-3/4-613, 127-3/4-619, 128-3/4-625, 128-3/4-612, 1283/4626, 128 3/4 613, 1283/4619, 1283/4-625, 128 3/4 612, 128-3/4-605, 128-3/4-606
