Norton Rixson 147 Pivot Set, 3/4 Offset

Product Details

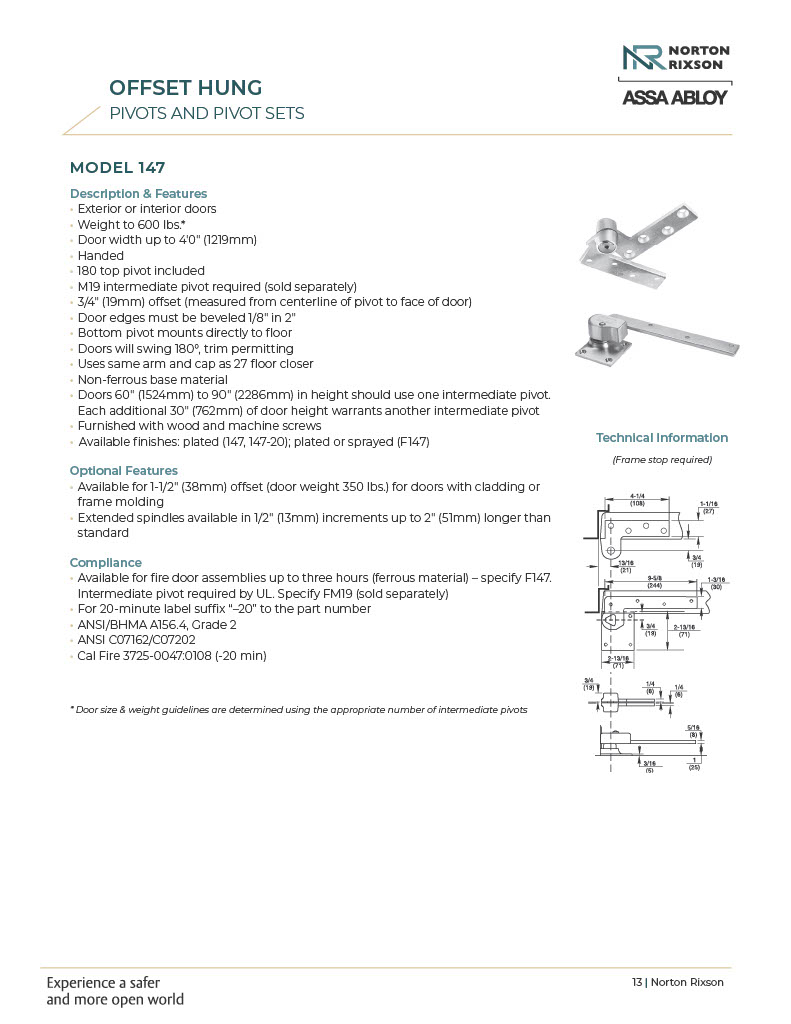

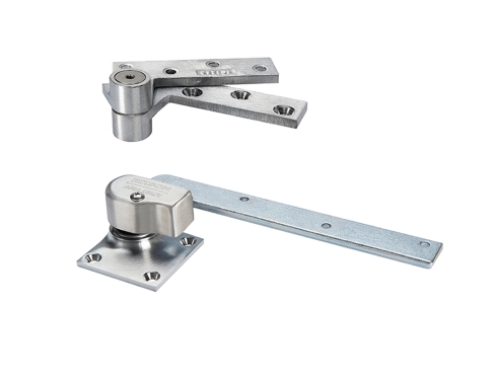

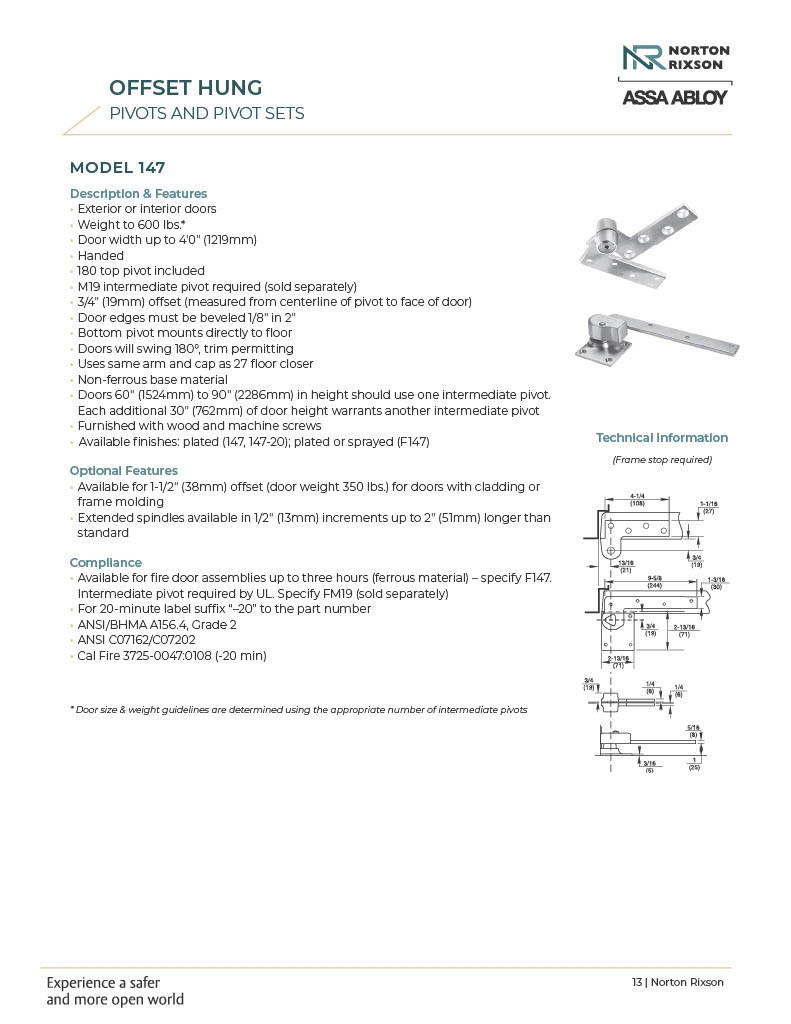

Rixon 147 Pivot Set, 3/4 Offset

Application:

Exterior or Interior DoorsWeight to 600 lbs.*Door Width up to 4'0" (1219mm)HandedStandard-Duty Pivot SetDoor size & weight guidelines are determined using the appropriate number of intermediate pivots

Description/Features:

Standard top pivot 180 includedM19 intermediate pivot required (order separately)Bottom pivot mounts directly to floorUses same arm and cap as 27 floor closerAvailable for fire door assemblies up to three hours (ferrous material) – specify F147. Intermediate pivot required by UL. Specify FM19 (order separately)Non-ferrous base materialDoors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot3/4" (19mm) offset (measured from centerline of pivot to face of door)Door edges must be beveled 1/8" in 2"Furnished with wood and machine screwsExtended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standardDoors will swing 180 Degree , trim permitting

Model: Rixon 147 RH 605, 147 RH 606, 147 RH 613, 147 RH 625, 147 RH 626, 147 RH,147-RH-605, 147RH606, 147RH-613, 147-RH-625, 147 RH-626, 147RH, Lixon 147 LH 605, 147 LH 606, 147 LH 613, 147 LH 625, 147 LH 626, 147 LH,147-LH-605, 147LH606, 147LH-613, 147-LH-625, 147 LH-626, 147LH
