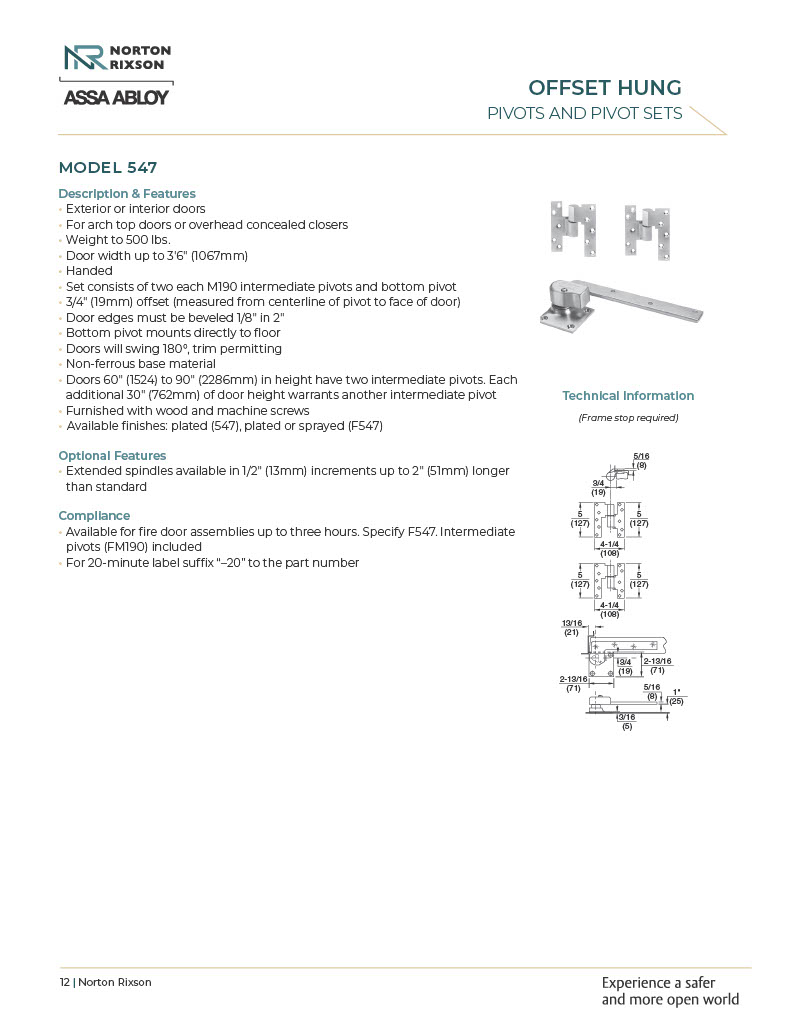

Norton Rixson 547 626 Pivot Set, 3/4 Offset, Satin Chrome

Rixon 547 626 Pivot Set, 3/4 Offset, Satin Chrome

Application:

Exterior or Interior DoorsFor Arch Top Doors or OverheadConcealed ClosersWeight to 500 lbs.Door Width up to 3'6" (1067mm)Handed

Description/Features:

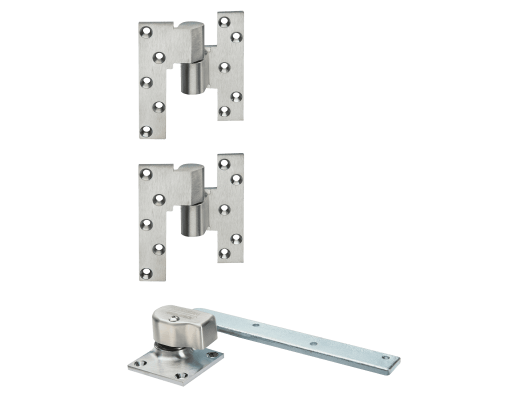

Set consists of two each M190 intermediate pivots and bottom pivotBottom pivot mounts directly to floorNon-ferrous base materialDoors 60" (1524) to 90" (2286mm) in height have two intermediate pivots. Each additional 30" (762mm) of door height warrants another intermediate pivot3/4" (19mm) offset (measured from centerline of pivot to face of door)Door edges must be beveled 1/8" in 2"Furnished with wood and machine screwsExtended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standardDoors will swing 180 Degree, trim permitting

Model:547626, 547-626, 547RH626, 547H626, 547-RH-626, 547-LH-626,
