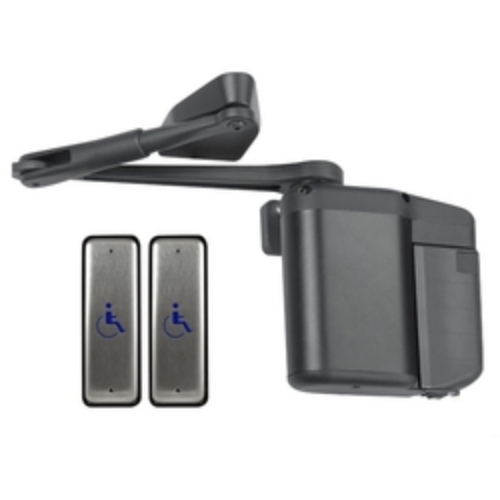

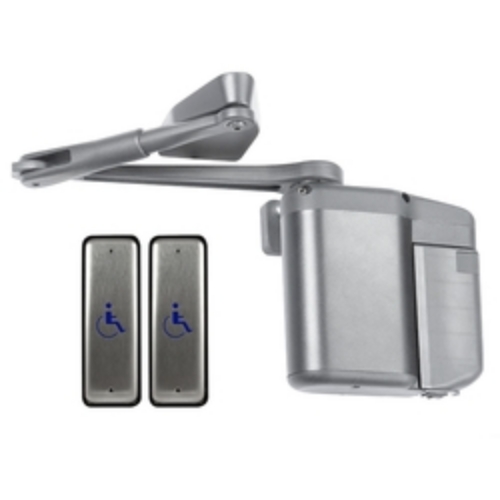

Norton Rixson 5813xNPB, ADAEZ PRO Door Operator (Pull Side, Parallel Arm), ADA1015P Kit and Two Narrow Style Push Buttons

Norton Rixson 5813xNPB, ADAEZ PRO Door Operator (Pull Side, Parallel Arm), ADA1015P Hardwire Kit and Two Narrow Style Push Buttons

PRO PLUS: MODELS 5833 (PUSH) - 24VDC powered - continuous automatic use- Connects to ANY 24VDC power supply- Commercial applications requiring Push & Go, Power Close, and Electric Lock Interface.- Ideal for openings requiring continuous automatic use or automatic use more than 25% of the time Features:Regenerative drive or continuous duty operationNon-handed95 deg. door openingPush and pull side mountingRadio frequency stainless steel wall switchesIntegral RF receiverShock absorbing arm24VDC input portADA1015P hardware kitAuxiliary activation input portPatented auto-tune feature2 year limited warranty How It Works:

How does the 5800 Series Pro work without electrical power

The 5800 Series Pro is an extreme duty, low energy operator designed for moderate to high traffic manual opening applications that occasionally requires powered operation.  A regenerative drive system charges an onboard battery pack eliminating the need for electrical power. The 80/25 guidelines should be applied when ordering this operator. It is recommended that the 5800 Series Pro be used on a door that gets approximately 80 manual cycles or more per day and is used 25% or less automatically.  When applied using the 80/25 guideline this operator will self-generate all the power it needs to keep its field replaceable, onboard, battery pack charged for up to 12 years and in some cases longer.

A fully charged battery has the capability to open a door up to 2000 times in a row, generously allowing for periodic fluctuations from 80/25 guidelines with little impact on the product's overall usability.  Example: 30% automatic use for one day is not a problem, as long as that level of automatic use is not sustained.

The 5800 Series Pro can be used outside of the 80/25 parameters.  Simply plug the unit into a common 110 VAC electrical outlet using our ADA1015P hardware kit option. The hardware kit is a low voltage plug in transformer and can be added to existing installed field units.

Functions:*Adjustable Hold Open- Amount of time a door will stay in the full open position after an activationDynamic Braking- Braking or slowing of the door if excessive door speed occurs resulting from a wind load or an abusive open conditionEmergency Interface Relay- Door closes and ignores any activation input until signal is discontinuedExecutive Mode Feature- When door receives activation signal it opens and remains open until either a second signal is received or door is manually moved in closing directionLatch Assist- At closed position, after an activation, the door is pulled in- After the door has closed, the door is pulled in to assist with latch release/engagementObstruction Detection- Open - door closes if it hits an obstruction  while opening- Close (Stop on Stall) - door will stop once it hits  an obstruction and will rest against the  obstruction until obstruction is removedOn/Off Switch- Disables operator activationOpen Delay- Delays operator opening for locking hardwareOutside Wall Switch Disable- When contact is closed, outside wall switch is disabledPower Close- Additional force to assist door closing between90 deg. and 70 deg. and 10 deg. and 0 deg.Push & Go- As the door is manually opened, the operator "senses" movement and opens door to the fullopen positionSingle Relay Output*- Closes to indicate a valid activation *Only available with Wireless Interface Module (WIM)  (WIM) ordered separately

Certfications:ANSI/BHMA A156.19 certifiedETL tested to UL/cUL 325 standard for automatic operatorsComplies with requirements for Americans with Disabilities Act (ADA)UL10C positive pressure 90 minuteManufactured in an ISO 9001 and ISO 14001 certified facilityVerified by GreenCircle to offer these energy savings as compared to similar products:- 5800 Series (plug-in) - 91% efficiency- 5800 Series (wireless) - 100% efficiency Models: Norton 8513 689, Norton 5831XNPB 689, 693T

Provide low energy automatic door operator complying with requirements of ANSI A156.19 Provide an operator with adjustable opening and closing forces that meet the provisions of ANSI A117.1 and the Americans with Disabilities ActProvide an operator with a regenerative drive system which charges the on-board battery pack when unit is operated manually and which requires no external electrical powerProvide an operator that can connect to ANY 24VDC power supply to keep an on-board battery pack fully charged eliminating the need for manual traffic charging. When used with 24VDC input the operator shall supply up to 2000 automatic operations upon loss of building powerProvide an operator which has been verified by GreenCircle to offer these energy savings as compared to similar products: - 5800 Series (plug-in) - 91% efficiency - 5800 Series (wireless) - 100% efficiencyProvide an operator which, upon installation, will determine door size and weight and automatically tune controller to operate within ANSI A156.19 and A117.1 standards. Operator shall also have the following adjustable functions: - Opening/closing speed - Hold-open time - Close check - Opening/closing forceProvide operator with on-board diagnostics which will continually maintain control of door speed in wind or abusive environment conditionsProvide operator that will continue closing door within ANSI A156.19 and 117.1 requirements without any external power supplied. Upon meeting an obstruction during the opening cycle the door shall remain under power for one second and then close under spring force; if the door meets an obstruction during closing, the door will maintain a closing force of 8 lbs or lessProvide unit capable of operating doors up to 48" wide, weighing up to 250 lbsProvide unit that will operate in climates with temperatures above -40 deg. F and has a two year warrantyProvide operator with two stainless steel, jamb mounted, wall switch transmitters in choice of 1-3/4" x 4-3/4" narrow, 4-1/2" x 4-1/2" square styles, or 5-1/4" x 511/4" wave-to-open switch style, with required signage. Locate wall switches as directed by architect and within ANSI A156.19 and 117.1 guidelinesProvide operator which utilizes a triangular hardened steel output shaft to connect arm with a two piece tapered coupling for superior slip resistanceProvide operator and wall switch transmitter with circuit boards that have been specially coated to resist moisture and humidity making the electronics weather resistantProvide operator with integral heavy duty cast aluminum shock absorbing arm, which when fully extended is in full tension eliminating the need for an auxiliary door stopProvide operator with two architecturally finished covers and black powder coated frame, arms and mounting bracketsBlack (BHMA 693T)Aluminum (BHMA 689)Provide an operator incorporating "Push & Go" feature to allow door movement to activate door open cycle or recycle door (PRO PLUS only)Provide an operator incorporating "Power Close" feature to utilize the motor to close a door help open by wind, stack pressure or latchbolt (Models 5833, 5813 only)Provide an operator incorporating "Latch Assist" feature to apply pulsed power in the closing direction to assist in latching and unlatching of the door
